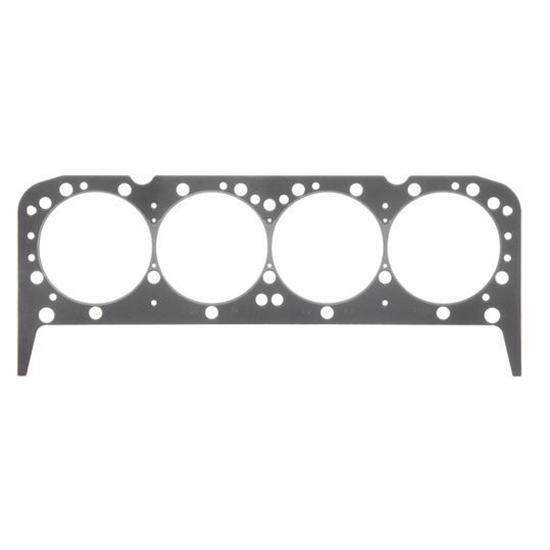

Fel-Pro P1044 S/B Chevy 265-400 Steel Ring Head Gasket .051 Inch Thick




These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Pre-flattened steel wire
Nominal compression thickness: .041"
Compressed volume: 9.1 cc
4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Pre-flattened copper wire
Nominal compression thickness: .039"
Compressed volume: 8.9 cc
Recommended for '86-'91 Corvette aluminum heads. Max 4.155" bore.
4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Pre-flattened steel wire
Nominal compression thickness: .041"
Compressed volume: 9.2 cc
4.19" bore gaskets can be used on 400 small block race engines with up to 4.155" max bore with minimal chamfer, without steam holes
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Nominal compression thickness: .041"
Compressed volume:  9.3 cc
Recommended for '86-'91 Corvette aluminum heads. Max 4.155" bore.
4.200" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Embossed shim with precision rubber coating
4.100" gasket bore
Nominal compression thickness: .015"
Compressed volume: 3.2 cc
Not for use with small block 400. Extra thin to increase compression.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Multi-layer
4.100" gasket bore
Nominal compression thickness: .040"
Compressed volume: 9.0 cc
Not for use with small block 400.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Multi-layer
Nominal compression thickness: .041"
Compressed volume: 9.2 cc
Big bore multi-layer 400 small block Chevy
4.165" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
Speedy Tip for Proper Head Gasket Seal (GIF)







These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.
Gaskets are sold each
Small Block 400 with steam holes aluminum block and heads or cast-iron heads.
4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
When  using aluminum heads, we recommend gaskets with soft copper wire  rings (such as 344-1010). This ensures that the aluminum head is not  "scarred" by the combustion seal. Shim style 344-1094 will also work  well with aluminum heads.
Head Gasket Application (JPEG)
