FAST 30227-KIT EZ-EFI Self Tuning Fuel Injection Master Kit

Free Shipping Free Shipping
Specs
GTIN Code:
036584203568
FAST 30227-KIT EZ-EFI Self Tuning Fuel Injection Master Kit
VIDEO
FAST 30227-KIT EZ-EFI Self Tuning Fuel Injection Master Kit

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (9)

What's in the Box

Info

In the past, carburetor-to-EFI conversion was no picnic. At the very least, you would need a laptop and significant tuning experience. But thanks to FAST™ engineers, those days are over. With the new EZ-EFI® Self Tuning Fuel Injection System, you get patent-pending EFI system technology that does all the work for you. Simply hook it up, answer the basic setup Wizard questions on the included hand-held display, and the system tunes itself as you drive!

The new EZ-EFI® Self Tuning Fuel Injection System provides you with the complete EFI system package, including the ECU, wide-band O2 sensor, wiring harness, fuel injectors, an optional fuel pump kit and other assorted components, including the innovative 4150 Throttle Body from FAST™. This cast throttle body gives you the total package for your existing 4150-type manifold and comes with everything, including the appropriate fuel injectors and fuel rails.

  • Self-tuning system — NO tuning experience or laptop needed
  • Complete system includes mini ECU, wide-band O2 sensor, wiring harness, injectors, fuel pump kit & 4150 throttle body
  • 4150 throttle body works with original carb-style linkage & accepts all OEM sensors
  • Bolts on to any engine under 600 hp, regardless of brand or size; the perfect choice for street rods & muscle cars
  • Easy-to-use setup Wizard provides a comprehensive walk-through & system tunes itself

910-30227 Instructions (PDF)

Tech Bulletin (PDF)

Application

Regardless of your brand or size, this system bolts-on easily to any carbureted engine with up to 600 horsepower – NO manifold replacement needed. In addition to matching any carbureted manifold, the EZ-EFI® Self Tuning Fuel Injection System also works with your original carbstyle throttle linkage and is ready to accept all OEM sensors. The EZ-EFI® can be installed easily in an afternoon and is a "must have" for your street rod or muscle car.

Specs

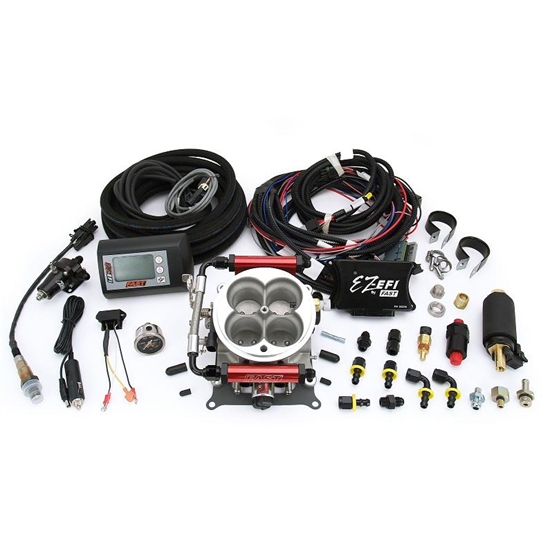

Includes all of the following:
  • Throttle Body Assembly (Throttle Body, Fuel Injector & Sensor) & Gasket
  • EZ-EFI® Control Unit
  • Hand-Held Control Module, Cable & Power Adaptor
  • Coolant Temp Sensor 3/8” NPT (1/2” NPT Adaptor Included)
  • Wide-Band O2 Sensor, Bung & Plug
  • Wiring Harness
  • EZ-EFI® 600 HP Fuel Pump Kit
  • EZ-EFI® Fuel Pump Hose & Fitting Kit

Warranties

Click Here to view the limited lifetime warranty.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dunegoon
Verified Purchaser
Verified Reviewer
Roy Utah

Awesome!

June 12, 2016
Came quickly and great product.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

9 questions : 9 answers

1 answers

Will this be sufficient for a turbo? I am looking for an efi kit that will make my carberated ford ready for a turbo as far as the fuel system.

Gerald198
September 28, 2014

Will this be sufficient for a turbo? I am looking for an efi kit that will make my carberated ford ready for a turbo as far as the fuel system.

Answers

September 29, 2014
EricM
You may want to visit with FAST directly about using this kit with a turbocharger. We do not have experience using this kit with forced induction.
1 answers

smog leagel for calif.

aafred
June 01, 2014

smog leagel for calif.

Answers

June 02, 2014
EricM
No this is not legal for use in California. We do not offer a fuel Injection system that meets California emission regulations.
1 answers

I have a 99 vortec 383 with a crane 268 cam i now have a tbi injection system out of a 88 chev van running it. i have it in a 1983 elcamino witrh 700r4 trans it runns rich at idle what manifold would you tink I should run with a fast injection system

July 25, 2011

I have a 99 vortec 383 with a crane 268 cam i now have a tbi injection system out of a 88 chev van running it. i have it in a 1983 elcamino witrh 700r4 trans it runns rich at idle what manifold would you tink I should run with a fast injection system

Answers

July 27, 2011
John
This fuel injection system is the answer to an easy to use injection system and with a Vortec engine would work well with intakes such as part # 91011250 or 3257516.
1 answers

need intake suggestion, 454 BB .030 over,10:1 comp., msd ignition,extreme energy cam 270 510 lift,110 lobe sep.,rpm range 1500-5400,dur. @ 50:218 in./224 ex., I am actually de-tuning from a 600 lift to something more drivable.

Bighead
New Orleans, low flat and humid!
January 25, 2016

need intake suggestion, 454 BB .030 over,10:1 comp., msd ignition,extreme energy cam 270 510 lift,110 lobe sep.,rpm range 1500-5400,dur. @ 50:218 in./224 ex., I am actually de-tuning from a 600 lift to something more drivable.

Answers

January 25, 2016
Eric
Expert
If you use a throttle body fuel injection system like this and are looking for driveability then a dual plane intake is the way to go. An Edelbrock performer intake 3252161 would be my recommendation. If you want a little more performance and sacrifice a little low end torque the Performer RPM air gap 3257561 for oval port or 3257562 for rectangular port heads would be a good choice.
1 answers

with this product can I get rid of my ignition box and this controls timing and everything or do I need it

jason
February 01, 2016

with this product can I get rid of my ignition box and this controls timing and everything or do I need it

Answers

February 02, 2016
Zach
Expert
This unit does not control timing. Your ignition system is completely independent of the FAST system other than the RPM signal that it needs to read.
1 answers

What else will I need to purchase to install this kit. Does it come with hi pressure pump and lines?

Ford guy
Idaho
March 28, 2016

What else will I need to purchase to install this kit. Does it come with hi pressure pump and lines?

Answers

March 29, 2016
John
Expert
This Fast Master Kit comes with the pump, hose, and fittings that is sufficient for most applications. Works on standard 4 barrel intake or with an adapter if needed.
1 answers

Will this kit work for a Dodge 225 slant six or is there something that will work on my truck 225 slant 6 automatic 2 wheel drive

Bob
Manitoba Canada
March 31, 2016

Will this kit work for a Dodge 225 slant six or is there something that will work on my truck 225 slant 6 automatic 2 wheel drive

Answers

March 31, 2016
John
Expert
This kit can be used on almost any engine but require an intake manifold which accepts a squarebore 4 barrel carburetor or an adapter with the standard 4 barrel mount pattern. On your 225 it may be an over kill situation but with the self learning mode should be able to adjust the fuel air mixture to make it run correctly.
1 answers

Do I need a return line to my gas tank? Is a 3/8" feed sufficient?

Bigfoot
August 06, 2016

Do I need a return line to my gas tank? Is a 3/8" feed sufficient?

Answers

August 09, 2016
Zach
Expert
Yes this system does need to have a return line. 3/8" hose should be sufficient.
1 answers

Do you have a part number for an adapter so that the throttle body can bolt onto a stock 4 barel rochester quadrajet manifold?

Mark
calgary
November 07, 2016

Do you have a part number for an adapter so that the throttle body can bolt onto a stock 4 barel rochester quadrajet manifold?

Answers

November 07, 2016
Eric
Expert
Yes we offer adapter 3252696 which would adapt this throttle body to your stock Quadrajet intake manifold.
