F-Body LS1 High Mount Alternator Relocation Bracket

SAME DAY SHIPPING! Order within the next 9 hours 1 minute and receive same day shipping

Free Shipping Free Shipping
F-Body LS1 High Mount Alternator Relocation Bracket
F-Body LS1 High Mount Alternator Relocation Bracket
F-Body LS1 High Mount Alternator Relocation Bracket

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

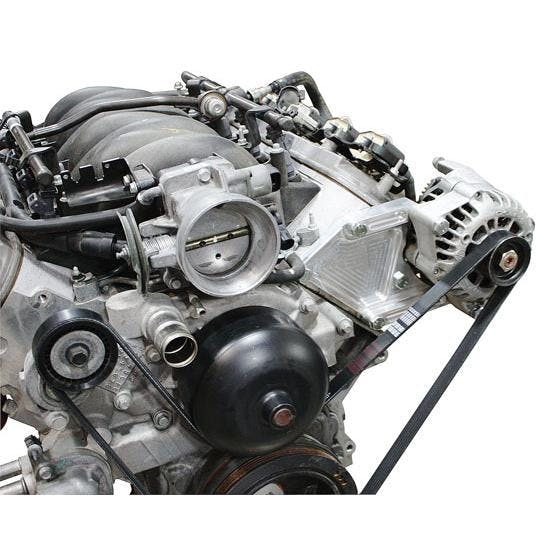

If you want to get rid of your power steering and move the alternator up to the driver side head, this is the bracket for you. It allows you to retain your original F-body alternator, balancer, A/C bracket and compressor.

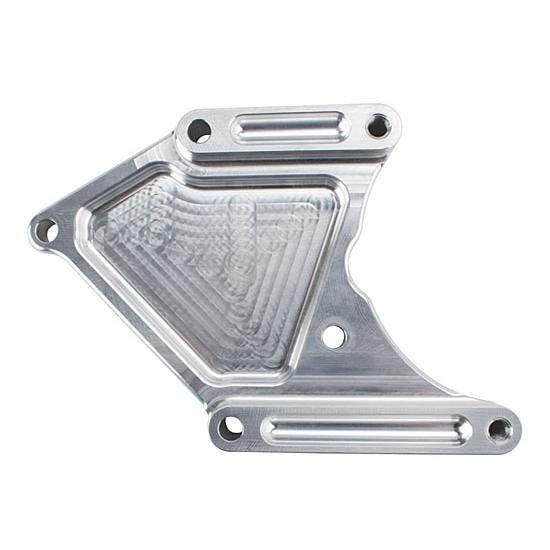

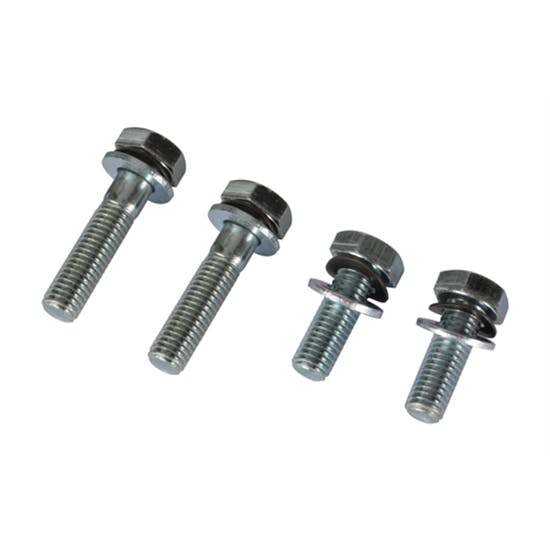

Includes a billet aluminum bracket, belt and hardware.

Item Details

Fits LS1 F-Body Front Accessories

Specs

  • Centerline of water pump pulley to outside edge of alternator = 15.25"

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Buickgs400
Verified Purchaser
Taberg, NY

Ls1 high mount kit

April 20, 2014
Bolts right on and lined up perfect. Very easy and works great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

will this bracket work with tall fabricated valve covers and stock ls1 alternator?

corymacknight
ct
April 02, 2015

will this bracket work with tall fabricated valve covers and stock ls1 alternator?

Answers

April 02, 2015
EricM
This alternator bracket should clear the taller fabricated valve covers as long as they don’t extend forward any further and as long as you use the F-body alternator.
1 answers

so the belt this comes with is the belt used wirth out power steeering

ls1man
May 26, 2013

so the belt this comes with is the belt used wirth out power steeering

Answers

May 28, 2013
Jason
Yes, the belt included is to be used with out power steering
1 answers

will this work for an o4 vette ls engine and no idler pulley is needed

gene
astor flordia
July 03, 2015

will this work for an o4 vette ls engine and no idler pulley is needed

Answers

July 06, 2015
Craig
Expert
This high mount alternator bracket is going to be for the LS engines out of the F-body and its accessories. This will not work with the Corvette accessories as they are different. Sorry we do not offer the correct relocation bracket for you.
1 answers

hi im from australia do you know if this will suit a commodore ls1 engine. 2004 or what dimensions for the alternator bolts and dimensions of the adaptor plate. thanks grant

grant
sydney australia
July 20, 2015

hi im from australia do you know if this will suit a commodore ls1 engine. 2004 or what dimensions for the alternator bolts and dimensions of the adaptor plate. thanks grant

Answers

July 20, 2015
Eric
Expert
All of the engines from GM Holden vehicles built in Australia and New Zealand use different accessories than the F-body LS-1 engines. You will most likely be looking for relocation brackets that are compatible with GTO LS engines. That was the only GM Holden produced vehicle with an LS engine that was commonly sold in the US. Sorry we do not offer the correct relocation bracket for you.
Page 1 of 1
