EngineQuest TC351A EQ 302-351W Ford Timing Cover

SAME DAY SHIPPING! Order within the next 3 hours 11 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Gasket(s) Included:
No
Hardware Included:
No
Mounted Length:
2.09
Notes
Fits '66-'84 289/302/351W with dipstick hole and fuel pump mount pad in cover. The dipstick hole can be covered with a plug (included).

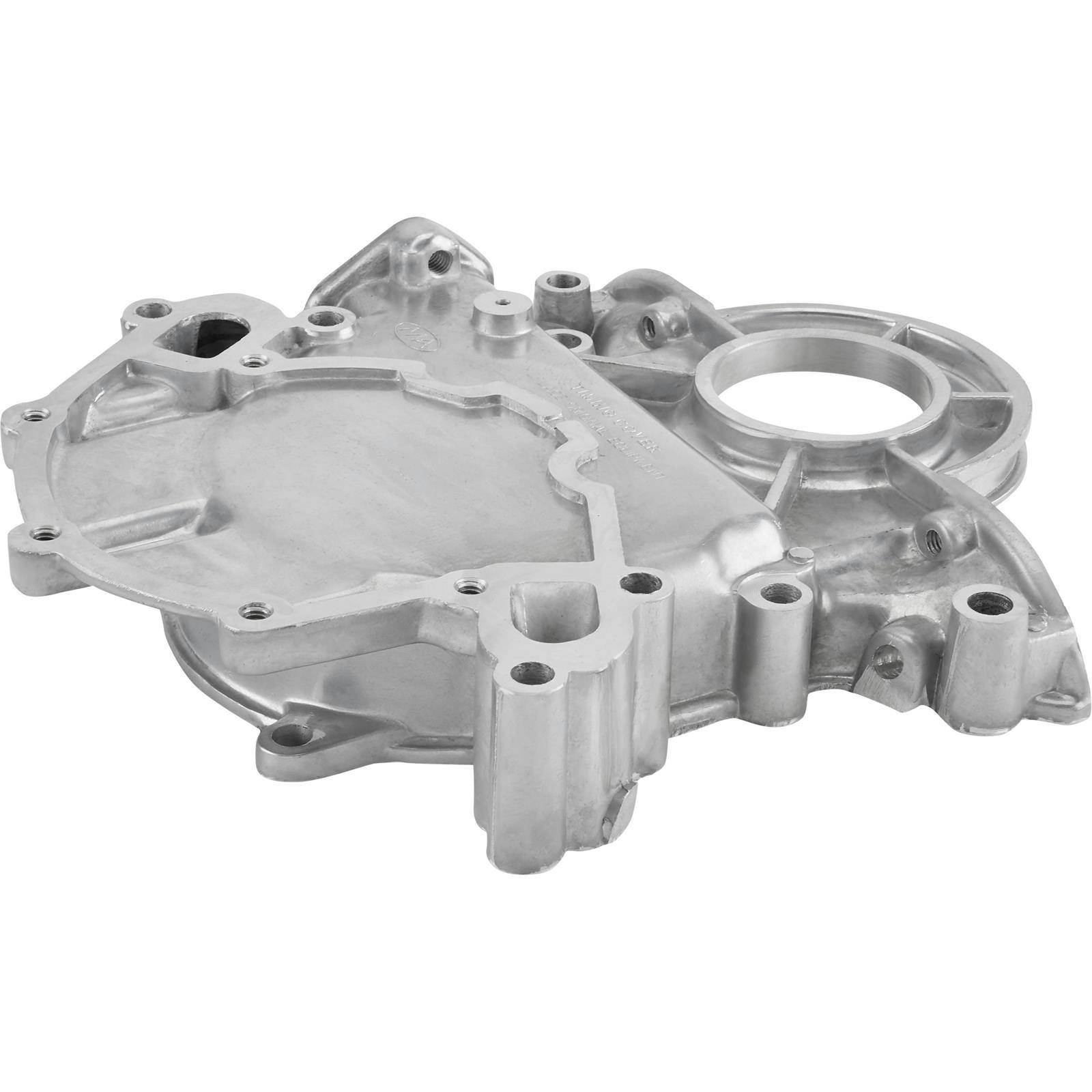

EngineQuest TC351A EQ 302-351W Ford Timing Cover

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Used ones are either cracked or corroded beyond use. These 100% new aluminum front timing covers have both fuel pump and dipstick provisions. Allows you to use mechanical fuel pump on later engines. Includes plug for dipstick hole if not required.

Fits 1966-84 Ford 289/302/351W V-8 engines.

Customer Reviews

Rated 4.2 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
6
4 Stars
1
3 Stars
2
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Bigrednick
Verified Purchaser
Verified Reviewer
Midland, MI

Did the job

June 25, 2015
The timing cover fit my motor however it is for a roller motor, it accepts the outer flange types seal not the inner press in types seal
Pros:
  • Cdc Milled Light Weight
Cons:
  • For A Roller Motor
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

timing cover
Verified Purchaser
northern Ky

looks and fits great

June 09, 2015
I couldn't believe how fast it was shipped, like here in 2 days
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hotrodmike
Verified Purchaser

good piece

August 02, 2014
The part is almost perfect, the water outlets, water pump and fuel pump line up perfect but when you line up cover at the bottom with the oil pan the center of the crank opening is no longer centered, i just hope the crank seal can hold in the oil, if not then its gonna suck to have to replace the part again!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Ken B
Verified Purchaser
Ceres Ca

nice cover well made

July 12, 2012
installed on 65 mustang 289. other then diffrent bolts fit well. wanted to just clear coat and have natural finnish but finish had stains. would buy agene if needed price was better then sunmmit.
Pros:
  • Good replacment
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

oklahoma dave
Verified Purchaser
Elgin, Il

Problem witth cover

July 30, 2011
While the cover lookes great and the casting looks good, it was made in china and the oil baffle that is above the crank seal area was cast to close to the seal boss and I had to cut the seal flange to install it in the cover.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

tinkertank
Verified Purchaser
minden ne

great product for a great price

May 25, 2011
it is nice to be able to get new parts that are a perfect fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Engine Builder
Verified Purchaser
Cuba, MO

High Quality and Fits Well

January 30, 2011
I needed the correct style timing cover for a customer's engine build using an aftermarket block. It was nice to be able to get a brand new one with both dipstick and fuel pump provisions.
Pros:
  • Lightweight
  • Easy To Install
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

metal hd.
Verified Purchaser
walnut creek ca

all there is ---exel. price

December 09, 2010
much much prefer oem older type with inside well that oil seal sits in rather than new type although you can change the seal without taking the timing cover off its a small price to pay knowing on the old type you cant blow the oil seal out on the old one because it is in a well with a stop no problem even with 400 hp ill have to wait and see with this one just hope for no glitch in the PCV!
Pros:
  • New shiny
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mert
Hurst, TX

More Incentive to Rod the 351W

April 26, 2010
It's great for swaps. The later 351W's don't have fuel pump drive access or front dipstick option. It eliminates the misery of junk yard search for an easily broken and often corroded-beyond-use part.
Pros:
  • Dipstick location option
  • Use Fuel Pump on late eng
  • Great Quality - Low Price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

fordabaker
las vegas, nv

timing cover

March 12, 2010
It is nice to be able to get something like this at a great price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 12 answers

1 answers

Does it come with front seal or gasket If not what are part numbers for seal that fit this cover.

Tfalconn2o
October 09, 2014

Does it come with front seal or gasket If not what are part numbers for seal that fit this cover.

Answers

October 09, 2014
EricM
No this does not come with the gaskets. Sorry we do not offer the gaskets individually. We do offer complete gasket sets for 302 as part number 91010350 or for 351W as part number 91010351.
1 answers

what oil dipstickgoes with this? its going on a 351W with a front sump oil pan.

Hazardous
Iowa
June 29, 2014

what oil dipstickgoes with this? its going on a 351W with a front sump oil pan.

Answers

June 30, 2014
EricM
Oil dipstick number 7209221 is the correct one for installing into this front cover.
1 answers

Does this include a cover for fuel pump if electric pump is used?

ChuckB
June 05, 2014

Does this include a cover for fuel pump if electric pump is used?

Answers

June 06, 2014
EricM
No you will have to purchase a fuel pump block off plate separately.
1 answers

do you sell a timing pointer for this cover?

hank66hipo
October 07, 2013

do you sell a timing pointer for this cover?

Answers

October 07, 2013
Jason
Sorry, this small block Ford front cover does not include timing pointer and currently Speedway does not offer a timing pointer for this cover.
2 answers

Is it for standard or reverse rotation water pumps, or both?

rjones35
July 09, 2013

Is it for standard or reverse rotation water pumps, or both?

Answers

October 07, 2013
hank66hipo
its your pump not the cover. if some one put a serpentine belt set up on it ---then you use a reverse rotation pump some people were putting 94 or 96 pumps on older mtrs with serpentine set ups aprox 30% more flow you get the same % jump with a standard rotation trw high perf std. pump on sale now also the stewart pump also WAY CHEAP unless you just like the looks of the serpentine either way from what ive seen the pumps are definateley less here!! and return policy has been fast and No hassle.
July 10, 2013
Jason
Part number 91017407 is for standard rotation water pump. There were a few mid year switchover applications for reverse rotation but if your car was not originally serpentine then this cover would work.
2 answers

Does this cover have the cast in timing pointer?

WChris
3025 E. Indian Creek Dr.
February 01, 2013

Does this cover have the cast in timing pointer?

Answers

October 07, 2013
hank66hipo
no Screw on or bolt on doesn't come with it may have to order else where
February 01, 2013
Jason
Sorry, this small block Ford front cover does not include timing pointer
2 answers

Will this product fit a 1985 block?

Geo
Maple Ridge B.C.
November 25, 2011

Will this product fit a 1985 block?

Answers

October 07, 2013
hank66hipo
1965 to 1984 call them maybe early 85 might just need spacer for balancer
November 28, 2011
Jason
This fits 1966-1984 289/302/351W with dipstick hole and fuel pump mount pad in cover. Dipstick hole can be covered with included plug
2 answers

Will this work on 89 351 with reversed water pump for serpentine belt running a carb with frame mounted pump and having fuel issues. want to put mechanical pump back on .1983 F100

Gator
Swartz Creek ,Mi
May 10, 2015

Will this work on 89 351 with reversed water pump for serpentine belt running a carb with frame mounted pump and having fuel issues. want to put mechanical pump back on .1983 F100

Answers

July 20, 2015
Mustang Sal
No
May 12, 2015
John
Expert
This cover with work with standard or reverse rotation pumps using a serpentine systems but lists years up thru 84 and not inclusive of your 1989. Enginequest does offer a cover specific to the 83-89 and it does have the provision for the mechanical fuel pump. We apologize but currently do not offer that cover.
Page 1 of 1
