Lokar Clevis Kits adapt Lokar Emergency Brake Cable kits to Ford Explorer and Wilwood Explorer-style rear disc brakes with internal drum hubs (like our 910-31938). Also works with late Corvette rear disc brakes with internal shoe-type parking brake (requires some file-fitting).Note: Clevis is included in kit 491-81FU. Ford Explorer rear disc brakes will need a pair of 916-41021 nuts to secure the cable ends to the thick cast iron OEM brackets.
Lokar Clevis Kits adapt Lokar Emergency Brake Cable kits to Ford Explorer and Wilwood Explorer-style rear disc brakes with internal drum hubs (like our 910-31938). Also works with late Corvette rear disc brakes with internal shoe-type parking brake (requires some file-fitting).

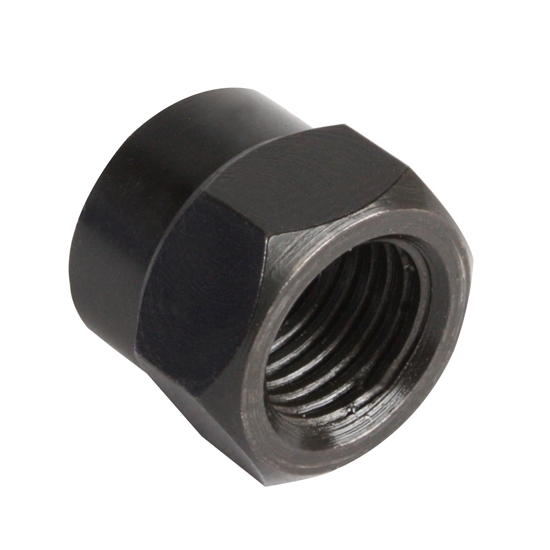

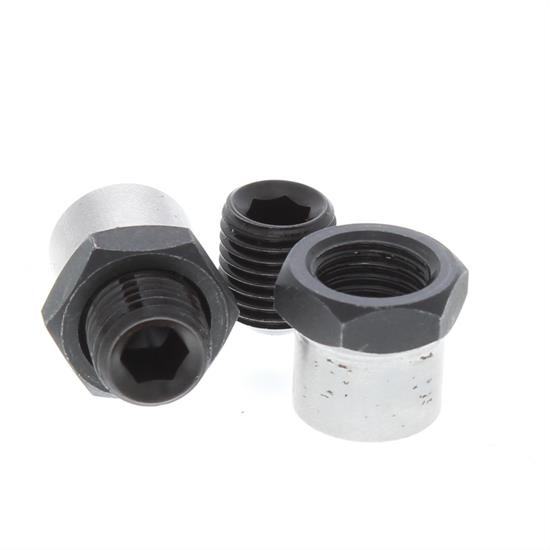

Note: Clevis is included in kit 491-81FU. Ford Explorer rear disc brakes will need a pair of 916-41021 nuts to secure the cable ends to the thick cast iron OEM brackets.
Cables are designed for use with Lokar Floor Mount Emergency Hand Brake (at right). Kit comes equipped with quality one-piece aluminum adjusters and aluminum ferrule to eliminate fraying of stainless housing. Outer housing is designed with specially extruded liner for extended life of the cable. Stainless inner cable resists moisture. Design allows rear end backing plate fittings to be removed without removing brake cables. Lokar cables also feature adjustable cable lock and clevis. Kit is complete with cable bracket and spacers. Kit includes two 8 foot black outer housings that “U-Cut-to-Fit". See Application tab for model-specific information. Note: Cable kit includes Explorer-style clevis 491-81FC.
Cables are designed for use with Lokar Floor Mount Emergency Hand Brake (at right). Kit comes equipped with quality one-piece aluminum adjusters and aluminum ferrule to eliminate fraying of stainless housing. Outer housing is designed with specially extruded liner for extended life of the cable. Stainless inner cable resists moisture.
Design allows rear end backing plate fittings to be removed without removing brake cables. Lokar cables also feature adjustable cable lock and clevis. Kit is complete with cable bracket and spacers. Kit includes two 8 foot black outer housings that “U-Cut-to-Fit".
See Application tab for model-specific information.
Note: Cable kit includes Explorer-style clevis 491-81FC.
Looking for a low cost way to add rear disc brakes to your Ford 8.8" or 9" equipped hot rod, without searching the junk yards? Look no further. This Ford Racing rear disc brake kit includes OE quality single-piston calipers, 11.8" vented rotors, E-coated caliper mounting bracket, and all mounting components. Plus, the E-coated backing plate features an integral parking brake for a convenient install.Kit is designed for the late model Ford 8.8" truck and 9" (New Style Big Ford housing with 3.15 bearings, 2.5" offset) rear axles. Will NOT work with Mustang 8.8" axle. Rotors are drilled for 5 on 4-1/2" bolt pattern. See Notes tab for important install info.Will Not Work On 15" or 16" Wheels. Axle Flange ID Chart Clearance! NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
Looking for a low cost way to add rear disc brakes to your Ford 8.8" or 9" equipped hot rod, without searching the junk yards? Look no further. This Ford Racing rear disc brake kit includes OE quality single-piston calipers, 11.8" vented rotors, E-coated caliper mounting bracket, and all mounting components. Plus, the E-coated backing plate features an integral parking brake for a convenient install.
Kit is designed for the late model Ford 8.8" truck and 9" (New Style Big Ford housing with 3.15 bearings, 2.5" offset) rear axles. Will NOT work with Mustang 8.8" axle.
Axle Flange ID Chart
Clearance!
NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
