Edelbrock 7501 Performer RPM Air-Gap Small Block Chevy Intake Manifold

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Overall Height:
5.25
Sold in Quantity:
Each
Finish:
Natural
Port Height:
1.95
Port Width:
1.14
MFG. Part #:
7501
Intake Manifold Type:
Dual Plane
Carburetor Quantity:
One
Carburetor Flange Type:
4-Barrel Square Bore

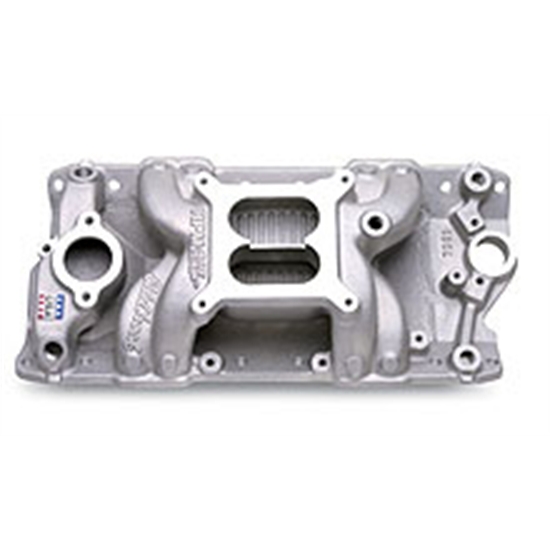

Edelbrock 7501 Performer RPM Air-Gap Small Block Chevy Intake Manifold

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Designed for 1955-86 262-400 c.i.d. Chevrolet V8s, the award-winning RPM Air-Gap incorporates the same race-winning technology that's used on the Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.

Manifold features rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all 1976 and later alternator and A/C brackets for the street. The heater outlet boss is angled for proper fit over the valve cover. The temp sensor boss clears all waternecks.

  • For square-bore carburetors only
  • No provision for exhaust-heated chokes and no exhaust crossover
  • Not for 1987 and later cast iron heads
  • Will not fit under stock Corvette hood

325-7501 Instructions (PDF)


Notes

  • Carburetor Recommendations: Edelbrock, 650-800 cfm
  • Manifold Height @ Front: 4.20"
  • Manifold Height @ Rear: 5.25"
  • Carb Pad Height: 4.725"
  • Port exit dimensions: 1.14" x 1.95"
