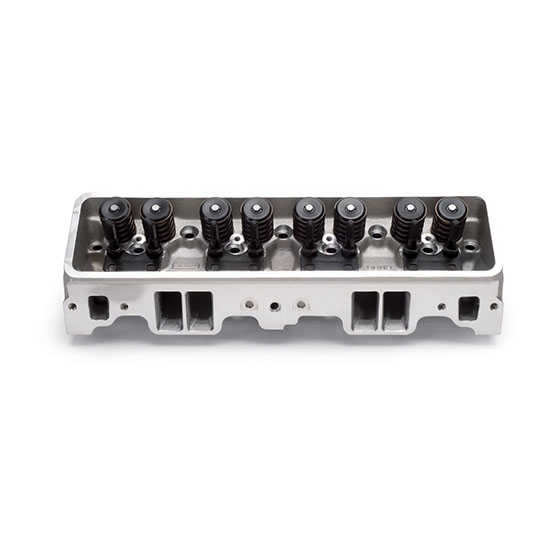

Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L
Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L

Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L
Image Gallery
Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L
Edelbrock 608519 Performer Centerbolt Cylinder Head, Chevy 5.7L
Zoomed In Image
Edelbrock estimates this item will ship on or before August 30th.
Part # 325608519
Save 24%
$945.99
$1,253.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Combustion Chamber:
60cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Polished
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.575"
Outside Diameter of Outer Spring:
1.46"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 Degree
Valve Stem Seal Type:
Positive Stop
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
16-May"
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
23
Intake Runner Volume:
165cc cu. in.
Exhaust Runner Volume:
65cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347990597

Info

Direct bolt-on Edelbrock Performer assembled cylinder heads for Small Block Chevy 5.7L engines and Super Stock racers. No port profiling or bowl blending of ports. They offer improved power for greater throttle response and top-end power throughout the rpm range.
  • 50-State Street Legal Aluminum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • Hand-Blended Intake and Exhaust Bowls
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces than Other Brands
  • Hardened Tip Stainless Swirl-Polished Valves
  • Heli-Coils Rocker Studs And Exhaust Bolt Holes

Installation Instructions (PDF)

Notes

1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73? angle on the two center bolts. Polished.
