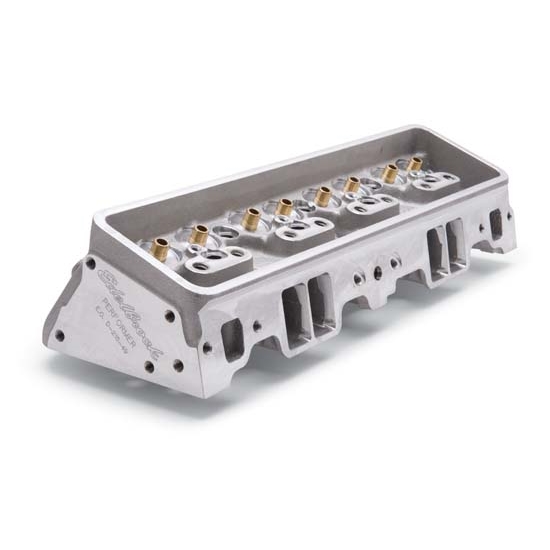

Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L
Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L

Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L
Image Gallery
Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L
Edelbrock 60849 Performer Centerbolt Cylinder Head, Bare, Chevy 5.7L
Zoomed In Image
Edelbrock estimates this item will ship on or before August 22nd.
Part # 32560849
Save 24%
$571.99
$759.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
60cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
Yes
Intake Valve Angle:
23
Intake Runner Volume:
165cc cu. in.
Exhaust Runner Volume:
65cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347608492

Info

Designed for 1987-95 Throttle Body Injected and Tuned Port Injected 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73 degree angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket.
  • 50-State Street Legal Aluminum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • Hand-Blended Intake and Exhaust Bowls
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces than Other Brands
  • Hardened Tip Stainless Swirl-Polished Valves
  • Heli-Coils Rocker Studs And Exhaust Bolt Holes

Installation Instructions (PDF)

Notes

1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73? angle on the two center bolts.
