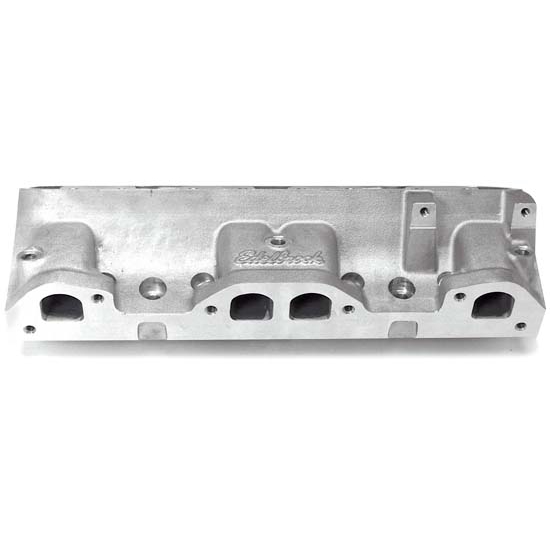

Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455
Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455

Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455
Image Gallery
Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455
Edelbrock 60569 Performer Cylinder Head, Aluminum, Pontiac 389-455
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 32560569
Save 22%
$964.99
$1,244.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
87cc
Intake Valve Diameter:
2.11"
Exhaust Valve Diameter:
1.66"
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Ram Air IV
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Material:
Ductile Iron
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
Yes
Intake Valve Angle:
14
Intake Runner Volume:
215cc cu. in.
Exhaust Runner Volume:
175cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347605699

Info

Direct bolt-on heads for Pontiac 389-455 Stock and Super Stock racers. No port profiling or bowl blending of ports.
  • Out-of-the-Box Bolt-On Performance
  • Maximize Performance w/Low-Octane Fuel
  • Maximize Streetable Compression
  • Patterned After The Ram Air IV Pontiac Cyl. Head

Installation Instructions (PDF)

Notes

These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit 8549.
Some parts are not legal for use in California or other states with similar laws/regulations
