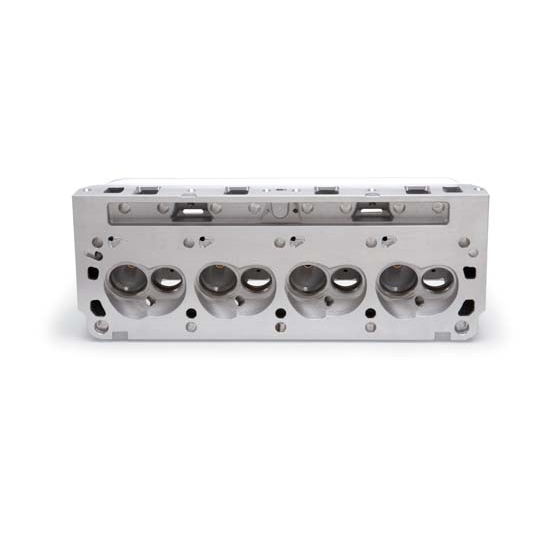

Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L
Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L

Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L
Image Gallery
Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L
Edelbrock 60369 Performer Cylinder Head, Bare, Ford 5.0/5.8L
Zoomed In Image
Edelbrock estimates this item will ship on or before September 5th.
Part # 32560369
Save 23%
$659.99
$860.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
60cc
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
20
Intake Runner Volume:
170cc cu. in.
Exhaust Runner Volume:
60cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347603695

Info

The street legal Performer Ford 5.0L/5.8L heads feature:

  • Direct bolt-on heads for 1982-95 5.0L and 5.8L V8's
  • 1986 5.0L need pistons notched for clearance
  • These heads accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain
  • 50-state street legal
  • Will not accept rail rockers
  • 5.0L's require head bolt bushing #9680 and either head bolt kit #8552 (7/16") or stock bolts

Installation Instructions (PDF)

Notes

1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

Notes

Heads will accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetra 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires head bolt bushings EDL-9680 and either head bolt kit EDL-8552 (7/16"") or stock head bolts. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using.
