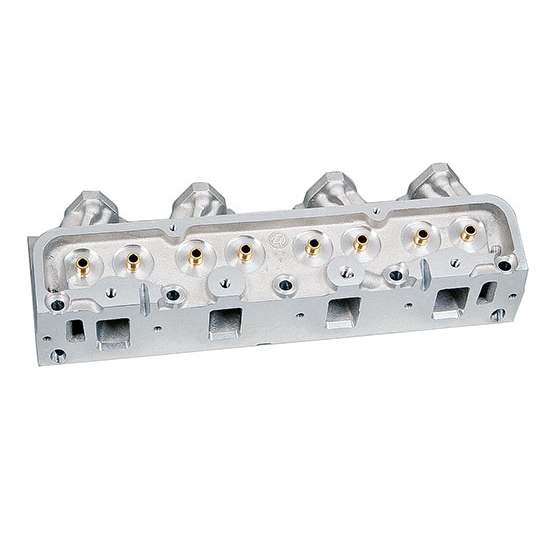

Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE
Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE

Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE
Image Gallery
Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE
Edelbrock 600519 Performer RPM Cylinder Head, Big Block Ford FE
Zoomed In Image
We estimate this item will ship on or before September 26th.
Part # 325600519
Save 20%
$819.99
$1,034.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
72cc
Intake Valve Diameter:
2.09"
Exhaust Valve Diameter:
1.66"
Finish:
Polished
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Material:
Ductile Iron
Steam Holes Drilled:
No
Oiling Style:
Through Head
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
13
Intake Runner Volume:
170cc cu. in.
Exhaust Runner Volume:
125cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347990009

Info

Designed for street high performance use, and are interchangeable with original equipment cylinder heads. These heads retain an exhaust crossover passage and are street legal replacement parts.
  • Out-of-the-Box Bolt-On Performance
  • Hand-Blended Intake and Exhaust Bowls
  • CNC-Matched Intake/Exhaust Ports in Std Location
  • Thicker Deck Surfaces than Other Brands

Installation Instructions (PDF)

Notes

Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock stud kit EDL-6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head.
Some parts are not legal for use in California or other states with similar laws/regulations
