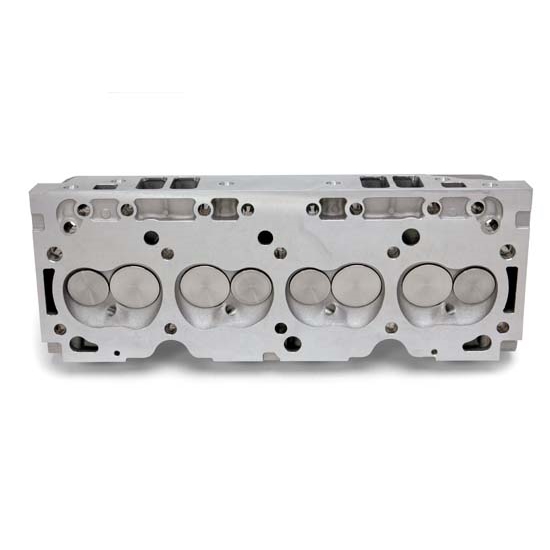

Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455
Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455

Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455
Image Gallery
Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455 Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455 Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455
Edelbrock 60049 Performer RPM Cylinder Head, Buick 400, 430, 455
Zoomed In Image
Edelbrock estimates this item will ship on or before August 24th.
Part # 32560049
Save 20%
$1,133.99
$1,432.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Combustion Chamber:
68cc
Intake Valve Diameter:
2.125"
Exhaust Valve Diameter:
1.75"
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Rectangle
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.6"
Outside Diameter of Outer Spring:
1.55"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 Degree
Valve Stem Seal Type:
Positive Stop
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
8-Mar"
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile Iron
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
15
Intake Runner Volume:
215cc cu. in.
Exhaust Runner Volume:
130cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347600496

Info

These Performer RPM cylinder heads are designed for 400, 430 and 455 c.i.d. Buick engines. These heads include adjustable rocker stud and guide plate set-up for use with small-block Chevy style adjustable 1.6:1 ratio rockers.
  • Out-of-the-Box Bolt-On Performance
  • 68cc Combustion Chambers
  • High Flow 130cc Exhaust Ports
  • Accepts Small Block Chevy Adjustable Rockers

Installation Instructions (PDF)

Notes

High-quality stainless steel valves, Intake and exhaust runners are hand blended in the bowl area and the intake entries and exhaust exits are cnc profiled for increased air-flow. These heads include adjustable rocker stud and guide plate set-up for use with small-block Chevy 1.61 style adjustable rockers.
