$1,459.95
$928.99

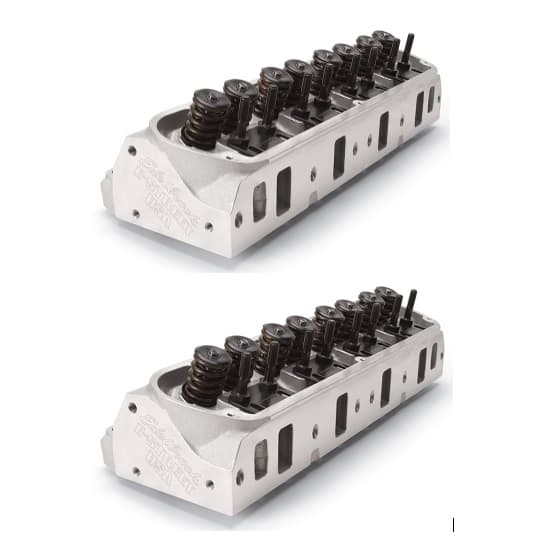

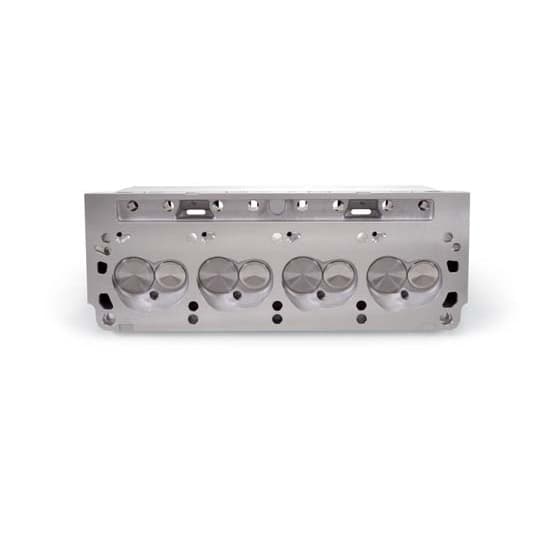

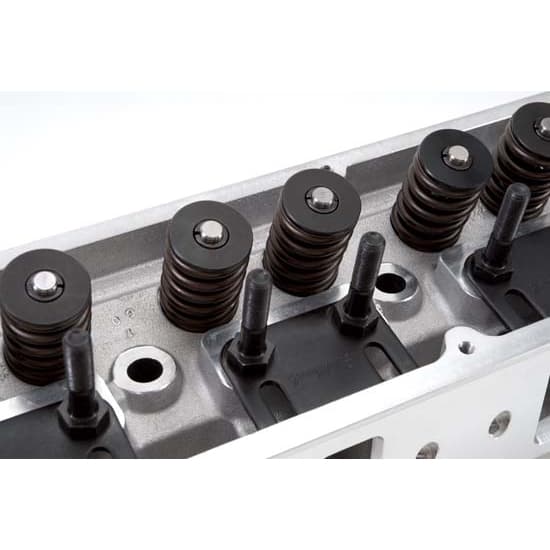

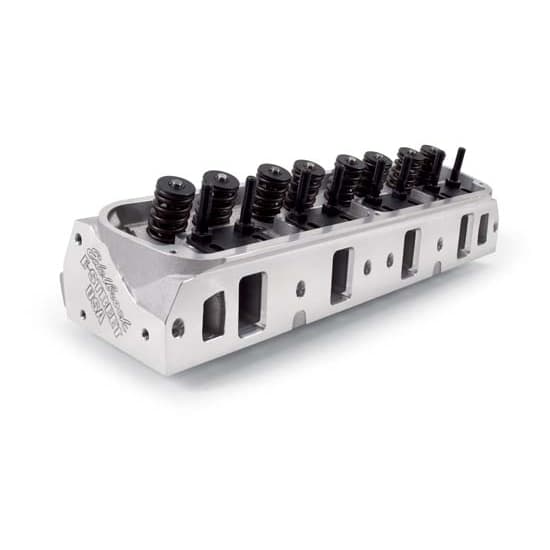

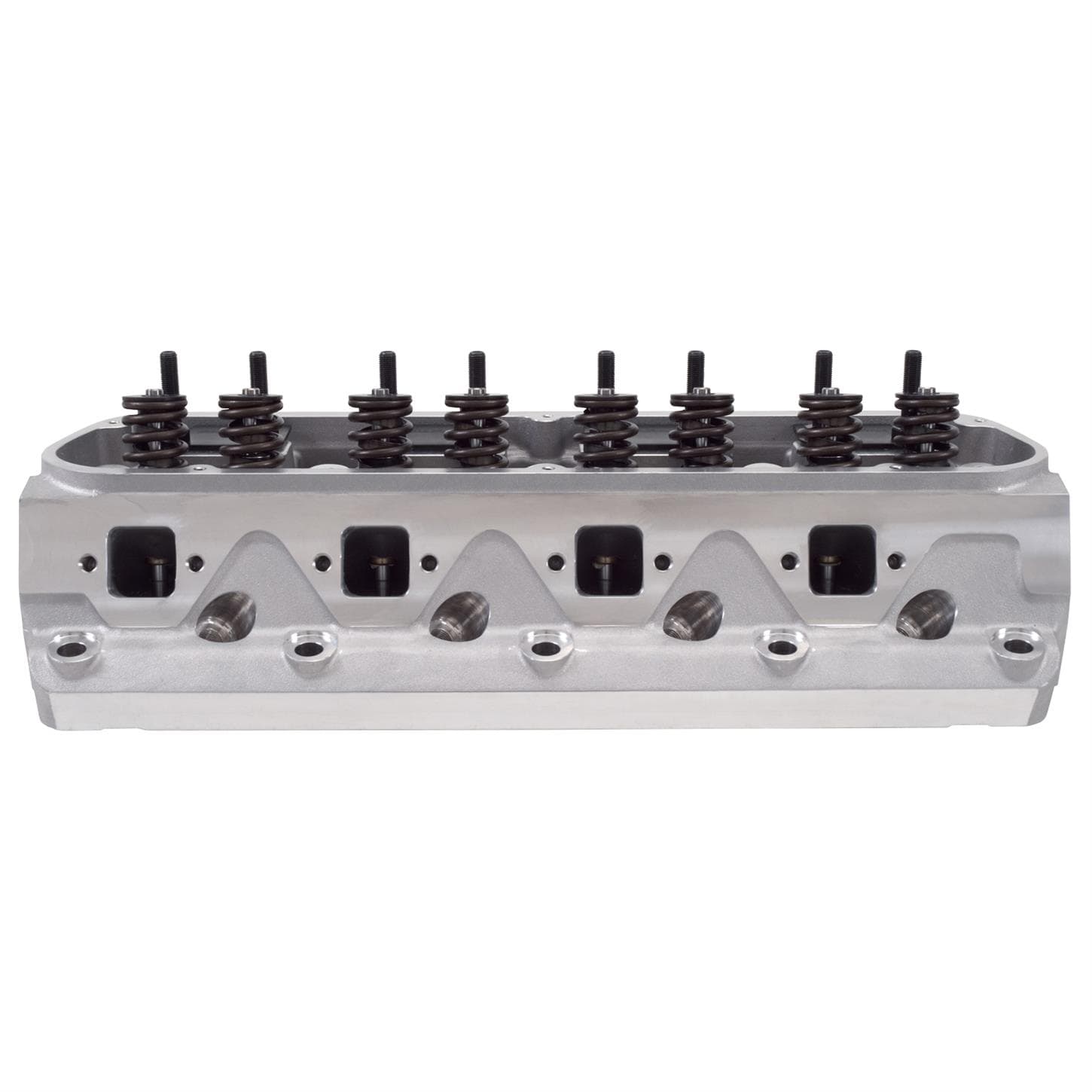

Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W
Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W

Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W
Image Gallery
Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W
Edelbrock 5025 E-Street Cylinder Head, Aluminum, Ford 289, 302, 351W
Zoomed In Image
Edelbrock estimates this item will ship on or before August 28th.
Part # 3255025
Save 36%
$928.99
$1,459.95
pair
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Combustion Chamber:
60cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Natural
Sold in Quantity:
Pair
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.55"
Outside Diameter of Outer Spring:
1.46"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 Degree
Valve Stem Seal Type:
Umbrella
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
16-May"
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Combustion Chamber Style:
Heart
Intake Runner Volume:
170cc cu. in.
Exhaust Runner Volume:
60cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347050253

Info

Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. They are available for popular V8 engines.

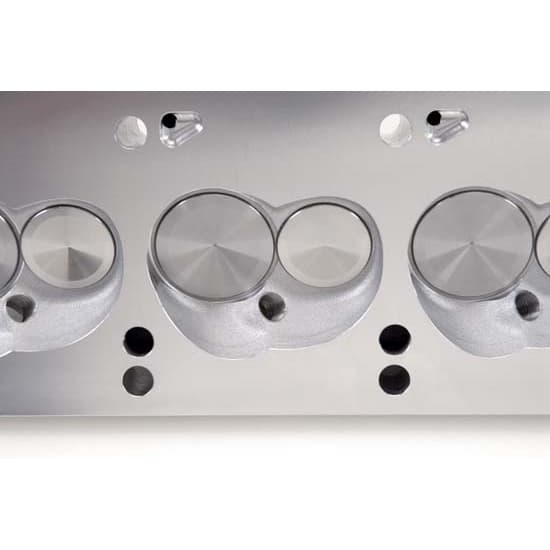

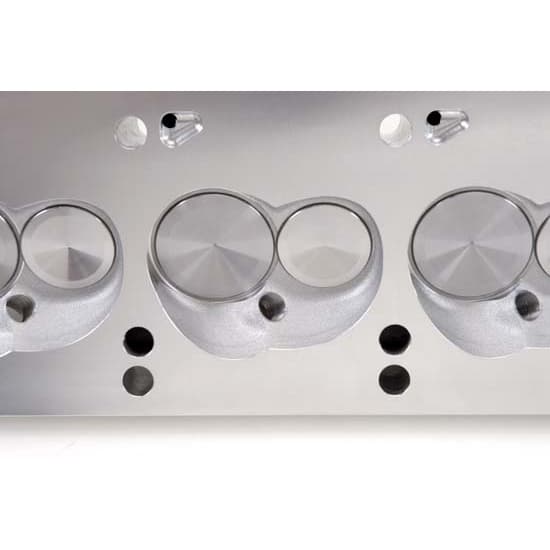

The 75cc combustion chamber allows this head to be used with stock pistons, retaining the 9.5:1 compression. The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.

Installation Instructions (PDF)

Notes

Designed for use with hydraulic camshafts with less than .550 lift. Requires use of hardened pushrods. Part number EDL-9680 head bolt bushing kit required for use with 7/16 head bolts. The valve and seat combination used in these heads is not recommended for use with a hydraulic or mechanical roller camshafts.
