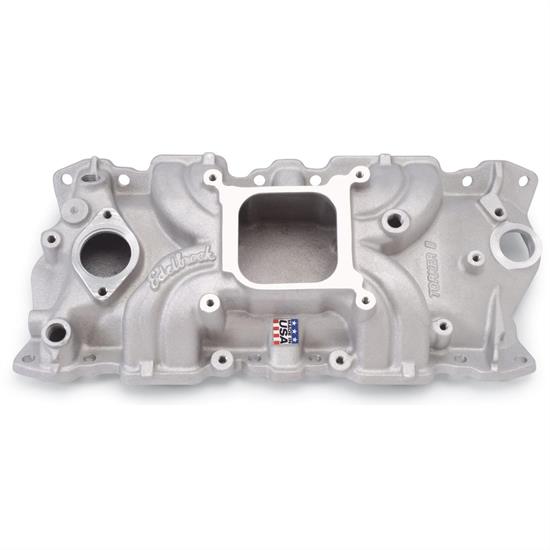

Edelbrock 5001 Small Block Chevy Torker II Intake Manifold

SAME DAY SHIPPING!

Specs
Finish:
Natural
MFG. Part #:
5001
Intake Manifold Type:
Single Plane
Carburetor Quantity:
One
Carburetor Flange Type:
4-Barrel Square Bore

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Designed for 1955-86 high-performance 262-400 c.i.d. small-block Chevy V8s operating in the 2500-6500 RPM range. The Torker II is an updated version of original Torker offering better performance. Manifold accepts late-model waterneck, air-conditioning, alternator and H.E.I. distributor.

Will fit Corvette and 1987 and later stock aluminum heads. Will NOT fit 1987 and later cast iron heads and will NOT cover port openings of Chevrolet Bowtie or LT1 heads.

NOT intended for use on heavy vehicles (trucks, vans etc.).

Torker II Intake Manifold Installation Instructions (PDF)

Specs

  • Carburetor Recommendations:  Edelbrock Performer Series, 600-800 cfm
  • Manifold height @ front:  3.53"
  • Manifold height @ rear:  4.63"
  • Carb pad height:  4.08"
  • Port exit dimensions:  1.09" x 1.73".
