Edelbrock 2150 Small Block Chevy 6-Carb X1 Ram Log Intake Manifold

SAME DAY SHIPPING! Order within the next 4 hours 39 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
5.90
Sold in Quantity:
Each
Finish:
Natural
Port Height:
1.94
Port Width:
1.20
MFG. Part #:
2150
Garage Sale:
No
Intake Manifold Type:
Cross Ram
Carburetor Quantity:
Six
Carburetor Flange Type:
2-Barrel 3-Bolt
Edelbrock 2150 Small Block Chevy 6-Carb X1 Ram Log Intake Manifold
Edelbrock 2150 Small Block Chevy 6-Carb X1 Ram Log Intake Manifold

Click image to enlarge

Speeday Motors Logo
X
Edelbrock 2150 Small Block Chevy 6-Carb X1 Ram Log Intake Manifold

Details

Reviews

Q & A

What's in the Box

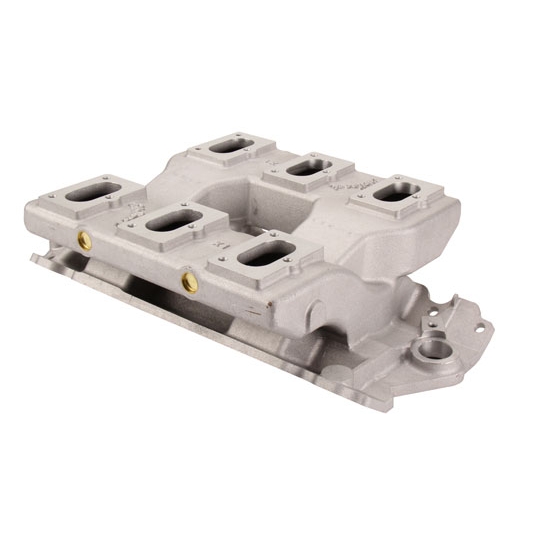

These Edelbrock X1 manifolds are reproductions of the originals introduced in the 1950's for 283-327 small-block Chevy. This manifold features large free-flowing straight runners for six, 3-bolt carburetors such as our 9 Super 7. Oval carb opening measures 1.45” x 2.96”. Includes machined oil fill tube provision and period correct casting features for the best vintage look and performance for your small-block Chevy street rod application.

  • Exact reproduction of the original late 1950"s Edelbrock Ram manifold
  • Fits Chevy 283-327 engines
  • Uses six 3 bolt base carbs like 9 Super 7's, Stromburg 97 or Edelbrock 94's
  • 2500-7000 RPM

Notes

Manufacturer Recommendations:

Carburetor Recommendations: Edelbrock 94 #1151 3-bolt.

Installation Notes: H.E.I. will not fit. Recommended intake gasket: Edelbrock #7201. Manifold height: A-5.90", B-5.90". Carb pad height: 5.90". Port exit dimensions: 1.20" x 1.94".

Linkage Kit #1031, 6x2 Fuel Log Kit #1287 and Oil Fill Tube and Breather #4803

You may also be interested in:

Edelbrock 1151 94 2-Barrel Carburetor


In 1938, the 94 two-barrel carburetor was born, fueling flatheads and other engines until production ceased in 1957. Flash-forward to 2010 and the 94 is once again available, by none other than Edelbrock! Adding to Edelbrock's reputation of bolt-on and perform carburetors, the Edelbrock 94 two barrel carburetor is intended for nostalgic and period correct hot rods and restorations.

Like the Holley 94 carburetor and Ford 94 carburetor that came before it, this Edelbrock carburetor features a die-cast bowl and air horn with a cast iron 3-bolt flange. It's throttle shaft has been extended to make it easier to set-up dual and triple carburetor combinations, especially when used with Edelbrock's exclusive progressive linkage. Extensive testing, both on the road and in a state-of-the-art engine dynamometer facility has allowed Edelbrock to fine tune power valve and jetting combinations to deliver smooth and strong performance. This 2 barrel Edelbrock carb is finished off with a zinc-dichromate coating for durability and classic looks.

This is a “hot rod” style 2 barrel carb, designed specifically for multi-carb systems. It is not a direct bolt on replacement for OEM applications and will require modifying the factory throttle linkage to use it as such.

  • Machined and assembled by Edelbrock in the U.S.A
  • 3-bolt cast aluminum base
  • Designed & calibrated for use in small cubic inch engines
  • Match with an Edelbrock intake manifold, cylinder heads, linkage, fuel blocks and Classic series accessories for the complete classic look of the early hot rod era
  • Fits Edelbrock Ford flathead intakes #1100, #1103, #1108, #1109 & small block Chevy #5414 & #5418
Edelbrock 1152 94 Two-Barrel Secondary Carburetor


In 1938, when Henry Ford needed a more efficient carburetor for his new 24-stud Flathead V8 engine, he contracted development to the Chandler-Groves Company and the 94 two-barrel carburetor was born, fueling Ford engines until production ceased in 1953. Flash-forward to today and the 94 is once again available!

Built around Edelbrock's reputation of bolt-on performance carburetors, the Edelbrock 94 two-barrel carburetor provides nostalgic and period correct hot rods and restorations with the most accurate and best performing carburetor on the market. The Edelbrock 94 features a die-cast bowl and air horn with an aluminum 3-bolt base. These secondary versions of this carburetor feature no choke, making it a must have for multiple carb setups. They both feature an extended throttle shaft to make it easier to install dual and triple carburetor combinations, especially when used with Edelbrock's exclusive progressive linkage. The throttle shaft has also been knurled to prevent the linkage arm from slipping. Extensive testing, both on the road and in our state-of-the-art engine dynamometer facility has allowed Edelbrock to offer a power valve and jetting combination that delivers a wide calibration band for smooth and strong performance in various applications.

  • Machined and assembled by Edelbrock in the U.S.A
  • Features a 3-bolt flange and cast aluminum base
  • Includes calibration instructions for Flathead and small cubic inch V8 engines
  • Match with an Edelbrock intake manifold, cylinder heads, linkage, fuel blocks and Classic series accessories for the complete classic look of the early hot rod era
  • Fits any standard 3-bolt intake manifold
Edelbrock 6 Carb Throttle Linkage Kit for GM Ram Log Intake, 94 Type Carbs


This linkage is for an Edelbrock Ram Log intake with 6 "94" carbs on a 325-2150 intake. They feature progressive throttle blade action and include all necessary hardware and instructions for installation.

  • Designed for use on Edelbrock X1 Ram Log intake manifolds
  • Applicable to Edelbrock/Holley "94" carburetors only
  • 6-carb linkage kits
  • Originally designed by Vic Edelbrock Sr. for smooth carburetor operation

Lokar TRP-4006 Stainless Steel 3 Bolt Carb Throttle Cable Mounting Bracket


Designed to be used with early 3 bolt carburetors like the  Stromberg 97, and 94’s.  They will also work on current replacement carburetors like the Speedway Motors 9 Super 7’s, and Edelbrock 94’s.  In Stainless steel with throttle return springs.

  • Fits most early carbs with 3 bolt mounting flange
  • Stainless Steel
  • With throttle return springs



Lokar TRP-4007 Stainless Steel 3 Bolt Carb Throttle Cable Mounting Plate


Designed to be used with early 3 bolt carburetors like the  Stromberg 97, and 94’s.  They will also work on current replacement carburetors like the Speedway Motors 9 Super 7’s, and Edelbrock 94’s.

  • For use with 3-bolt carburetors
  • Stainless Steel
  • Mounting plate only
Lokar XTRP-4006 Midnight Series 3 Bolt Carb Throttle Cable Mounting Bracket


Designed to be used with early 3 bolt carburetors like the  Stromberg 97, and 94’s.  They will also work on current replacement carburetors like the Speedway Motors 9 Super 7’s, and Edelbrock 94’s.  In Black finish with throttle return springs.

  • For use with 3-bolt Stromberg style carburetors
  • Tri-Power throttle cable / kickdown cable bracket
  • Black finish
  • With throttle return springs
Lokar XTRP-4007 Midnight Series 3 Bolt Carb Throttle Cable Mounting Plate


Designed to be used with early 3 bolt carburetors like the  Stromberg 97, and 94’s.  They will also work on current replacement carburetors like the Speedway Motors 9 Super 7’s, and Edelbrock 94’s.

  • For use with 3-bolt Stromberg style carburetors
  • Tri-Power throttle cable / kickdown cable bracket
  • Black finish
  • Mounting plate only
