Economy Battery Disconnect Switch

SAME DAY SHIPPING! Order within the next 2 hours 55 minutes and receive same day shipping

Specs
Material Type:
Plastic
Overall Length:
3.125
Sold in Quantity:
Each
Overall Diameter:
2.33
Hole Diameter:
.1875
Mounted Length:
1.75
Economy Battery Disconnect Switch
Economy Battery Disconnect Switch
Economy Battery Disconnect Switch
Economy Battery Disconnect Switch
Economy Battery Disconnect Switch
Economy Battery Disconnect Switch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

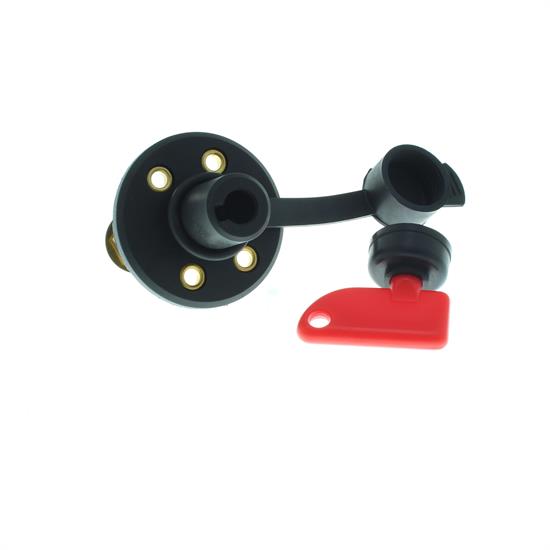

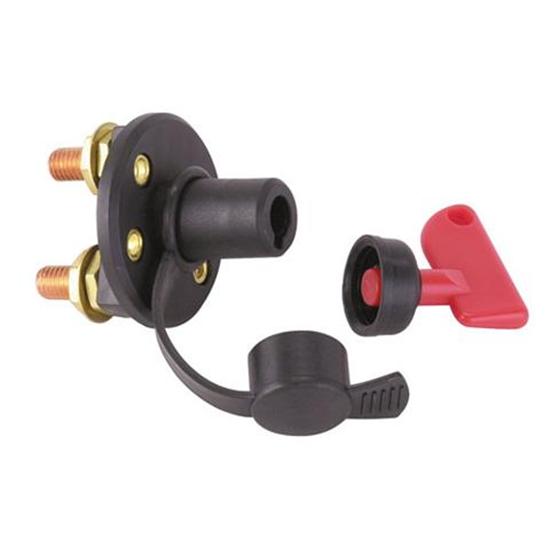

Durable plastic battery kill switch with removable red key. This battery disconnect switch is a two post design. Battery shut off switch can be remote mounted or where specified for saftey and convenience.

  • Quick and easy method to guarantee security and safety
  • No more worries about slow battery drain from non-use
  • Ideal theft deterrent, easily mounts under the hood
  • A must for many racing associations

910-64502 Instructions (PDF)

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Speed Buggy 52
Verified Purchaser
Colorado Springs, Co.
Product Rating

Works great

November 08, 2011
Safety equipment
Pros:
  • Economy price
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

I don't see any amperage ratings in the specs. Does anyone know what the continuous amp rating is? How about the surge amp rating?

1 answers
BRGMGB
February 11, 2013

I don't see any amperage ratings in the specs. Does anyone know what the continuous amp rating is? How about the surge amp rating?

Answers

February 11, 2013
Jason
This battery disconnect switch is listed as a 50 amp switch. Sorry, it does not list a surge amp rating

how does this mount? I'm concerned as, I can't see the bottom side of the device. And don't understand how it is insulated when mounted on steel.

1 answers
wytfut
Waverly, NE 68462, USA
November 03, 2012

how does this mount? I'm concerned as, I can't see the bottom side of the device. And don't understand how it is insulated when mounted on steel.

Answers

November 05, 2012
Jason
This has 4 mounting hole on the flange. The studs for battery wires are .435" below mount flange to prevent contact with material being mounted on
Page 1 of 1
