Economy 9 Inch Ford Mini Spool, 28 Spline

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Spline Count:
28
Garage Sale:
No
Notes
Use with 3/4" chrome moly cross pin.

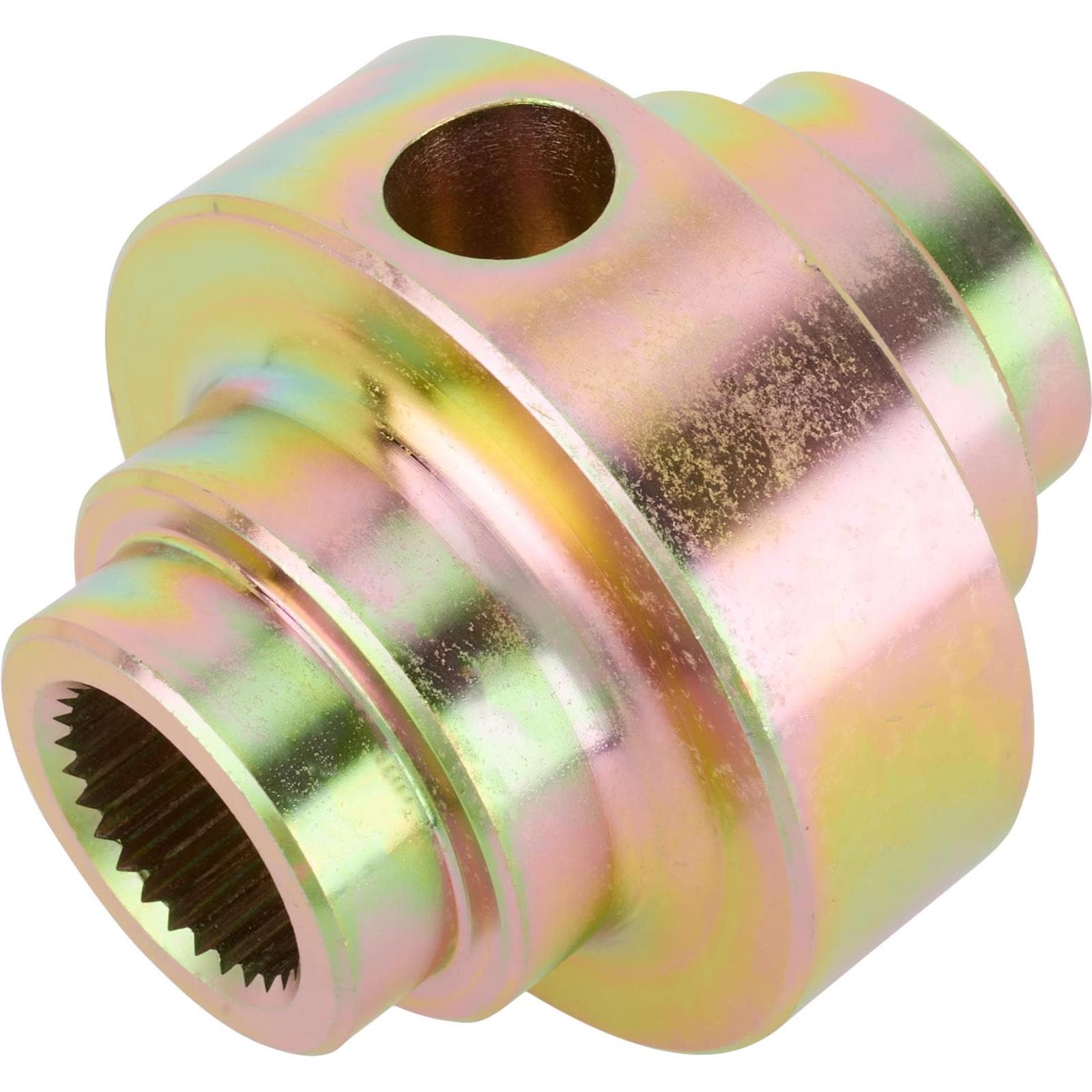

Economy 9 Inch Ford Mini Spool, 28 Spline
Economy 9 Inch Ford Mini Spool, 28 Spline

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

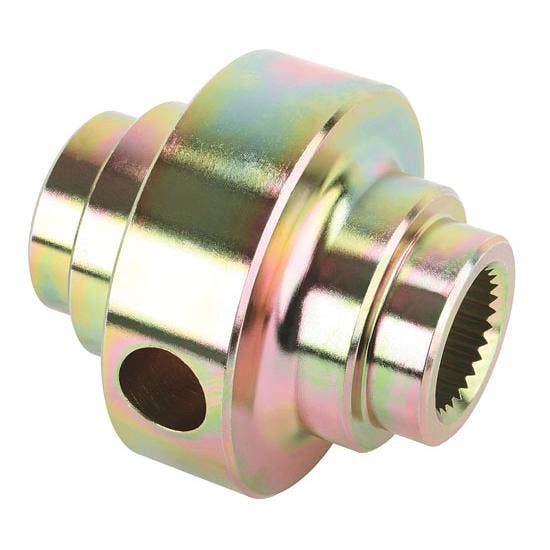

Our forged, heat-treated steel mini spools are designed to replace the spider gears inside the stock differential carrier. This economy spool works best for dirt applications with claimer motors and narrow tires. - For Ford 8 or 9" rear axles.

Will NOT work on posi carrier. Use with 3/4" chromoly cross pin (listed).

You may also be interested in:

9 Inch Ford Rear End Overhaul Kit
(Part #9190950)
                        This 9" Ford overhaul kit includes: pinion pilot, pinion shaft, pinion nut, pinion seal, gasket, shims, crush collar, sealant, gear marking grease, brush and Loctite. Ring gear bolts not included.

NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

9" Ford Carrier Bearing Chart (GIF)  - Double check your bearing p/n.

Premium 9 Inch Ford Mini Spool, 28 Spline
(Part #6552800)


Our forged, heat-treated 8620 steel mini spools are designed to replace the spider gears inside the stock differential carrier. This premium mini spool features a larger diameter for maximum strength. It works great for most dirt applications and some asphalt.

For Ford 8 or 9" rear axles. Will NOT work on posi carrier. Use with 3/4" chromoly cross pin (listed).

Premium 9 Inch Ford Mini Spool, 31 Spline
(Part #6553100)


Our forged 8620 steel mini spools are designed to replace the spider gears inside the stock differential carrier. This premium mini spool features a larger diameter for maximum strength. It works great for most dirt applications and some asphalt.

  • For Ford 8 or 9" rear axles.
  • Will NOT work on posi carrier.
  • Use with 3/4" chromoly cross pin (listed) # 655-7520.
Motive Gear Ford 9 Inch Performance Ring and Pinion, 1957 - Up Style
(Part #919194)


Motive Gear 9" Performance Style 1957 & Up ring and pinion gear sets are quality assured and tested to take a beating in your aluminum or steel housing.  Computer-controlled heat treatment, index tooth spacing, and CNC machining all go into this series of performance gear sets.

  • 10 Bolt 3rd member
  • Aluminum or steel housing
  • Ring gear diameter 9"
  • 10-7/16" x 20 RH threaded bolts
  • Pinion diameter 1.313" 28 splines
  • No case breaks
  • 8620 Material - Heat Treated
  • Choose your ratio

Note:  Circle track racing applications require a minimum of 4 qts. of rear end lube.  Using less than this amount will lead to immediate pinion bearing failure.

Motive Gear Performance Ring and Pinion Chart (GIF)

Speedway 9 Inch Ford Chromoly Cross Pin
(Part #6557520)


Our 3/4" cross pin for the 8" & 9" Ford axle is machined from chromoly steel and will stand up to lots of racing abuse.

Lubrication Engineers SAE 140 Weight Gear Oil, 1 Gallon
(Part #91044140)


Whether you're running a stock flattie and rearend or hopped-up overhead and quick change, you need to run a good gear lube. Remember that your rearend was designed fifty plus years ago and needs all the help it can get. The biggest improvement you can give it is a lubricant that will allow the gears to survive the highway speeds that cars see today. L.E. gear oil is what we use in our 350 mph streamliner, that uses a V-8 quick change, without failure. The "red stuff" provides superior lubrication for long gear life. You can't win if you don't finish. We suggest 90 weight for the street and 140 weight for extreme uses.

  • Formulated using blends of high quality paraffinic and synthetic base fluids
  • Contains a highly shear stable tackiness
  • Unique blend of base fluids and thermally stable EP additives
  • Separates readily from water
  • Contains non-silicone defoaming additives
  • Contains no solids
  • Contains DUOLEC LE's proprietary dual acting liquid wear-reducing and extreme pressure additive

LE Gear Oil Data Sheet (PDF)

Lubrication Engineers SAE 90 Weight Gear Oil, 1 Gallon
(Part #91044090)
                        Whether you're running a stock flattie and rearend or hopped-up overhead and quick change, you need to run a good gear lube. Remember that your rearend was designed fifty plus years ago and needs all the help it can get.

The biggest improvement you can give it is a lubricant that will allow the gears to survive the highway speeds that cars see today. L.E. gear oil is what we use in our 350 mph streamliner, that uses a V-8 quick change, without failure. The "red stuff" provides superior lubrication for long gear life. You can't win if you don't finish. We suggest 90 weight for the street and 140 weight for extreme uses.

  • Formulated using blends of high quality paraffinic and synthetic base fluids
  • Contains a highly shear stable tackiness
  • Unique blend of base fluids and thermally stable EP additives
  • Separates readily from water
  • Contains non-silicone defoaming additives
  • Contains no solids
  • Contains DUOLEC LE's proprietary dual acting liquid wear-reducing and extreme pressure additive
LE Gear Oil Performance Data Sheet (PDF)

LE Gear Oil Safety Data Sheet  (PDF)
