Early Hemi Universal Side Engine Mounts

Specs
Sold in Quantity:
Pair
Garage Sale:
No

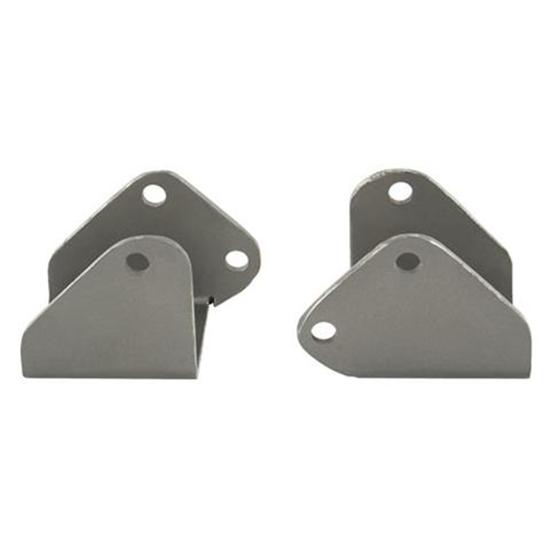

Early Hemi Universal Side Engine Mounts

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

If you want to shoehorn an Early Hemi in your Hot Rod, weve got you covered. These mounts bolt to the side of the block and allow you to use our bolt-thru cushion kit. They have two sets of cushion holes to allow for different frame widths. The frame mounting bracket is up to you to design and build.

For the following side tab configuration on the block:

  • Drivers Side - 2 holes to the front & 1 hole to the rear
  • Passenger Side  - 2 holes to the rear & 1 hole to the front
If the side tabs on both side of the block have 2 holes to the front and 1 hole to the rear, this bracket WILL NOT work.

Item Details

'''51-''58 Chrysler Hemi 331-392
''52-''61 Desoto FireDome V8'

Notes

  1. The drivers side mount sits on the back side of the block ears.
  2. The passenger side mount sits on the front side of the block ears.
  • (This is done to center up the mounts in the chassis)

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

jimmy1937
Verified Purchaser
Oregon

Very good product, went right in with no

October 08, 2014

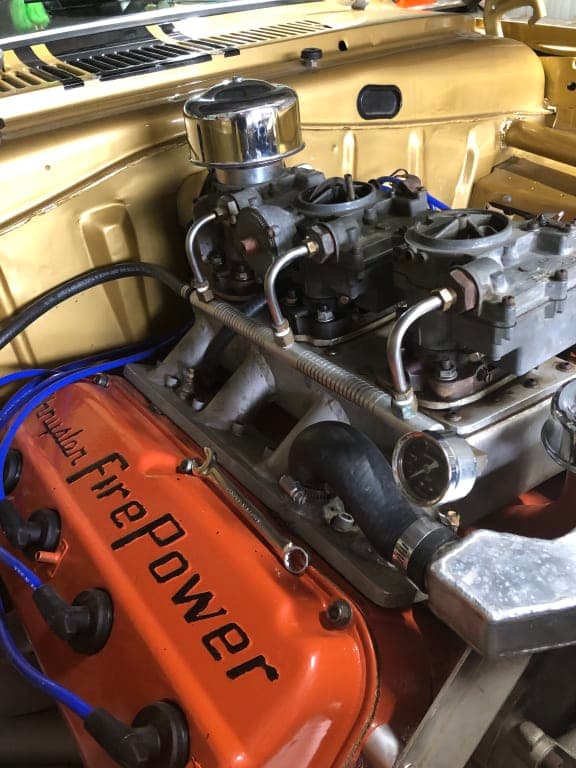

The motor mounts fit very well ,I'm in the process of installing the Hemi in my 1937 Dodge sedan.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

erlihemi
Verified Purchaser
upstate NY

fits Desoto and Chrysler

August 11, 2014
Holes line up. Thats what counts! probably will work on other 50's vintage chrysler V-8s with "ears".
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jerry
Verified Purchaser
frontenac ks

great product ,i would use over again

October 22, 2010
used these on a 75 318 in a 34 dodge ,nice clean set up.
Pros:
  • Clean set up
  • They work perfect nice
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

2 answers

Will these motor mounts work with a 315 Dodge Hemi?

Boydman
Baldwin City, KS 66006, USA
November 19, 2012

Will these motor mounts work with a 315 Dodge Hemi?

Answers

August 12, 2014
erlihemi
Probably not. Dodges didn't have "ears". check your block under the heads.
November 20, 2012
Jason
THESE MOTOR MOUNTS FIT THE SIDE TABS ON THE FOLLOWING MOPAR V-8 ENGINES...... 51-58 CHRYSLER HEMI V-8 52-61 DESOTO V-8 WITH THE FOLLOWING SIDE TAB CONFIGURATION ON THE BLOCK DRIVERS SIDE - 2 HOLES TO THE FRONT & 1 HOLE TO THE REAR PASS SIDE - 2 HOLES TO THE REAR & 1 HOLE TO FRONT IF THE SIDE TABS ON THE BLOCK HAVE THE 2 HOLES TO THE FRONT AND 1 HOLE TO THE REAR ON BOTH SIDES, THE CURRENT VERSION OF THIS BRACKET WILL NOT APPLY
1 answers

will these brackets bolt onto a 67 440 block?

June 20, 2011

will these brackets bolt onto a 67 440 block?

Answers

June 22, 2011
John
These mounts bolt to a ’51-58 Chrysler Hemi or a ’52-61 Desoto Firedome V8 and have two sets of cushion holes for different frame width applications.
1 answers

These are very similar to '63 Studebaker 289 motor mounts. Can I get the dimensions and hole spacing? I'm putting a 289 Stude into my '27 T roadster. These mounts look almost identical to the stock Stude mount. The right side got broken when the original owner pulled the engine and I can't find Studebaker mounts anywhere. Can I please have the dimensions off these? If they fit, it's going to be a lot easier than making some.

Rediron
SE Tennessee
April 07, 2015

These are very similar to '63 Studebaker 289 motor mounts. Can I get the dimensions and hole spacing? I'm putting a 289 Stude into my '27 T roadster. These mounts look almost identical to the stock Stude mount. The right side got broken when the original owner pulled the engine and I can't find Studebaker mounts anywhere. Can I please have the dimensions off these? If they fit, it's going to be a lot easier than making some.

Answers

April 09, 2015
EricM
This motor mount for the early Hemi measures 2 5/8" between the two sides. The side with the two holes measure 1 15/16” center to center, the sides are 3” deep, the side that goes to the cushion has two holes 1” center to center, and all the holes are 7/16” diameter.
