Add to Cart
$153.99

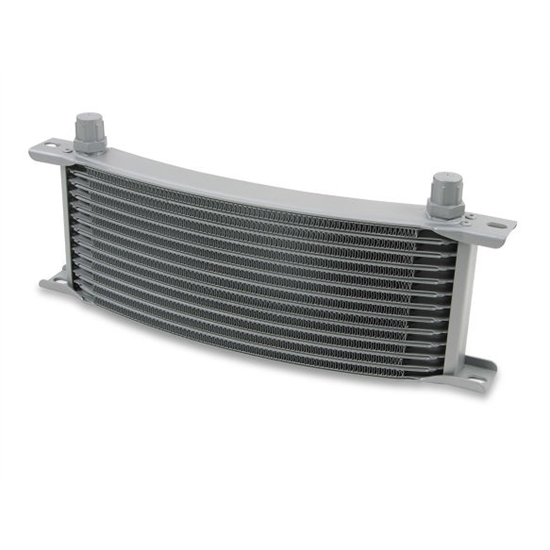

Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow
Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow

Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow
Image Gallery
Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow
Earls 71608ERL Gray -8 AN 16 Row Oil Cooler Core, Narrow
Zoomed In Image
Earls Performance estimates this item will ship on or before August 25th.
Part # 42571608ERL
$153.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Earls Performance to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

GTIN Code:
090127655252
MFG. Part #:
71608ERL
Overall Width:
11.562"
Overall Height:
4.919"
Overall Thickness:
1.25"
Core Width:
8"
Inlet Fitting:
AN 8 Male
Outlet Fitting:
AN 8 Male
Row Quantity:
16
Material Type:
Aluminum
Color:
Gray
Center to Center:
9.05"

Info

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2" coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4" thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.

  • Manufactured in the U.S.A from aircraft spec aluminum alloy, using the latest vacuum brazing technology.
  • Corrugated screen internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest and lightest practical package.
  • Manufactured from thin aluminum plates for the fastest possible heat transfer.
  • Inlet and outlet fittings o-ring to the top plate assembly.
  • Designed for the range of oil flows and air speeds encountered in high performance motorcycles.
  • Available in two widths with inlet and outlet fittings male AN.
  • Every cooler is pressure checked to 175 psi. Periodic samples are burst tested to 350 psi.
