Dynatech Headers, 1-3/4 -1-7/8 Primary, 3-1/2 Collector, Spread Port

SAME DAY SHIPPING! Order within the next 11 hours 27 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.73
Port Width:
1.73
Flange Thickness:
.31
Flange Style:
Spread Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
24.38
Drivers Side Dimension B:
9.00
Drivers Side Dimension C:
20.25
Passenger Side Dimension A:
16.25
Passenger Side Dimension B:
7.75
Passenger Side Dimension C:
31.50
Collector Length:
7.75
MFG. Part #:
702-26510
Garage Sale:
No
Header Tube Type:
Chassis

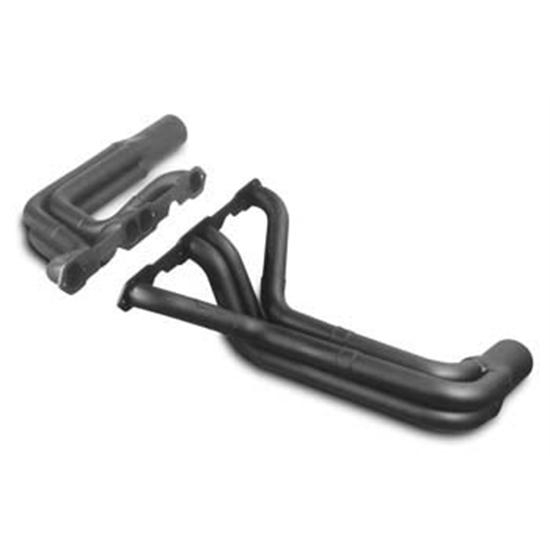

Dynatech®   Headers, 1-3/4 -1-7/8 Primary, 3-1/2 Collector, Spread PortDynatech®   Headers, 1-3/4 -1-7/8 Primary, 3-1/2 Collector, Spread Port
Dynatech®   Headers, 1-3/4 -1-7/8 Primary, 3-1/2 Collector, Spread Port

Click image to enlarge

Speeday Motors Logo
X
Dynatech®   Headers, 1-3/4 -1-7/8 Primary, 3-1/2 Collector, Spread Port

Details

Reviews

Q & A

What's in the Box

  • For Standard Chevy or Crate Engine applications
  • Fits angle or straight plug heads
  • Gaskets, bolts and hardware included

Header Dimension Chart

Application

Fits the following Modified chassis:
  • Harris Chassis
  • Skyrocket Chassis
  • Hughes Chassis
  • Victory Chassis
  • BMS Chassis
  • J Car Chassis
  • Jet Chassis
  • Sardeson Chassis

Item Details

Tube Size: 1.750-1.875 / Coll.: 3.5
