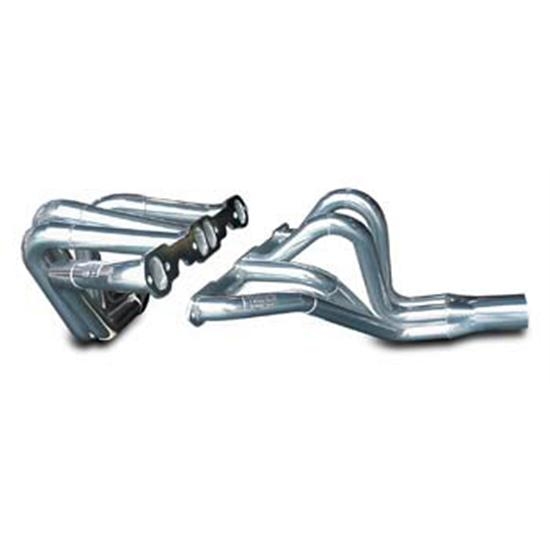

Dynatech® Dirt Late Model Headers, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard

Price:$333.99
Dirt Late Model Header Standard Chevy Flange
Price:
$333.99
PR
In Stock
Item #:
31171116010
Item Details:
Tube Size: 1.750-1.875 / Coll.: 3.5
Dynatech® Dirt Late Model Headers, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard
Click image to enlarge Click image to enlarge
No video at this time.


Fits the following Dirt Late Model chassis:

  • Fast
  • GRT
  • Shaw

Also fits others with 5/8" offset and 6" setback.

Header Dimension Chart

  • 31171116010
    MFG. Part #
    711-16010
    Tube O.D.
    1.750" (1 3/4")
    Collector Diameter
    3.500" (3 1/2")
    Collector Length
    7.750" (7 3/4")
    Flange Style
    Rectangular Port
    Flange Thickness
    0.250" (1/4")
    Port Height
    1.700"
    Port Width
    1.330"
    Drivers Side Dimension A
    28.000"
    Drivers Side Dimension B
    10.400"
    Drivers Side Dimension C
    21.380"
    Passenger Side Dimension A
    16.130"
    Passenger Side Dimension B
    5.000"
    Passenger Side Dimension C
    32.250" (32 1/4")
    Hardware Included
    Yes
    Gasket(s) Included
    Yes
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Pair
