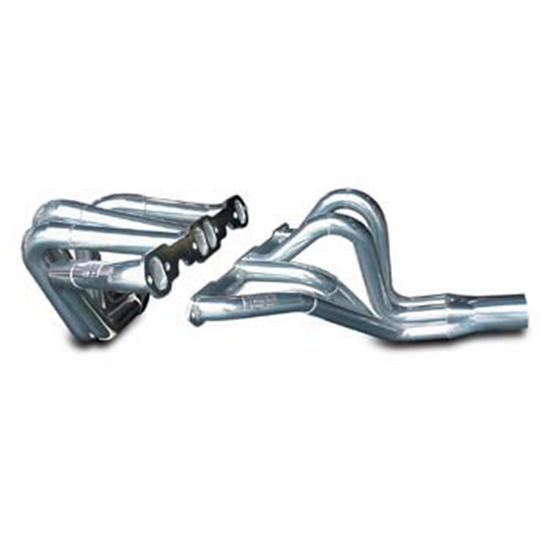

Dynatech Dirt Late Model Header, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard

SAME DAY SHIPPING! Order within the next 37 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.70
Port Width:
1.37
Flange Thickness:
.25
Flange Style:
Rectangular Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
21.05
Drivers Side Dimension B:
12.55
Drivers Side Dimension C:
21.00
Passenger Side Dimension A:
17.20
Passenger Side Dimension B:
9.65
Passenger Side Dimension C:
28.25
Collector Length:
7.50
MFG. Part #:
711-15410
Garage Sale:
No
Header Tube Type:
Chassis
Dynatech® Dirt Late Model Header, 1-3/4 - 1-7/8, 3-1/2 Collector, StandardDynatech® Dirt Late Model Header, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard
Dynatech® Dirt Late Model Header, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard

Click image to enlarge

Speeday Motors Logo
X
Dynatech® Dirt Late Model Header, 1-3/4 - 1-7/8, 3-1/2 Collector, Standard

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Fits the following Dirt Late Model chassis:

  • American Made
  • Barry Wright
  • Bullitt
  • Morris
  • Rocket
  • Swartz

Also fits other models with 2-5/8" offset & 6" setback.

Header Dimension Chart

Item Details

Tube Size: 1.750-1.875 / Coll.: 3.5
