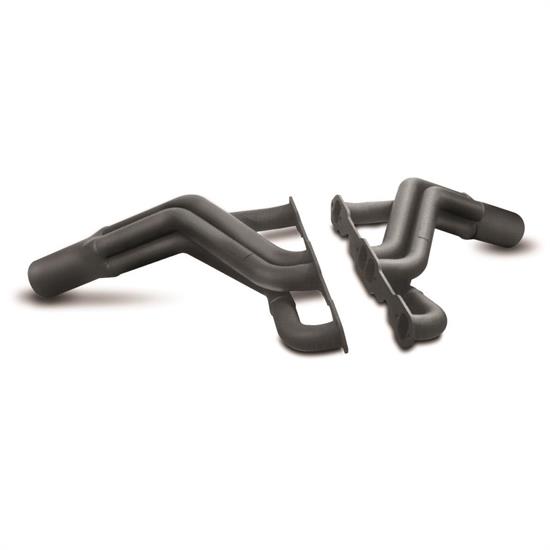

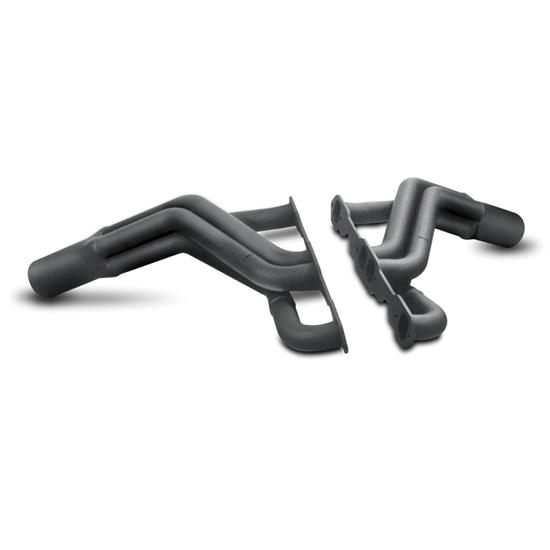

Dynatech Chevy Stock Clip Headers, 1-3/4 - 1-7/8 Primary, 3-1/2 Inch Collector

SAME DAY SHIPPING! Order within the next 3 hours 25 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.75
Port Height:
1.78
Port Width:
1.35
Flange Thickness:
.25
Flange Style:
Rectangular Port
Collector Diameter :
3.50
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
22.00
Drivers Side Dimension B:
9.10
Drivers Side Dimension C:
26.75
Passenger Side Dimension A:
22.13
Passenger Side Dimension B:
8.00
Passenger Side Dimension C:
27.13
Collector Length:
7.75
MFG. Part #:
701-29310
Garage Sale:
No
Header Tube Type:
Chassis
Dynatech® Chevy Stock Clip Headers, 1-3/4 - 1-7/8 Primary, 3-1/2 Inch CollectorDynatech® Chevy Stock Clip Headers, 1-3/4 - 1-7/8 Primary, 3-1/2 Inch Collector
Dynatech® Chevy Stock Clip Headers, 1-3/4 - 1-7/8 Primary, 3-1/2 Inch Collector

Click image to enlarge

Speeday Motors Logo
X
Dynatech® Chevy Stock Clip Headers, 1-3/4 - 1-7/8 Primary, 3-1/2 Inch Collector

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

  • Collectors exit over rails on stock front clip cars
  • For Standard Chevy or Crate Engine applications
  • Fits angle or straight plug heads
  • Gaskets, bolts and hardware included

Header Dimension Chart

Item Details

Tube Size: 1.750-1.875 / Coll.: 3.5

You may also be interested in:

Garage Sale - Stock Clip 1.75


All Dynatech® Stock Clip headers are built with CNC laser-machined flanges. With port holes accurate to .003" and total warp less than .025", you can be assured that you will get all the performance and quality possible from your headers.

Headers go over the frame rails on a stock clip type car. For angle or straight plug heads, 3-1/2" collectors.

  • CNC laser-cut flanges
  • Constructed to fit with proper clearance
  • Optimized tube length for power
