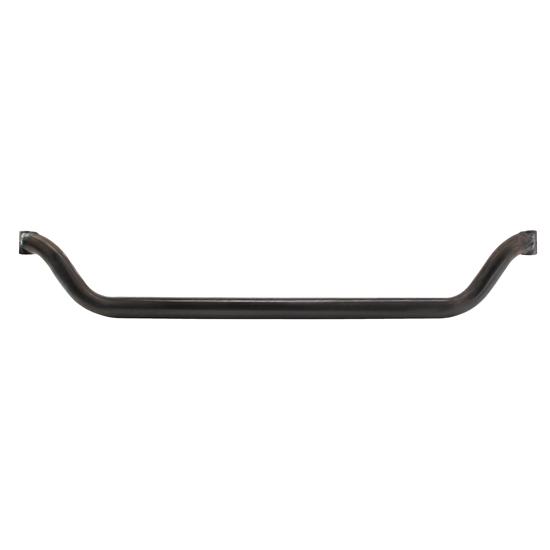

Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 6 Inch Drop

SAME DAY SHIPPING! Order within the next 14 hours 48 minutes and receive same day shipping

Free Shipping Free Shipping
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 6 Inch Drop
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 6 Inch Drop
Product Video
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 6 Inch Drop

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Details

Reviews

Q & A

What's in the Box

If you are looking for that dropped axle gasser look or just need a dropped axle, we've got your deal! Our plain steel, universal application axles are professionally engineered & built. Accommodates different frame widths when using our weld-on spring pads (not included, welding required).

  • Uses '49-'54 Chevy car style spindles
  • 6" drop
  • Axle Tube:  0.250" wall
  • Axle Diameter:  2.00" O.D.
  • Axle Width:  48" kingpin center-to-center

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dons82cam
Verified Purchaser
Guthrie Oklahoma

6" Dropped Axle

February 11, 2015
This axle fit just like I needed it to and put tire where it should be for the look I want. It came packeaged in a heavy duty carton. The axle looks good and fits very well. Was easy line up and get the spring mounts welded up. All in all a great product.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Dons82cam
Verified Purchaser
Guthrie Oklahoma

6" Dropped Axle

February 11, 2015
This axle fit just like I needed it to and put tire where it should be for the look I want. It came packeaged in a heavy duty carton. The axle looks good and fits very well. Was easy line up and get the spring mounts welded up. All in all a great product.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

Will this work on a 1965 Chevy G10 Van?

BiggMexxx
Buckeye, AZ, USA
April 17, 2014

Will this work on a 1965 Chevy G10 Van?

Answers

April 17, 2014
EricM
You could use this axle on nearly anything you can dream. As long as the width is what you need then go for it.
1 answers

is there a left and right side when installing?

joel
March 19, 2014

is there a left and right side when installing?

Answers

March 20, 2014
EricM
With this being a bare axle with no brackets welded to it yet there is no left or right side. Once you mock it up and weld brackets on with the appropriate caster then it will have to be installed correctly left vs. right.
1 answers

Will this axle fit my 1929 Chevy frame

Saltydog
South Charleston, OH 45368, USA
March 03, 2013

Will this axle fit my 1929 Chevy frame

Answers

March 04, 2013
Jason
This 6" dropped gasser front axle will work under a 1929 chevy, you will need to buy the Speedway axle pads that are made to work with 1-3/4" wide springs
1 answers

This axle is 48".....how wide will your hub to hub be with spindles and rotors on it?

Brew
San Leon, TX, USA
November 30, 2012

This axle is 48".....how wide will your hub to hub be with spindles and rotors on it?

Answers

December 03, 2012
Jason
If you use the 9 ¼” rotors the hub to hub face is 56.65” and with 11” rotors 57.05”.
1 answers

Can you use this axle with a 41 Chevy 1/2 ton pickup?

Mattsilvey
October 11, 2012

Can you use this axle with a 41 Chevy 1/2 ton pickup?

Answers

October 12, 2012
Jason
This axle could be used under your 41 Chevy pickup and you would still need the axle pads to weld on at the correct location to match up to the parallel leaf springs on your truck. The axle accepts 49-54 Chevy passenger car spindles but will NOT work with the original 41 Chevy pickup spindles.
