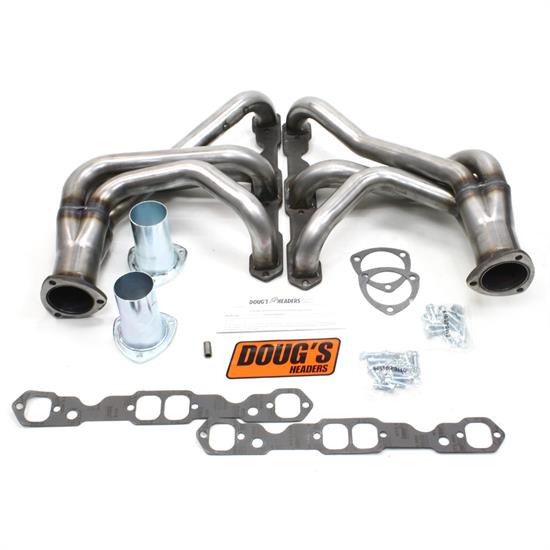

Doug's Headers D334-R Full Length Header, 1-3/4 In, 63-74 SBC, Raw
- This item ships directly from the manufacturer. It may take an additional 2 business days for Dougs Headers to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Doug's PASSENGER CAR HEADERS Long Tube Raw Steel Header development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.
- 3/8" Thick machined flanges...no warping
- CNC mandrel bent tubes... accurate fit & better flow
- Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
- Heavy 16 gauge tubing...longer life
- Tubes are pre-polished to remove scratches and the header is left unfinished (raw steel) for individual customizing
Application1963-1968 Chevrolet Corvette 5.3L/327 V8
1969-1974 Chevrolet Corvette 5.7L/350 V8
1965 Chevrolet Corvette 6.5L/396 V8
- Doug's Headers D334-R 1 3/4" 4-Tube Full Length Header Chevrolet Corvette Small Block Chevrolet 63-74 Raw Steel
- Raw Steel
- Collector: 3
- Port: SAP
- Primary: 1 3/4
- exc. states w/Calif. emission stds
- Fits D-Port heads
- req. left side AC bracket H7608
- removal or modification of locking steering column reqd.
- with Floor Shifter
- with A/C
- For Off-Road Use Only
