Double Throw Toggle Switch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Positions:
Three
Terminal Type:
Spade
Hole Diameter:
.50
Amperage:
25
Voltage:
12

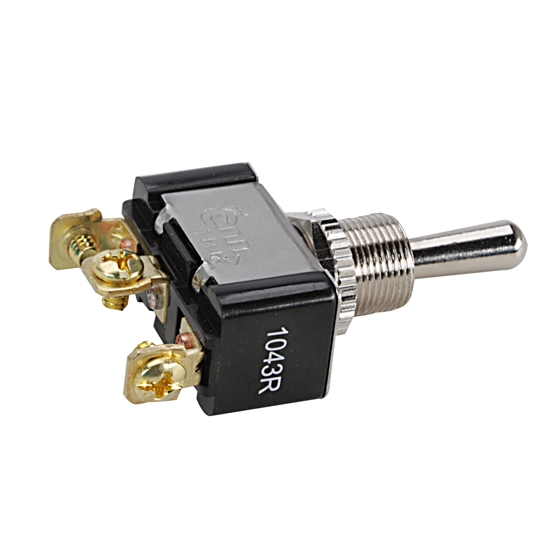

Double Throw Toggle Switch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • Switch Type:  Toggle Switch
  • Circuitry:  SPDT
  • Electrical Rating:  25A at 12V DC
  • Contacts:  Silver
  • Housing:  Plastic with plated steel cap
  • Up Position:  On
  • Center Position:  Off
  • Down Position:  On
  • Terminals:  3 screw
  • Handle Material:  Nickel-plated brass
  • Handle Length:  11/16"
  • Mounting Hardware:  Nickel plated brass face and hex nut
  • Mounting Stem Material:  Nickel plated brass
  • Mounting Stem:  15/32" -32 thread, 15/32" long
  • Mounting Hole:  15/32" panel hole
  • Panel Thickness:  Up to 1/4" thick

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

andys69
Verified Purchaser
Loveland, CO, USA

great product

May 26, 2013
I'm using this switch for the turn signals on my custom hotrod and it is the perfect solution for my car to keep it within colorado law. The price is right in there as well. I would recommend it to anyone working on a budget. Thanks speedway!
Pros:
  • awesome piece!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 2 answers

2 answers

turn signal switch If one was to use this as a turn signal switch. Can you tell me what other components would be required? What wiring diagram would be used? Thanks

jbird
February 19, 2014

turn signal switch If one was to use this as a turn signal switch. Can you tell me what other components would be required? What wiring diagram would be used? Thanks

Answers

June 15, 2014
Backstretch16
This would probably work as an emergency flasher switch, not a good idea for signals.
February 20, 2014
EricM
In wiring a turn signal switch using a double throw switch you would also need a flasher such as 91064047 and simply use a power wire that is hot when the key is on to the flasher and then from the other terminal on the flasher to the 3 way switch and the switch controls the right or left function.
Page 1 of 1
