Diamond A/C Bulkhead Plates with Fittings

Free Shipping Free Shipping
Diamond A/C Bulkhead Plates with Fittings
Diamond A/C Bulkhead Plates with Fittings
Diamond A/C Bulkhead Plates with Fittings

Click image to enlarge

Details

Reviews (2)

Q & A (2)

What's in the Box

Info

When you have to run air conditioning and heater hoses through your firewall, the only way to make it look good is to use bulkhead plates. We make it easy for you to order because we include the four heater hose fittings and two a/c hose fittings required to finish the job.

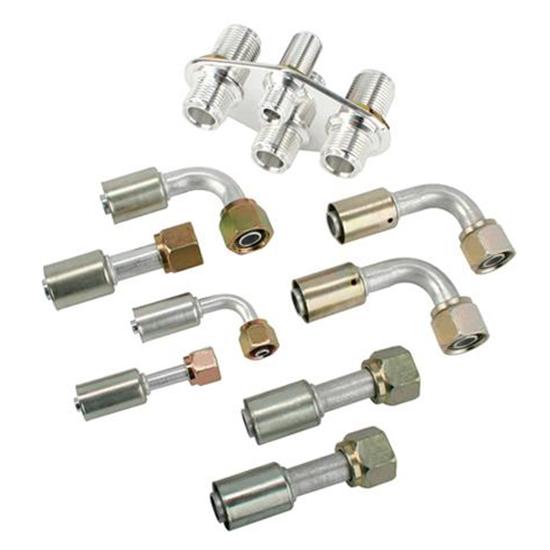

Kit includes:

  • (1) straight fitting for -6 A/C hose
  • (1) 90° fitting for -6 A/C hose
  • (1) straight fitting for -10 A/C hose
  • (1) 90° fitting for -10 A/C hose
  • (2) straight fittings for 5/8" heater hose
  • (2) 90° fittings for 5/8" heater hose
  • (1) bulkhead plate, 2-1/2" x 4-1/2"

You will need to have the fittings crimped on the hoses by your local shop.

Notes

Please note that -6 AC fittings have a 5/8" x 18 TPI size and -10 AC fittings have a 7/8" x 14 TPI size.

Specs

These use 5/8" hose and 3/8" hose.  The O.D. of the tube is .620 for the 5/8 and .312 for the 3/8 hose.

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Blueskies
Verified Purchaser
Australia

AC Bulkhead plates and fitting

May 05, 2014
My first purchase from Speedway, Im in Australia and the goods arrived in less than one week (fantastic ) The item that i purchase was exactly as described. and the fitting were first class. Will be doing more business in the future. If you can keep the postage charges low then more of my mates will be buying here. Well done! Ian S.
Pros:
  • quality and delivery speed
Full Size Image

Was this review helpful? 0 0

ajr
Verified Purchaser
indiana

Highly recommended.

March 16, 2012
Good fit, finish. Included all hardware to finish the job. Good package.
Pros:
  • Looks good performs
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 3 answers

2 answers

Is the bulkhead plate polish aluinum or chrome

William
US
December 30, 2011

Is the bulkhead plate polish aluinum or chrome

Answers

May 06, 2014
Blueskies
Polished Billot
January 02, 2012
John
The bulkhead plate is of polished aluminum.
1 answers

Are the fittings bead lock or barbs?

Butch
Paragould Arkansas
August 15, 2016

Are the fittings bead lock or barbs?

Answers

August 16, 2016
Charles
Expert
These fittings will have a bead that the hose will slide over, then they must be crimped onto the hose by your local shop. They will leak and will not hold any pressure without being crimped.
Page 1 of 1
