Derale Performance Heavy Duty Transmission Cooler

SAME DAY SHIPPING! Order within the next 14 hours 24 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Width:
7.69
Overall Length:
16.75
Sold in Quantity:
Each
Overall Thickness:
.88
Finish:
Powder Coated
Core Height:
13.00
Core Width:
7.50
Core Thickness:
.75
Tube Size:
.50
Outlet Fitting:
.46
Hardware Included:
Yes
MFG. Part #:
13103
Tube Count:
6
Notes

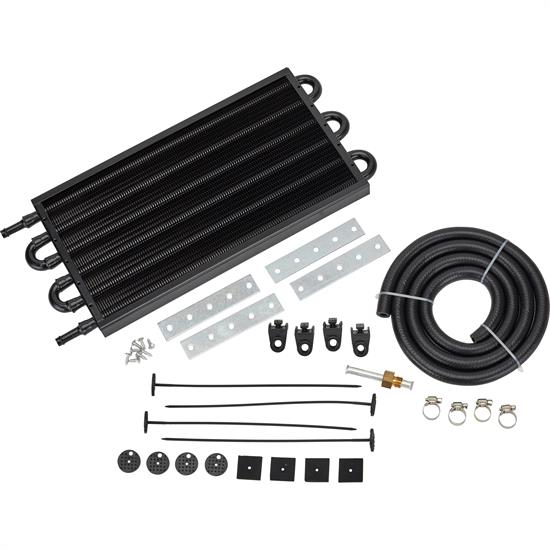

Comes with hardware, EZ-tie style mounting rods/clips, 4.00' of hose, and radiator outlet adapter.
Derale Performance Heavy Duty Transmission CoolerDerale Performance Heavy Duty Transmission Cooler
Derale Performance Heavy Duty Transmission Cooler

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Use this 6-pass automatic transmssion cooler in place of radiator lower tank cooler, or as a supplement to it. Prevents heat related transmission issues to extend the life of the transmission. Improves transmission performance under high loads.

  • Copper tubing expanded into aluminum cooling fins
  • Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
  • Extruded plastic cooling fin guards
  • 11/32" hose barb inlets
  • 18500 GVW rated

Installation Diagram (Link)

Notes

  1. Core width is 13-3/4".
  2. Inlet/outlet center-to-center is 6-1/4".

Item Details

7-1/2" x 16" x 3/4" 6-Pass
