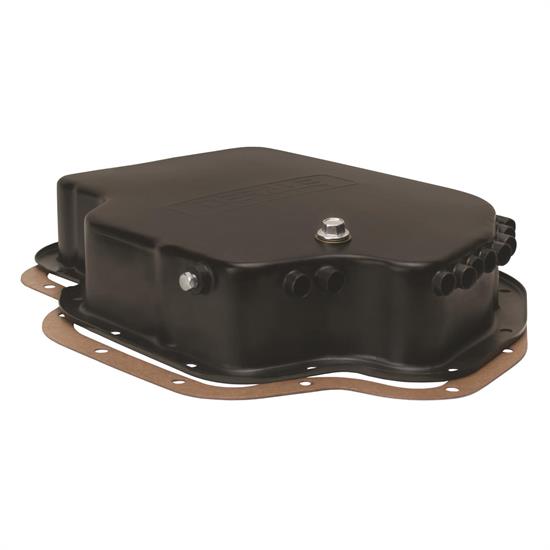

Derale 14201 TH400 Standard Transmission Cooling Pan

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Color:
Black
Finish:
Painted
Depth:
2.875
Gasket(s) Included:
No
Hardware Included:
No
Drain Plug:
Yes
Notes
Includes 1/8" NPT temperature gauge sender port.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Derale has been making quality transmission cooling pans for over 25 years, and this Turbo 400 "shallow" pan is designed with the performance enthusiast in mind. Fits most '66-'90 GM TH400 transmissions.

  • Reduces fluid temperatures 20-50° F
  • Heavy gauge stamped steel construction
  • 3 qts. 8oz. of extra capacity
  • Two-stage heat dissipating black finish
  • Patented turbulator cooling tubes add heat transfer capability
  • 1/8" NPT temperature sender port
  • Drain plug features increased magnetic strength & reuseable rubber/steel washer

Specs

  • Pan Depth:  2-7/8"
  • Tube Depth:  2"
  • Extra Capacity:  3 quarts, 8 oz.
  • Temp Bung Size:  1/8" NPT

Item Details

Shallow Pan, 2-7/8" depth
