Deluxe Disc Brake Kit, 1955-1964 Chevy Full-size Car, Stock Spindle

SAME DAY SHIPPING! Order within the next 2 hours 4 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
11.00
Caliper Finish:
Natural
Rotor Construction:
Vented
Caliper Pistons:
Single
Rotor Location:
Front
Rotor Shape:
Round
Hardware Included:
Yes
Garage Sale:
No
Drilled:
No
Slotted:
No
Stud Length:
.80
Stud Diameter:
.44
Rotor Thickness:
1.05
Track Width Increase:
1.75
Notes
For '55-'64 Chevy fullsize cars. Will work with 14" and larger wheels intended for use with disc brakes. Will not fit 2" drop spindles. Kit does add 1-3/4" total track width (7/8" per side). Includes rotors, calipers, caliper brackets, bearings, seals, brake pads, brake hoses, and hardware.
Deluxe Disc Brake Kit, 1955-1964 Chevy Full-size Car, Stock Spindle
Product Video
Deluxe Disc Brake Kit, 1955-1964 Chevy Full-size Car, Stock Spindle

Click image to enlarge

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

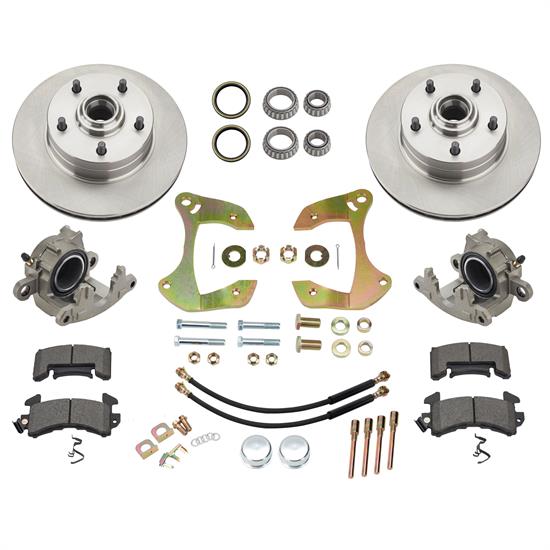

What's in the Box

These kits allow you to mount front disc brakes on your 1955-1964 Chevy full-size car (Bel-Air, Biscayne, Impala, 150 Series, 210 Series). Front disc brakes provide a significant improvement in braking performance versus the drum brakes your old Chevy came with. This disc brake kit works with stock, drum brake spindles only - it does not work with 2" drop spindles. Kit will work with 14" wheels intended for disc brake applications, as well as most 15" (or larger) wheels.

Rotors are 11" diameter with 5 on 4-3/4" bolt pattern and calipers have 7/16"-20 inlets. This kit will increase track width 7/8" per side or 1-3/4" total when installed.

  • 11" Rotors
  • 5 on 4-3/4" - bolt pattern
  • Metric calipers
  • Calipers mount behind axle (rearward)
  • Will work with 14" & larger wheels intended for use with disc brakes
  • Bearings, pads, brackets included
  • Seals and hoses
  • Hardware included
  • Increases trac-width 7/8" per side
  • For '55-'64 Chevy fullsize cars.

910-31911 Instructions (PDF)



Notes

  1. This kit will not work with the original '55-'64 Chevy 4-wheel drum brake master cylinder. It does not have the capacity to supply the proper amount of pressure for front disc brakes. For best results, we recommend using master cylinder booster kit 910-31974 with this front disc brake conversion.
  2. Front drum-to-disc brake conversions also require a proportioning valve to be installed in the rear brake line circuit. The proportioning valve modulates pressure to the rear brakes which is necessary to prevent the rear brakes from locking up in an emergency stop situatiuon. Recommended master cylinder booster kit 910-31974 also incudes an adjustable proportioning valve to allow for a proper installation of front disc brakes.

Customer Reviews

Rated 4.6 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
6
4 Stars
4
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

preacher
Verified Purchaser
PAMPA, Tx.

Disc brake kit

July 22, 2015
Great addition to any vehicle you want to upgrade
Pros:
  • Very User Friendly And Af
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Elmer 's 55
Verified Purchaser
Verified Reviewer
Stephenville,Texas

good valve fixes well as well speedy always got good parts

May 25, 2015
great part's fixes first time wonderiful fix
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

neal64
Conger, MN 56020, USA

Comprehensive kit at an unbeatable price

November 04, 2013
You cannot beat this price. Nothing is left out of this kit. The calipers are a standard Metric caliper so parts are amazingly easy to find if future repairs/replacements are needed. Great product without a doubt!
Pros:
  • Easy To Install
  • standard components
Cons:
  • pads supplied in kit are a cheap pad
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BOBBO301
Cumberland, MD, USA

THIS PRODUCT IS EASYTO INSTALL, AND WORK

September 29, 2013
I INSTALLED THIS PRODUCT IN A COUPLE OF HOURS, USING EVERYDAY BASIC TOOLS IT WAS AN EASY UPDATE TO MY 57 CHEVY BEL AIR, THE DISC BRAKE KIT,WAS A GREAT IMPROVEMENT OVER THE OLD DRUM BRAKES. I AM AMAZED AT THE EASE OF INSTALLATION, AND WONDERFULLY IMPROVED BRAKING.
Pros:
  • WORK GREAT
  • easy update to brakes
  • recomend this product
Cons:
  • Can't think of any
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

craigster
s.e. Ohio

very east installation

September 27, 2013
Of course shipping was great and the disc brake kit fit perfect, did it in an afternoon. brakes are firm and stop way better than my 55 wagon has ever seen LOL. Great product!!
Pros:
  • Easy Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hirolr64
Dallas, TX, USA

Worked well for my 64 Impala

February 18, 2013
I looked into the same disc brake kit from anther vender and they couldn't beat Speedway's price. Easy to install and works mush better with a new brake booster and master cylinder. I'm using 14x7 reverse wire wheels and they fit great, just my stock 14" didn't fit so I bought some disc type stock 14" rims when I ride stock with the hubs. Next I will be looking into buying the rear disc brake kit.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hirolr64
Dallas, TX, USA

Worked well for my 64 Impala

February 18, 2013
I looked into the same disc brake kit from anther vender and they couldn't beat Speedway's price. Easy to install and works mush better with a new brake booster and master cylinder. I'm using 14x7 reverse wire wheels and they fit great, just my stock 14" didn't fit so I bought some disc type stock 14" rims when I ride stock with the hubs. Next I will be looking into buying the rear disc brake kit.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ape perkins
Verified Purchaser
wiggins ms.

"I would buy this product again

August 19, 2012
I am satified wheth thes products. I have recmened to customers and frinds. The price is good to speedway make it good for us poboy that wants to have a car. thank APE.
Pros:
  • Reliable
  • High-Performance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Spockistheman
Verified Purchaser
Central Kentucky

Complete kit that works great

April 23, 2012
Looks great on car, but doesn't work much better than stock drums. However adding a booster will have to help. Car needs an alignment once installed, toe will be way off. Instructions are very vague and generic.
Pros:
  • Fit together good
  • Complete high quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Spockistheman
Verified Purchaser
Central Kentucky

Complete kit that works great

April 23, 2012
Looks great on car, but doesn't work much better than stock drums. However adding a booster will have to help. Car needs an alignment once installed, toe will be way off. Instructions are very vague and generic.
Pros:
  • Fit together good
  • Complete high quality
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

11 questions : 11 answers

1 answers

would this work on a 63 Buick Lesabre?

Bigdog1077
Waukesha, WI, USA
March 15, 2015

would this work on a 63 Buick Lesabre?

Answers

March 16, 2015
EricM
In those years the Chevy and the Buick did not share the same spindle and the brake kits will not interchange to the Buick. Sorry we do not offer the correct kit for your application.
1 answers

Will this kit work with standard 1957 Chevrolet rims ? Thank you :-)

Petedelete11
October 21, 2014

Will this kit work with standard 1957 Chevrolet rims ? Thank you :-)

Answers

October 23, 2014
EricM
No your stock 1957 Chevy wheels will not fit with this kit. Stock 14” Chevy wheels from the pre-disc brake era wrap around the original brake drums and cause interference with disc brake calipers. There are several different stock looking wheels that are disc brake compatible such as number 250025534 in 15”
1 answers

Will work with original 15" steel rims? Does offset the wheels? Can I just remove the existing drum system, and replace with this kit using bolts only to the existing spin, will it offset the wheels? Can I use the original 15" steel rims?

Dajja
Miami, FL, USA
August 09, 2014

Will work with original 15" steel rims? Does offset the wheels? Can I just remove the existing drum system, and replace with this kit using bolts only to the existing spin, will it offset the wheels? Can I use the original 15" steel rims?

Answers

August 11, 2014
EricM
This brake kit works with most 15” wheels and even 14” disc brake compatible wheels. The increase in offset is 7/8” per side or a track width change of 1 3/4 “ increase.
1 answers

What size lug nuts fit studs in kit?

Southwest
Southwest
March 27, 2014

What size lug nuts fit studs in kit?

Answers

March 28, 2014
EricM
The lug studs are 7/16"
1 answers

what proportioning valve will i need? what proportioning valve will i need to use for my '64 impala sport coupe w/283 & w/o AC,using the Deluxe Disc Brake Kit, 1955-1964 Chevy Full-size Car, Stock Spindle?

coop72
March 16, 2013

what proportioning valve will i need? what proportioning valve will i need to use for my '64 impala sport coupe w/283 & w/o AC,using the Deluxe Disc Brake Kit, 1955-1964 Chevy Full-size Car, Stock Spindle?

Answers

March 18, 2013
Jason
Using our brake kit number 91031911 on your 64 Impala requires an adjustable proportioning valve such as number 91031353 in the line to the rear brakes if still using the stock rear drum brakes. If you are upgrading to a dual reservoir master cylinder such as our number 91031445 we offer a non adjustable that would be close under number 91031364. If you are also upgrading to power brakes we offer a kit number 91035864 that comes with a non adjustable proportioning valve.
1 answers

does this kit bolt on stock 1964 biscayne spindles?

dyno
detroit
February 19, 2011

does this kit bolt on stock 1964 biscayne spindles?

Answers

February 23, 2011
Bill
This disc brake kit p/n 91031911 will work on your 1964 Biscayne stock spindles as well as Bel-Air, Impala. The kit features 11" rotors with 5 on 4-3/4" bolt pattern, calipers, brake pads, rubber lines, seals, bearings, brackets and hardware to install the kit.
1 answers

Will this kit work on a 1960 Oldsmobile Super 88?

Highway40hotrodsandcustoms
Rocheport,mo
August 20, 2011

Will this kit work on a 1960 Oldsmobile Super 88?

Answers

August 22, 2011
John
This kit is applicable to the 1955-64 Chevy cars and will not work properly on Buick, Olds, or Pontiac. Minor to major bracket and or spindle modification would be required.
1 answers

Will this replace the drum brakes on my 1967 camaro?

New Mexico
August 18, 2011

Will this replace the drum brakes on my 1967 camaro?

Answers

August 19, 2011
Jason
No, you will want to use brake kit number 91031958. With a drum spindle you will need to machine boss on spindle for bracket to fit proper. There is not a direct bolt on disk kit for drum spindles.
1 answers

If I convert my 64 Impala to disc will I still be able to mount my 13x7 rims with this conversion kit? Some people say yes and some say no? I want to convert over but just cautious about doing so. Thanks.

Mastagee
SD, Ca.
March 27, 2011

If I convert my 64 Impala to disc will I still be able to mount my 13x7 rims with this conversion kit? Some people say yes and some say no? I want to convert over but just cautious about doing so. Thanks.

Answers

March 30, 2011
Bill
No this will not work with 13" rims. This kit it will only work with 14" wheels intended for disc brake applications, as well as most 15" (or larger) wheels. To use this kit you would need to change your wheels.
1 answers

I have a 55 Chevy 150. I want to convert to disc/drum combo keeping the manual brakes using Disc Brake Kit 910-31911 with the GM Corvette Master Cylinder 910-31321 and the Adjustable Proportioning Valve 910-31353.I now have the stock single MC with a single 1/4" line feeding all 4 brakes thru junction blocks into smaller 3/16" lines. Can I use all these original lines and the original push rod too?

Charles
San Diego,CA
August 12, 2015

I have a 55 Chevy 150. I want to convert to disc/drum combo keeping the manual brakes using Disc Brake Kit 910-31911 with the GM Corvette Master Cylinder 910-31321 and the Adjustable Proportioning Valve 910-31353.I now have the stock single MC with a single 1/4" line feeding all 4 brakes thru junction blocks into smaller 3/16" lines. Can I use all these original lines and the original push rod too?

Answers

August 12, 2015
Wayne
Expert
The brake lines can be used, although depending on the age of them you might consider replacement. Brake Fluid has properties which cause it to absorb moisture. The moisture in the brake lines can cause a lot of rust to develop. Also you may need to add some adapters to allow the lines to connect properly to the new components. Your choice. When replacing a master cylinder, reusing the original push rod is the most logical choice. In some cases more length or less length may be required. Basic mock up to determine length would be the first step in making a choice. After assembly if you should notice excessive travel in the brake pedal before it starts to push into the master cylinder or that the brakes tend to not release fully after applications, you will likely need to change the push-rod. We offer several push-rods and the choice varies between applications.
