Deluxe '27 Bare Model T Frame

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Garage Sale:
No
Notes
1.50" x 3.00" tube rails. Includes front spring perch only.

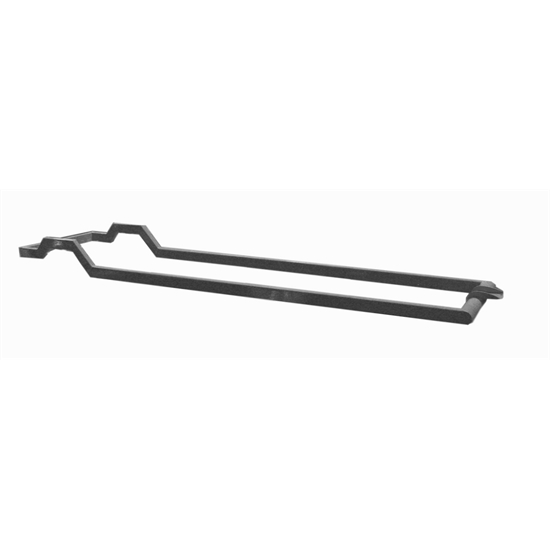

Deluxe '27 Bare Model T Frame
Product Video
Deluxe '27 Bare Model T Frame

Click image to enlarge

Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Details

Reviews

Q & A

What's in the Box

These are great for the do-it-yourself fabricator and builder. These are the same frames as our frame assemblies, but have no suspension or steering mounts installed. You can build your own or adapt components you acquire separately.

  • 1-1/2" x 3" rectangular steel tube rails
  • 3" O.D. round tube front crossmember
  • Designed for spring-behind front axles
  • Front perch accommodates 1-3/4" wide spring

If you wish to add engine/suspension/steering mounts to your frame, simply purchase these items along with your frame.

This product requires a 3-4 week build time.

'27 Deluxe Chassis Exploded View (Link)



Item Details

w/ Front Spring Perch only

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Lowroder
Toledo,Ohio
Product Rating

Great Starter Frame

September 20, 2013
This Was A Great Frame. I Added The Motor An Trans Mount An The Vega Steering Mounts. My Engine An Trans Was A Easy Install. I Had A Complete Rolling Chassis In No Time.
Cons:
  • should have a 4 link upgrade option
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
7154600

Product Q&A

8 questions : 9 answers

1 answers

Which option to have rear suspension tabs welds I would like to start with the 1927 frame, and add my own front suspension. I saw the option to have the engine/trans mounts. I also saw the option for the for 9" housing. Which part number to have the rear suspension mounting tabs welded on?

jsmaikell
Euless, TX
February 25, 2015

Which option to have rear suspension tabs welds I would like to start with the 1927 frame, and add my own front suspension. I saw the option to have the engine/trans mounts. I also saw the option for the for 9" housing. Which part number to have the rear suspension mounting tabs welded on?

Answers

February 25, 2015
EricM
We offer this frame bare like shown or with the front and rear suspension. Sorry we do not offer it with only a rear suspension.
1 answers

Can this frame be modified with a model A style front cross member? I'm going for that A or Duece look..

jdgraves
November 02, 2014

Can this frame be modified with a model A style front cross member? I'm going for that A or Duece look..

Answers

November 03, 2014
EricM
This frame is designed for the low ride stance and modifications to make it accept a spring on top of the axle configuration would be up to the builder. A different front cross member would be needed to accept the spring and then also the front would be considerably higher than the rear which would also require changes to the rear of the frame and suspension mounts. If running a T body the width would be appropriate but if not then we do offer a model A frame number 91657145 or individual components to build an A style frame and with the individual parts could build it in the width desired. Other alternative would be some 1 ½ x 3 tubing and build from scratch.
1 answers

Max HP fame can hold What is the maximum horse power these frames can handle ? I l looking at a twin turbo LSx build and breaking 1000 WHP is a very real possibility and I don't want to turn this into a pretzel first trip out.

PappySmear
Pacific Junction, IA 51561, USA
August 22, 2014

Max HP fame can hold What is the maximum horse power these frames can handle ? I l looking at a twin turbo LSx build and breaking 1000 WHP is a very real possibility and I don't want to turn this into a pretzel first trip out.

Answers

August 22, 2014
EricM
There is not a horsepower rating on this frame. If I were planning to install a 1000 HP engine into a frame like this I would add X bracing and crossmembers everywhere possible.
1 answers

Available for in store pick up or delivery only ? I am doing two steel body 1927's. One Roadster and one Touring Sedan I happen to be local well an hour drive to the store. Can these be picked up to save shipping or do I have to have them shipped ?

PappySmear
Pacific Junction, IA 51561, USA
August 20, 2014

Available for in store pick up or delivery only ? I am doing two steel body 1927's. One Roadster and one Touring Sedan I happen to be local well an hour drive to the store. Can these be picked up to save shipping or do I have to have them shipped ?

Answers

August 20, 2014
EricM
Yes this frame can be picked up at our warehouse in Lincoln, NE. Be sure to put your order in ahead of time for this frame so that we have it ready for you. Frames and T bucket kits require a little extra time for us to get your order ready so they must be ordered in advance when picking them up from our parts counter.
1 answers

MSO offered with frame or kits only?

Tribute
Houston, TX, USA
December 01, 2013

MSO offered with frame or kits only?

Answers

December 02, 2013
EricM
Sorry I can only supply an MSO with a kit that includes the frame and body.
1 answers

What is the overall width of this frame?

Massachusetts
May 15, 2012

What is the overall width of this frame?

Answers

May 17, 2012
Jason
FRONT WIDTH- 23 1/2" REAR WIDTH- 29 1/2" KICKUP- 6 3/4" (TOP OF FRONT RAIL TO TOP OF REAR KICKUP) OVERALL LENGTH- 132 1/2"
2 answers

will this frame work for an original steel body 27 t roadster ? what kind of suspension do you use ? thanks

June 26, 2011

will this frame work for an original steel body 27 t roadster ? what kind of suspension do you use ? thanks

Answers

September 21, 2013
Lowroder
It Should. I Used A Fabricated Model A Truck Cab An Bed With This Frame. The Original Steel Roadster Is Very Close To The Fiberglass Body.
June 29, 2011
John
This frame is of hot rod design and not intended as an OEM type replacement. The original ’27 frame had straight frame rails with NO kick up over the rear end for the lower ride height and the length at the rear was different. The front and rear dimensions side to side or width is different and the front spring sat up in a cross member and our hot rod frame uses a spring behind the axle set up to get a lower ride height. Wheel base is different at 116”. It would be difficult and take considerable alteration to the frame and your body to make it work as an original replacement frame. Front is set up for spring behind solid axle and the rear we use is normally coil over in configuration.
1 answers

Does it come with a title or how do you get them titled

chris
rock hill,sc
April 22, 2015

Does it come with a title or how do you get them titled

Answers

April 23, 2015
Eric
Expert
We can supply MSO paperwork once you have the vehicle completed and are ready to apply for a title at your local DMV. Each state has different laws and processes for applying for and aquiring a title. Check with your DMV for information about the process.
Page 1 of 1
