Deluxe 1923 T Frame Kit w/ Deluxe Body and Bed, Channeled Floor

Specs
Sold in Quantity:
Kit
Garage Sale:
No
Notes
Includes frame, Chevy spindles, chrome suspension, and fiberglass body with channeled floor.
Deluxe 1923 T Frame Kit w/ Deluxe Body and Bed, Channeled Floor
Product Video
Deluxe 1923 T Frame Kit w/ Deluxe Body and Bed, Channeled Floor

Click image to enlarge

Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Watch the video below to learn more about Speedway Motors street rod spindles.

Details

Reviews

Q & A

What's in the Box

The all new Deluxe T frame is engineered to deliver the ultimate ride and handling of any T-bucket chassis! An exclusive triangulated four-bar rear suspension with coilover shocks and urethane bushings provides unparalleled adjustability and traction control, plus better ride quality than any other T-bucket chassis on the market. It's paired with urethane-bushed four-bars supporting the spring-behind-axle front suspension. The Deluxe '23 T sets a new standard for the next generation of T-buckets!

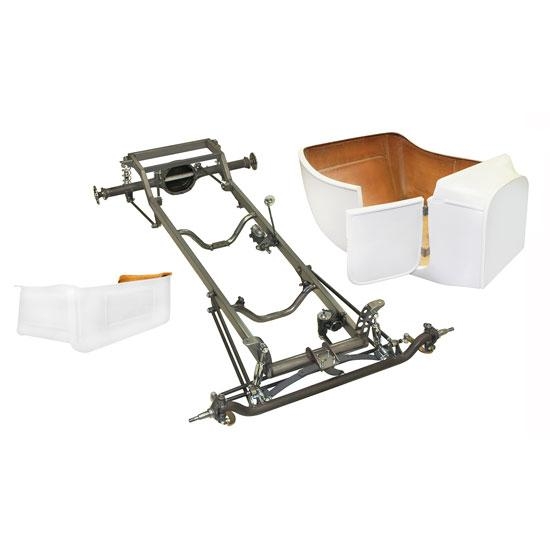

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Chassis Exploded View (Link)

This product requires a 3-4 week build time.

If ordering the body kit without a floor (715-3200), please note that the door will not be hung. If you order a body kit with a floor (715-3211 or 715-3221), the door will be fitted & hung on its hinges before shipping.

Notes

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Frame Assembly

  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle
  • Urethane-bushed front four bars and panhard bar
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Combination headlight and front shock mounts
  • Innovative triangulated four-bar rear suspension with urethane bushings and coilover shocks
  • Cross steering with Vega steering box
  • Frame assembly include: front spring, axle, spindles, and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components

Deluxe Body

  • Rugged fiberglass body
  • Hinged right hand door
  • Flat, smooth firewall
  • Molded-in flat dash
  • Body lip around top edge to attach upholstery
  • One-piece 20" T pickup bed
  • Available with a channeled floor



Item Details

Door is Hung
Body 715-2556

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

BraxBucket
Indiana
Product Rating

Better than expected!

April 02, 2014
All I can say is wow! I have waited 20 years to build my T-Bucket and I was so excited when it arrived yesterday. The frame was mostly assembled and is great condition. Packaging was good and zero damage. Plus it arrived in only 2 days. Thanks Speedway!
Pros:
  • Fast Shipping
  • awesome customer service
  • as expected
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

Windshield Type? I cannot find anywhere in your catalogue listing windshield options for the 23 T-Bucket. All other kits are mentioned but not the 23. What are the options? Thanks. - Dwleo

1 answers
Dwleo
Vancouver, BC, Canada
March 09, 2015

Windshield Type? I cannot find anywhere in your catalogue listing windshield options for the 23 T-Bucket. All other kits are mentioned but not the 23. What are the options? Thanks. - Dwleo

Answers

March 13, 2015
EricM
Our most popular windshield for our T’s is 55522322 which is mounted to the Speedway body using “short” posts 91656231. The windshield frame is 20” tall and 39-5/8” wide.

Does this kit come with the trans tunnel and the fire wall reinforced? Tbucket

1 answers
matt93
October 20, 2014

Does this kit come with the trans tunnel and the fire wall reinforced? Tbucket

Answers

October 20, 2014
EricM
Yes the floor, transmission tunnel, and firewall are installed and no extra reinforcement is needed on those areas.

Do your frames have tabs for radiator mounting such as part number 820z4811?

2 answers
Cshannon
Texas
April 07, 2013

Do your frames have tabs for radiator mounting such as part number 820z4811?

Answers

July 01, 2014
bcg65714
What other parts will I need to build your beluxe 1923 kit w/body and bed , channeked floor?? Do you have a list of parts needed
April 08, 2013
Jason
Speedway’s T frames are the proper width to allow the radiator to sit down inside the frame rails and the radiator tabs sit directly on top of the frame rails.

The ford 9" fits this frame correct?

1 answers
Bryce
Tuscaloosa, al
September 01, 2011

The ford 9" fits this frame correct?

Answers

September 01, 2011
Zach
Our T bucket frames are all built to use a 9" ford. The frame does not come with any mounts or hardware to assist installing a 9" rear unless you buy the 9" rear axle option. If you buy this option, you get the 9" housing, 31 spline axles, bearings, and all the necessary brackets will be welded onto the frame.
