Deluxe '23 T-Bucket Frame Kit w/ Deluxe Body

Price: $124.99 - $6,299.99
Click image to enlarge Click image to enlarge
Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Watch the video below to learn more about Speedway Motors street rod spindles.


The all new Deluxe T frame is engineered to deliver the ultimate ride and handling of any T-bucket chassis! An exclusive triangulated four-bar rear suspension with coilover shocks and urethane bushings provides unparalleled adjustability and traction control, plus better ride quality than any other T-bucket chassis on the market. It's paired with urethane-bushed four-bars supporting the spring-behind-axle front suspension. The Deluxe '23 T sets a new standard for the next generation of T-buckets!

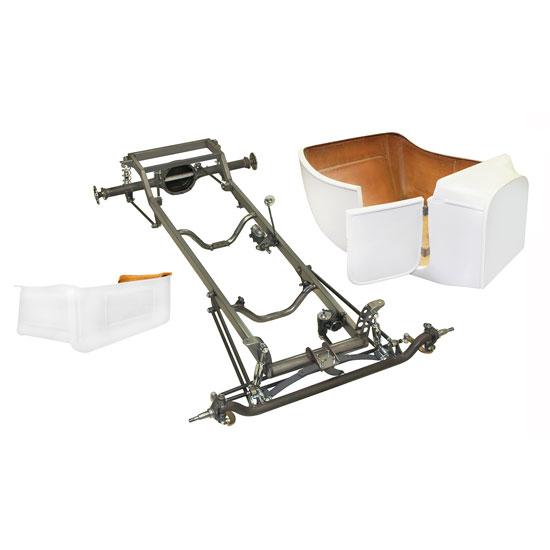

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Chassis Exploded View (Link)

This product requires a 3-4 week build time.

Frame Assembly
  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle
  • Urethane-bushed front four bars and panhard bar
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Combination headlight and front shock mounts
  • Innovative triangulated four-bar rear suspension with urethane bushings and coilover shocks
  • Cross steering with Vega steering box
  • Frame assembly include: front spring, axle, spindles, and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components

Deluxe Body

  • Rugged fiberglass body
  • Hinged right hand door
  • Flat, smooth firewall
  • Molded-in flat dash
  • Body lip around top edge to attach upholstery
  • One-piece 20" T pickup bed
  • Available with no floor, an un-channeled floor, or a channeled floor
  1. If ordering the body kit without a floor (715-3200), please note that the door will not be hung. If you order a body kit with a floor (715-3211 or 715-3221), the door will be fitted & hung on its hinges before shipping.
  • Body Dimensions
    • Total Length:  52"
    • Firewall Width:  26.5"
    • Body Width:  45"
    • Body Height:  24"
Reviews for Item #: 7153400
Be the first to review this product. Write a Review


Questions and Answers for Item #: 7153400

Get your questions answered by the community. Ask or answer questions below.

8 Questions | 8 Answers
Displaying Questions 1-5 of 8
Processing

Q:

On the 7153411 t bucket kit what is the floor made of. Can I get the floor after the kit is order...

Asked on 1/16/2011 4:45:38 AM by d himeback from Bechtelsville Pa

Answers (1) Know the answer? Answer this question

Q:

By the video the body if purchased channeled with floor the holes are drilled for column?

Asked on 3/20/2011 1:27:26 PM by wizard from Freeport IL

Answers (1) Know the answer? Answer this question

Q:

I see the questions regarding the floor and holes for the column and master cylinder, My question is, ordering a deluxe body with the channeled floor is the trans tunnel and firewall re-enforcement part of it as shown in the video? Thanks

Asked on 4/29/2011 9:11:18 AM by old drag racer new streetrodder from Plant City, Florida

Answers (1) Know the answer? Answer this question

Q:

do you offer any powder coating?

Asked on 7/2/2011 11:13:17 AM by TJ from Savannah, Ga

Answers (1) Know the answer? Answer this question

Q:

Is this kit available in right hand drive?

Asked on 7/16/2011 12:56:24 AM by LukeDean from Sydney,Australia

Answers (1) Know the answer? Answer this question
Displaying Questions 1-5 of 8
