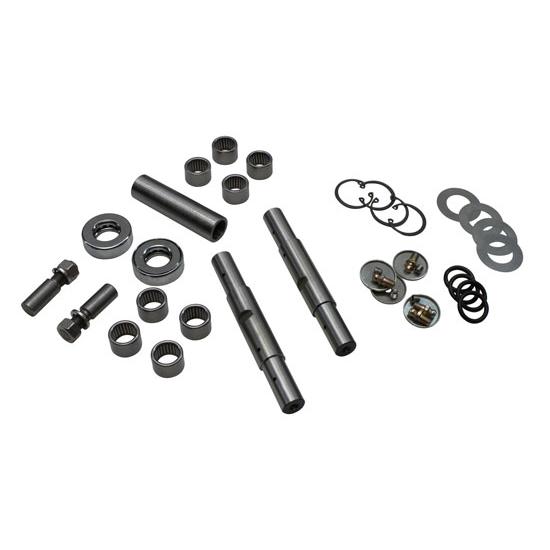

Deluxe 1949-54 Chevy King Pin Set

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Kit
Needle Bearing O.D.:
1.067
Bearing Surface O.D.:
.811
Notes
Axle boss surface area of pin is .867"
Deluxe 1949-54 Chevy King Pin Set

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Speedway deluxe king pins are a great improvement over stock-style king pins. They replace the original brass king pin bushings with precision needle bearings that provide superior strength, better lubrication and easier steering. They're simple to install and are an easy, cost-effective way to upgrade your 1949-54 Chevy suspension, as well as tubular or I-beam street rod axles using 1949-54 Chevy spindles.

Use with 916-32100 or 916-32104 spindles.

Spindle Identification Chart (GIF)

910-32117 Instructions (PDF)

Notes

  1. This deluxe king pin kit requires the spindle bore to be enlarged to a minimum of 1.0620" and a maximum of 1.0630" to properly accept the king pin bearings.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

what is the length of this king pin

September 10, 2011

what is the length of this king pin

Answers

September 12, 2011
Jason
This ling pin is 5.3" long
1 answers

Does this Royal Kingpin fit a stock 1958 Corvette? Aloha, Eric

honolulu, hawaii
July 25, 2011

Does this Royal Kingpin fit a stock 1958 Corvette? Aloha, Eric

Answers

July 27, 2011
John
These king pins fit the 1949-54 Chevy cars and carry the following king pin dimensions. O.D. of .867 and length of 5.3” and for other applications you will need to verify dimensions for cross reference.
1 answers

Could this pin set be used on a 57 1/2 ton if the spindles were machined?

Yossarian19
Nevada City, CA
April 23, 2015

Could this pin set be used on a 57 1/2 ton if the spindles were machined?

Answers

April 27, 2015
John
Expert
Using the car king pin needle bearing set on a pickup could be done but for full gain the axle boss height would also need to be changed. The passenger car set has a lower bearing that carries the weight of the vehicle but on the pickup there is what is referred to as a thrust washer that is less than half the bearing height. To use this bearing you would also need to change either the axle boss or one of the arms of the spindle to increase the room to accept the bearing.
