Deluxe 1926-27 T Roadster Body w/ Doors, Unchanneled Floor Installed

SAME DAY SHIPPING! Order within the next 17 hours 11 minutes and receive same day shipping

Specs
Material Type:
Fiberglass
Overall Length:
90.00
Sold in Quantity:
Each
Garage Sale:
No
Body Width:
49.00
Body Height:
24.00
Firewall Width:
29.00
Notes
Includes doors and flat floor.

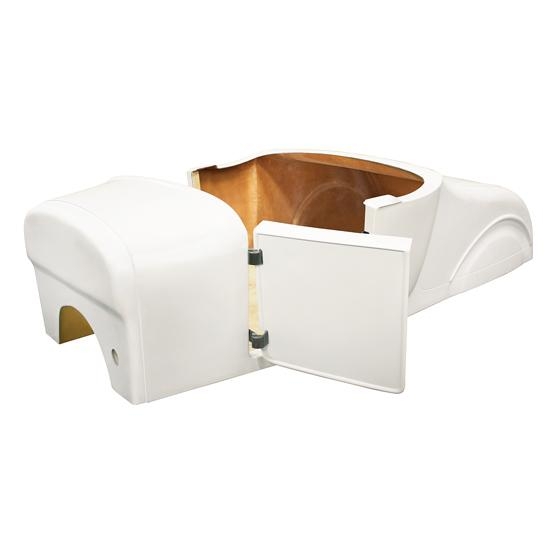

Deluxe 1926-27 T Roadster Body w/ Doors, Unchanneled Floor Installed

Click image to enlarge

Please NOTE the following about this product:

  • Item 7152760 is made to order. We will ship it from our warehouse when it is produced.

Details

Reviews

Q & A

What's in the Box

Our Deluxe '26-'27 Model T style roadster body includes (2) opening doors that have the latches and hinges installed. T-bucket bodies feature all fiberglass construction with a molded turtle deck and firewall, inner door panles, and a flat floor (unchanneled) installed.

  • Total Length: 90"
  • Firewall Width: 29"
  • Firewall to Back of Dash: 16-1/2"
  • Firewall to Back of Seat: 55"
  • Firewall to Center Line of Rear Axle: 75"
  • Widest Point of Body: 49"
  • Overall Height of Body: 24"
  • Rear Width: 42"

This product is made to order.  Please allow three to four weeks for lead time.

Truck Freight Shipping Charges Apply - click here for details.

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

Floor without transmission tunnel Is it possible to get the body with floor install but no transmission tunnel I was planing on using a chevy 4.3 v6 and would fabricated a transmission tunnel smaller than what come stock on the body. To add more floor space

Bobcat
Florida, USA
April 30, 2014

Floor without transmission tunnel Is it possible to get the body with floor install but no transmission tunnel I was planing on using a chevy 4.3 v6 and would fabricated a transmission tunnel smaller than what come stock on the body. To add more floor space

Answers

April 30, 2014
EricM
Sorry I do not have an option for a body with a floor but no transmission tunnel. You would be best suited to install your own floor and tunnel or get the pre-installed floor and modify the tunnel to your liking.
1 answers

is there a working lid on the turtle deck??? thanks,bob

bobc207
February 16, 2014

is there a working lid on the turtle deck??? thanks,bob

Answers

February 17, 2014
EricM
No the turtle deck does not have a working lid. The gas tank and battery is typically mounted under the turtle deck leaving very little extra room anyhow.
1 answers

Does the turtle deck on the 27 T body open/close? Does the turtle deck lid on the 27 T body open or is it a molded one piece? If it is molded solid is it possible to cut it out and make a opening deck lid on this 27 T body?

olen
Snoomish, WA
October 01, 2013

Does the turtle deck on the 27 T body open/close? Does the turtle deck lid on the 27 T body open or is it a molded one piece? If it is molded solid is it possible to cut it out and make a opening deck lid on this 27 T body?

Answers

October 02, 2013
Jason
The rear lid on the 27 roadster body is non functional and molded one piece with the body. It could be made to function but would take considerable fiberglass work and reinforcement of the body after the lid was cut out. The turtle deck for the 22-25 number 9002010 does have a separate lid and we offer a hinge kit number 91652817.
1 answers

CAN THIS PRODUCT BE FITTED WITH FENDERS AND ARE THEY AVALABLE

OLDTYMER
CINCINNATI
January 01, 2011

CAN THIS PRODUCT BE FITTED WITH FENDERS AND ARE THEY AVALABLE

Answers

January 05, 2011
Waymon
Yes, we have just what you need. Please refer to our street rod catalog or copy and paste this link on your computer http://www.speedwaymotors.com/ProductSummary.aspx?free_text|1/5/2011%2010:13:2520AM=T+FENDERS&deptId=0 and plan out the type of street rod you want to build and order the fenders that will look good on your style of street rod.
1 answers

If you are building your own frame how would you figure out the length of the frame rails?

Minnsportfan
United States
April 09, 2015

If you are building your own frame how would you figure out the length of the frame rails?

Answers

April 09, 2015
EricM
The 26-27 is like the 23-25 except that it is wider at the back and extends the frame for the rear body of the 26-27. The 23-25 from the front of the frame to the rear is 94 ½ and the 27 is 106 ½”. This puts it at a 113” wheelbase. 23.5" wide at the front and 28.5" at the rear.
