Deluxe 1923 T-Bucket Frame Kit w/ Deluxe Body and Bed, No Floor

SAME DAY SHIPPING! Order within the next 2 hours 59 minutes and receive same day shipping

Deluxe 1923 T-Bucket Frame Kit w/ Deluxe Body and Bed, No Floor
Product Video

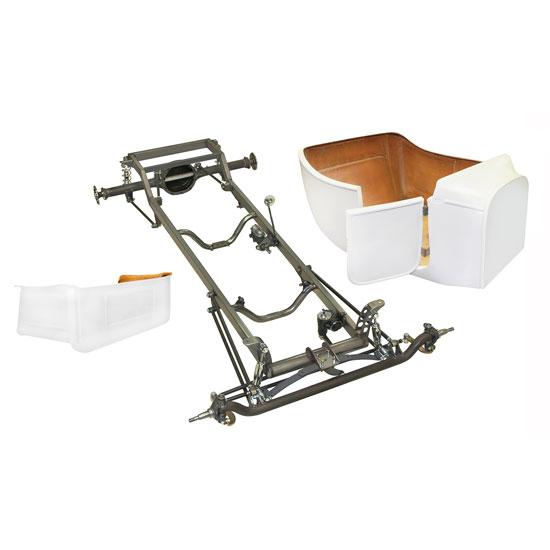

Deluxe 1923 T-Bucket Frame Kit w/ Deluxe Body and Bed, No Floor

Click image to enlarge

Watch the videos below to learn more about Speedway Motors T-Bucket body styles and configurations, general assembly and the completed project.







Watch the video below to learn more about Speedway Motors street rod spindles.

Details

Reviews

Q & A

What's in the Box

The all new Deluxe T frame is engineered to deliver the ultimate ride and handling of any T-bucket chassis! An exclusive triangulated four-bar rear suspension with coilover shocks and urethane bushings provides unparalleled adjustability and traction control, plus better ride quality than any other T-bucket chassis on the market. It's paired with urethane-bushed four-bars supporting the spring-behind-axle front suspension. The Deluxe '23 T sets a new standard for the next generation of T-buckets!

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Chassis Exploded View (Link)

This product requires a 3-4 week build time.

If ordering the body kit without a floor, please note that the door will not be hung. If you order a body kit with a floor (715-3211 or 715-3221), the door will be fitted & hung on its hinges before shipping.

Notes

All of our T kits are also available with chrome suspension.  This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

Frame Assembly

  • 1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
  • 3" O.D. round tube front crossmember
  • Spring-behind front suspension with 4" drop tube axle
  • Urethane-bushed front four bars and panhard bar
  • Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
  • Combination headlight and front shock mounts
  • Innovative triangulated four-bar rear suspension with urethane bushings and coilover shocks
  • Cross steering with Vega steering box
  • Frame assembly include: front spring, axle, spindles, and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
  • Available with plain or chrome suspension components

Deluxe Body

  • Rugged fiberglass body
  • Hinged right hand door
  • Flat, smooth firewall
  • Molded-in flat dash
  • Body lip around top edge to attach upholstery
  • One-piece 20" T pickup bed
  • Available with no floor



Specs

  • Body Dimensions
    • Total Length:  52"
    • Firewall Width:  26.5"
    • Body Width:  45"
    • Body Height:  24"

Item Details

No Floor, Door Not Hung

Customer Reviews

This product has no reviews.

Product Q&A

12 questions : 12 answers

1 answers

Can the Deluxe 1923 T-Bucket Frame hold Big Block Engines or what T-Bucket frame would be compatible for holding Big Block Engines?

Jay81
Utah, USA
May 27, 2013

Can the Deluxe 1923 T-Bucket Frame hold Big Block Engines or what T-Bucket frame would be compatible for holding Big Block Engines?

Answers

May 29, 2013
Jason
The T bucket chassis number 7153400 is designed for small block Chevy or Ford and if opting for big block then the frame would require lengthening to accommodate the extra engine length. Or in an unchanneled version the body would need to be slid back further and the body notched for the kick up in the frame.
1 answers

does the deluxe kit come with master cylinder and steering box ?

brute
November 25, 2012

does the deluxe kit come with master cylinder and steering box ?

Answers

November 26, 2012
Jason
This kit does include the vega steering box and a dual feed 1" bore master cylinder
1 answers

When ordering a chasis can the 9 inch or winters rear be supplied with a buggy spring transverse set up?

Heff
November 20, 2012

When ordering a chasis can the 9 inch or winters rear be supplied with a buggy spring transverse set up?

Answers

November 20, 2012
Jason
In order to acheive the desired ride height on a T bucket using the rear buggy spring the kick up in the rear requires an additional 6" of rise. We cannot supply a kit with a different frame and suspension package but do offer a bare frame under number 7154800 which will serve as the basis for a T bucket build. It will require fabrication skills in order to complete your project. We apologize for the inconvenience.
1 answers

Do you offer this kit with rearend installed or with it all one part number? Thank you

Jim
Munnsville, NY
March 08, 2012

Do you offer this kit with rearend installed or with it all one part number? Thank you

Answers

March 09, 2012
John
Part number 7153400 If the rear end option number 715700 is ordered at the same time as the chassis the brackets are welded to the rear end and the package will come bolted all together on a large pallet. The bolts will not be thoroughly tightened or torques for ease of disassembly. This way it is easy to verify all the bolts and hardware are included. The same applies to the engine/trans mount option.
1 answers

what kind of rearend will i need? will i have to purchase the winter quick change rearend like the tribute t requires? i don't want to pay that much for a rearend.

November 02, 2011

what kind of rearend will i need? will i have to purchase the winter quick change rearend like the tribute t requires? i don't want to pay that much for a rearend.

Answers

November 02, 2011
John
Part # 7153400 We offer rear end option number 715700 which is a 9” Ford rear end complete with axles and bearings. If ordering at the time you purchase the kit the brackets are welded on as a free of charge service. We also have complete third members with Currie posi unit under part number 91048345 with choice of ratio. Rear end lube and gasket will be required and also available. Or if you have a donor rear end in the 56” range hub face to hub face it could be adapted to the Deluxe chassis.
1 answers

I see the questions regarding the floor and holes for the column and master cylinder, My question is, ordering a deluxe body with the channeled floor is the trans tunnel and firewall re-enforcement part of it as shown in the video? Thanks

old drag racer new streetrodder
Plant City, Florida
April 29, 2011

I see the questions regarding the floor and holes for the column and master cylinder, My question is, ordering a deluxe body with the channeled floor is the trans tunnel and firewall re-enforcement part of it as shown in the video? Thanks

Answers

May 03, 2011
John
Your question related to the trans tunnel and the firewall reinforcement and this does come with the kit. The area around the hole for the column is steel inserted with 6 holes for mounting the column adapter bracket. For standard applications we offer 4104255 which gives the mount 55degree angle for the column. If a different angle is needed we offer a 50 degree, a 60 degree, and even an offset at 55 degrees if using a big block or a hemi engine.
1 answers

By the video the body if purchased channeled with floor the holes are drilled for column?

wizard
Freeport IL
March 20, 2011

By the video the body if purchased channeled with floor the holes are drilled for column?

Answers

March 23, 2011
Shane
Yes if the body is purchased with the channeled floor the hole for the column is drilled and a hole for the brake pedal is in the floor.
1 answers

On the 7153411 t bucket kit what is the floor made of. Can I get the floor after the kit is order...

d himeback
Bechtelsville Pa
January 16, 2011

On the 7153411 t bucket kit what is the floor made of. Can I get the floor after the kit is order...

Answers

January 20, 2011
Clark
The T-bucket floor is made from exterior-grade plywood. The floor is fiber-glassed into the body after the body is molded, but before it leaves the fiberglass shop.
1 answers

What is the width of the frame at the front and at the back?

Abel
South Africa
November 06, 2011

What is the width of the frame at the front and at the back?

Answers

November 08, 2011
John
Part # 7153400 Frame width is 23.5 in front and 28.5” in the rear.
1 answers

Is this kit available in right hand drive?

LukeDean
Sydney,Australia
July 15, 2011

Is this kit available in right hand drive?

Answers

July 18, 2011
John
Speedway T bucket kits are all designed for left hand drive and it would be up to the customer to fabricate and convert the chassis to right hand drive. The appropriate steering gear and related components would also need to be furnished by the customer for right hand drive.
