Curtis-Style Radius Rods, 36 Inch, Chrome Steel

Specs
Material Type:
Steel
Overall Length:
36.00
Finish:
Chrome
Thread Pitch:
.625
Thread Pitch (2):
.69
Garage Sale:
No

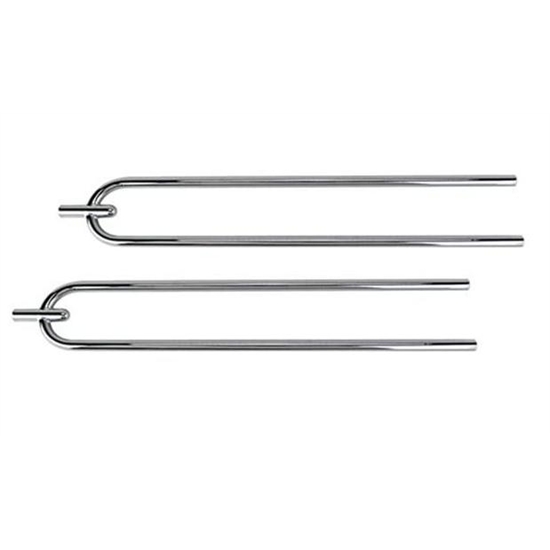

Curtis-Style Radius Rods, 36 Inch, Chrome Steel
Curtis-Style Radius Rods, 36 Inch, Chrome Steel
Curtis-Style Radius Rods, 36 Inch, Chrome Steel

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Speedway Curtis-style radius rods have a classic shape that's more distinctive than most hairpin-style designs. At 36" in length, these are ideal for non-fendered street rods. The axle ends are tapped 5/8" NF RH threads, while the chassis ends have female 11/16" RH threads to accept Ford tie rod ends for the perfect nostalgic touch.

NOT for use with rear suspension.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What degree offset rod ends are required when using with a 48" superbell drilled axle along with thread size/pitch

motorhead11
Michigan
July 12, 2014

What degree offset rod ends are required when using with a 48" superbell drilled axle along with thread size/pitch

Answers

July 15, 2014
EricM
The rear of these radius rods have 11/16” RH threads for a tie rod end and the front two are 5/8" and normally use a clevis. If trying to use the rod ends with the urethane bushings and sleeves the angle would depend on the frame width. The narrower the frame the more angle needed to keep the batwings pointed straight back. No angle is required or mandatory on the front as the batwings can pivot on the perch bolt.
