Currie 9+-98132 9 Inch Ford Cut-To-Fit 31 Spline Axle, 32 Inch Long

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Spline Count:
31
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
MFG. Part #:
9+-98132
Overall Length:
32.00
Overall Diameter:
3.15
Knurl Length:
0.35
Knurl Diameter:
0.61
Stud Length:
2.17
Spline OD:
1.33
Spline Length:
4.00
Offset:
2.50
Notes
Includes both 7/16"-20 and 1/2"-20 wheel studs.
Currie 9+-98132 9 Inch Ford Cut-To-Fit 31 Spline Axle, 32 Inch Long
Currie 9+-98132 9 Inch Ford Cut-To-Fit 31 Spline Axle, 32 Inch Long
VIDEO
Currie 9+-98132 9 Inch Ford Cut-To-Fit 31 Spline Axle, 32 Inch Long

Click image to enlarge

Details

Reviews (4)

Q & A (3)

What's in the Box

Info

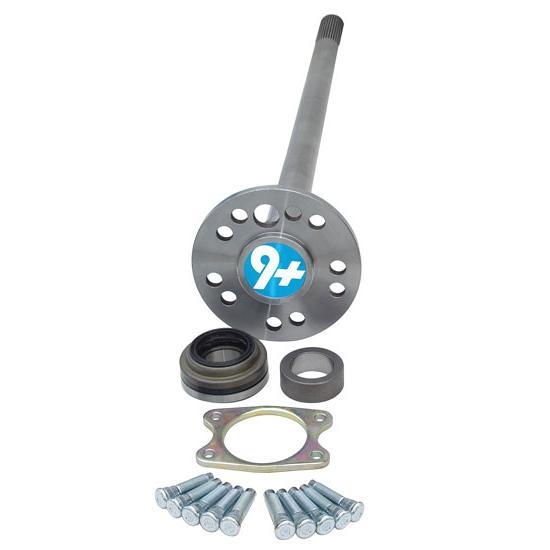

These axles have 4" of spline which will allow you to cut a maximum of 3" of the spline off to obtain the correct length. This is perfect for small shops and will allow you to build your own custom width rear end easily. Axle length is measured from the flange to the end of the splines. All CTF axles come with a full installation package which includes one set of five 1/2"-20 Ford style wheel studs, one set of five 7/16"-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, & collar, and one heavy duty late model large bearing style retainer plate.

  • 9 Inch Ford
  • 31 Spline
  • 32 Inch Long
  • 20-30% stronger than factory axles - increased depth allows for flex without breaking
  • Drilled for both 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
  • Includes both 7/16"-20 and 1/2"-20 wheel studs
  • Compatible with "Big Ford - New Style" housing and brakes with 2-1/2" offset
  • 4" of spline which allows you to cut a maximum of 3" of the spline off to obtain the correct length
  • Perfect for small shops that want to build your own custom width rearend
  • Includes a set-20 bearing and retainer you will have to press on
  • Axles sold each, not as a pair

Currie Rear Axle Installation Instructions

How to Measure Your Housing Tech Tip (Link)

Need a certain length not found on our site? Check out Currie's 9+ Rearend Calculator to have specially sized axles or rearend housings made for your specific application. Custom orders will be built and processed directly through Currie Enterprizes and shipped to your door. For ease of ordering, please refer to Currie's Dimension Diagram.

Installation Notes:

When installing new axles in rearends with posi traction differentials, be sure to install the driver's side axle first to keep the splines properly aligned. Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver's side axle properly if the passenger side axle is already installed.

If installation of passenger side axle is done first it may require two people when installing the driver's side axle, with both parties rotating reach axle until splines are in line and the driver's side axle fully sides into the housing.

When cutting axles to desired lengths Currie recommends:

  • Normal steel cutting machinery (cold saw, band saw, chop saw, etc.)
  • Using a sleeve around the axle such as a small piece of PVC tubing - this allows:
    • The axle to be spun in place while being cut
    • A perimeter cut around the outer diameter assisting in keeping the cut square
    • Avoiding the build-up of too much heat by doing a straight cut (like a knife though a stick of butter)

To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:

  • Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
  • Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
  • Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
  • Proper break-in allows:
    • The ability to install new axles and hit the track the same day without worry
    • Extended life for rearend components
    • Keeps the quality and life of your gear oil

Note: If you find that your rearend is running somewhat "tight" be sure to add Currie's 9+ Friction Modifier to "loosen up". If a more aggressive performance is desired, Friction Modifier is not needed.

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dean
Verified Purchaser
Texas

Good quality

July 09, 2016
Installed axles in Franklin quick change that I cut down and installed Explorer brakes.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bob
Verified Purchaser
Verified Reviewer
Winthrop Maine

Highly recommend

July 06, 2016
I will have trouble breaking the high performance axels!!
Full Size Image

Was this review helpful? 0 0

Cleaners
Verified Purchaser
Vancouver, BC Canada

This product was just wnat I wanted

September 29, 2015
These axles have been installed in a 1954 Dodge Fargo pickup that I am customizing. I installed a good used 9" limited slip differential rear end from a '78 Ford pickup. Coil over shocks, Mustang independent suspesion front end, etc.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

pan
Verified Purchaser
Verified Reviewer
ia

works good

May 23, 2015
Worked great for my application
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Does the axle flange have an access hole drilled like the photo show?

patricks
Tomball, TX, USA
January 22, 2015

Does the axle flange have an access hole drilled like the photo show?

Answers

January 22, 2015
EricM
Yes this axle has an access hole like shown in the photo.
1 answers

I purchased this axle with a race and tapered roller bearing, now I need to replace the outer seals. what seal fits this application?

Dave
United States
April 15, 2016

I purchased this axle with a race and tapered roller bearing, now I need to replace the outer seals. what seal fits this application?

Answers

April 18, 2016
Eric
Expert
We offer a replacement bearing and seal kit 9108015. We do not offer the seal only but it is National part number 3195 which should be available at any local parts store.
1 answers

Is the measure from back of flange? Trying to find the right length.

Chris
October 12, 2016

Is the measure from back of flange? Trying to find the right length.

Answers

October 12, 2016
Eric
Expert
Axle length is measured from the outside surface of the axle flange where the wheel bolts on to the end of the splines.
Page 1 of 1
