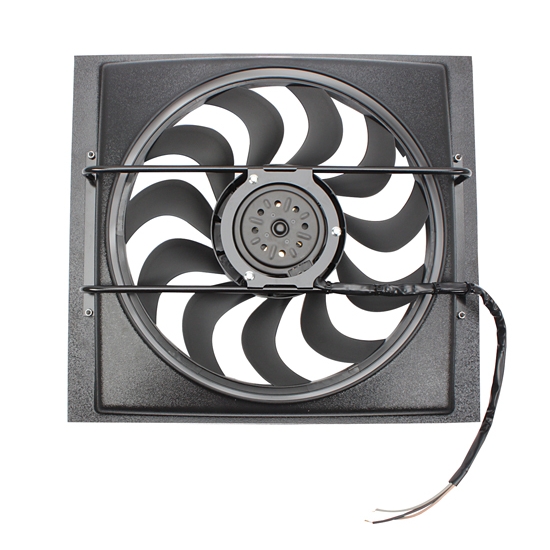

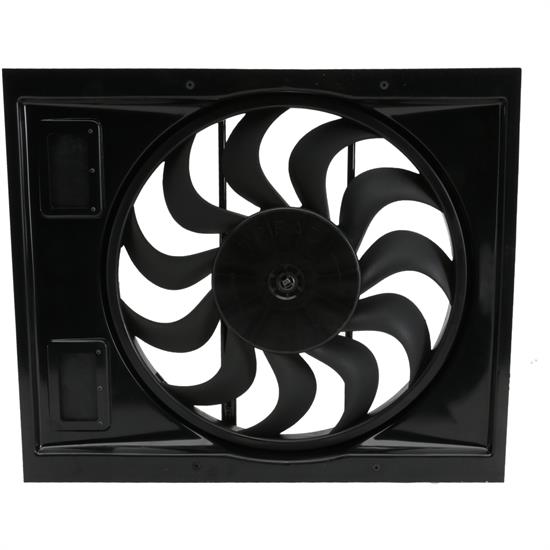

At one time or another we all have had a car overheat. These fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud. 12 volt.
- 18-1/2" wide x 22-3/16" high
- Can be easily reduced in size to 17-1/2" wide x 21-1/8" high
- 12 volt operation
- Lower engine operating temperatures
- Saves horsepower
- Better fuel mileage
- Constructed of high-impact ABS material
Note: This fan motor requires the use of a 70 amp or larger fan relay.
Fan Application Chart (GIF)
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.
- This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
- These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.
