Coilover Kits, 2 Inch Body, 5 Inch Coilover Sleeve

Price:$39.99
Item #:
91046236

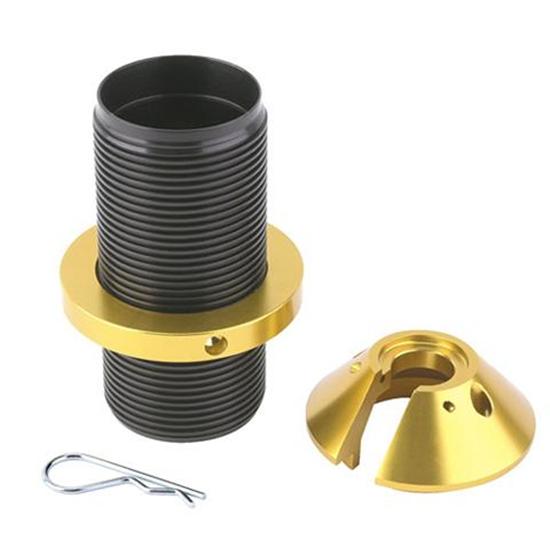

Coilover Kits, 2 Inch Body, 5 Inch Coilover Sleeve
Click image to enlarge Click image to enlarge
No video at this time.

These coil over kits fit bearing end shocks with no modifications necessary. Available for Pro Shocks, Carrera, Monroe, QA1 or Bilstein coil-over compatible shocks.

Coilover kit works with 2 1/2" I.D. springs and 2" O.D. body shocks. The Carrera kit can be used on Bilstein shocks by adding a thick (.120") washer in the spring seat cup.

910-46236 Instructions (PDF)

  • 91046236-PRO
    Tube I.D.
    2.040"
    Tube Length
    5.000"
    Tube O.D.
    2.350"
    Upper Mount O.D.
    3.430"
    Lower Mount O.D.
    3.240"
    Material Type
    Aluminum
    Finish
    Anodized
    Sold in Quantity
    Each
  • 91046236-CAR
    MFG. Part #
    12400
    Overall Diameter
    3.404"
    Inside Diameter
    2.131"
    Outside Diameter
    2.354"
    Tube I.D.
    2.040"
    Tube Length
    5.000"
    Slot Width
    0.640"
    Tube O.D.
    2.340"
    Upper Mount O.D.
    3.430"
    Lower Mount O.D.
    3.230"
    Material Type
    Aluminum
    Finish
    Anodized
    Sold in Quantity
    Each
  • 91046236-MON
    Tube I.D.
    2.070"
    Tube Length
    5.000"
    Slot Width
    0.660"
    Tube O.D.
    3.360"
    Upper Mount O.D.
    3.440"
    Lower Mount O.D.
    3.230"
    Material Type
    Aluminum
    Finish
    Anodized
    Sold in Quantity
    Each
  • 91046236-BIL
    MFG. Part #
    12435
    Overall Diameter
    3.435"
    Inside Diameter
    2.103"
    Outside Diameter
    2.350"
    Tube I.D.
    2.110"
    Tube Length
    5.000"
    Slot Width
    0.640"
    Tube O.D.
    2.350"
    Material Type
    Aluminum
    Finish
    Anodized
    Sold in Quantity
    Each
  • 91046236-QA1
    Tube I.D.
    2.080"
    Tube Length
    5.000"
    Slot Width
    0.650"
    Tube O.D.
    2.350"
    Upper Mount O.D.
    3.440"
    Lower Mount O.D.
    3.230"
    Material Type
    Aluminum
    Finish
    Anodized
    Sold in Quantity
    Each
    Notes
    This kit is for 50 series shocks. To make work with 26 series you will need snap ring PN# 21340100.
