Classic Instruments SN74Z Speed Signal Interface Module
Classic Instruments SN74Z Speed Signal Interface Module

Classic Instruments SN74Z Speed Signal Interface Module

1 Review | 1 Answered Question
In Stock
Ships FREE
Classic Instruments SN74Z Speed Signal Interface Module
Image Gallery
Classic Instruments SN74Z Speed Signal Interface Module
Classic Instruments SN74Z Speed Signal Interface Module
Zoomed In Image
Part # 2751028Z
Save 21%
$119.99
$151.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
SN74Z

Info

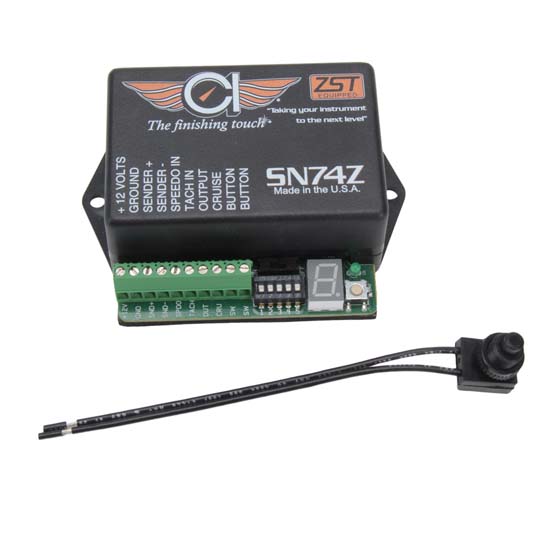

The Classic Instruments SN74Z has the following features when used as a speedometer interface:

  • Input Source Options
    • Three wire pulse signal generator input source
    • Built-in Vehicle Speed Sensor (VSS) input source
    • Most Tremec transmissions
    • Later model 700R4’s
    • Typically a sine wave signal
    • Two wire pulse signal generator input source
    • Classic Instruments SN96 or SN95Typically a sine wave signal
    • One wire ECM signals input source
    • Typically a 5 volt square wave
  • Output
    • The output can be selectable between either 8000 pulse per mile or 16000 pulse per mile
    • Outputs a 12V square wave, 50% duty cycle
    • 8000 pulse per mile cruise control output
  • Additional Benefits
    • Three different calibration options:
      • Instant - drive 30 MPH and press the calibration button
      • Real-Time - press and the hold the calibration button to match the speedometer reading to the actual vehicle speed
      • Marked Mile - Drive a measured mile to calibrate the speedometer
    • Input signal can range from 2000-200,000 pulses per mile
    • State of the art signal averaging software that ensures smooth pointer operation, even in fluctuating signal conditions
    • Noise-reducing, filtered power output for powered speedometer signal generator

The SN74Z has the following features when used as a tachometer interface:

  • Input Source Options
    • High Voltage Coil signal input source
    • .5-6 pulses per revolution (1-12 cylinder engine)
    • Typically the negative side of an ignition coil
    • 5-12V Square Wave signal input source
    • 20%-50% duty cycle
    • Typically from an electronic ignition box or computer
    • Inductive Gear tooth sensor input source
    • Typically used in diesel applications where there is not an ignition system
    • The sensor can be mounted to the engine near the flywheel to sense the gear teeth as they rotate by
    • Can be used with 32-510 tooth flywheels, 32-510 pulses per revolution
  • Signal Output
    • 12V square wave, 50% duty cycle
    • 2, 3, or 4 pulses per revolution (4, 6, or 8 cylinder)
    • 3 preset flywheel tooth settings
    • 148 tooth – Chevy Duramax
    • 152 tooth – 5.9L Cummins
    • 155 tooth – 7.3L Ford Powerstroke
