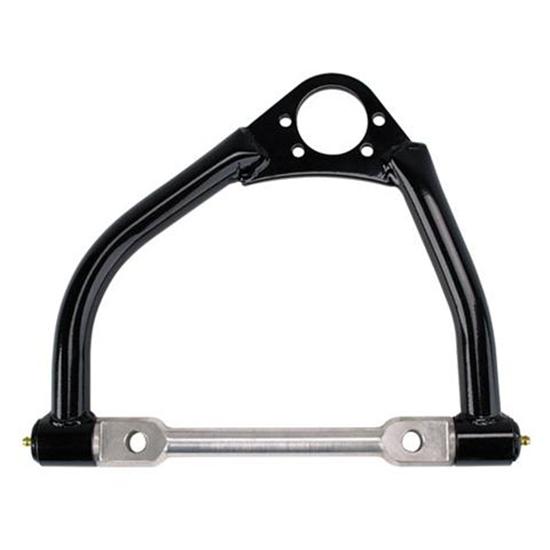

GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Finish:
Painted
Material Type:
Chromoly
Bushing Material:
Steel
Ball Joint Type:
Bolt-in
Centerline of Holes:
6.875
Shaft Diameter:
.726
Tube O.D.:
1.000
Center to Center:
-
Mounted Length:
10.000
Notes
Fits 1978-87 mid-size GM Metric chassis. Bolts to stock mount and accepts stock ball joints.
GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft
GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft
GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft
GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft
GM Metric Stock Car Racing Upper Control Arms, Aluminum Cross Shaft

Click image to enlarge

Details

Reviews (20)

Q & A (11)

What's in the Box

Info

These oval track racing A-arms are 40% stronger than the stock stamped steel arms. The A-arms bolt to your stock mounts and accept stock ball joints. These control arms have a 1/4" thick steel plate where the ball joint bolts in. Fits 1978-87 mid-size GM Metric chassis.

  • 4130 chromoly steel construction
  • Aluminum cross shaft
  • Bolts to stock 1978-87 Metric mounts (6-7/8" center-to-center)
  • Greaseable steel bushings
  • Accepts stock K5208 style Metric ball joints
  • Available for right (passenger side) or left (drivers side)
  • Right arm length is 8"
  • Left arm length is 8.5"

Use with mount plate 916-34312.

Notes

When using on a drag race or S-10 application, consider using RH arm for both sides as both will be 8" long; arm can just be flipped over for LH side (RH arm is 8").

Customer Reviews

Rated 4.6 out of 5 by 20 reviewers.
RATING BREAKDOWN
20 reviews
5 Stars
17
4 Stars
0
3 Stars
2
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

black bomber
Verified Purchaser
michigan

awesomeness

March 09, 2016
So far I'm happy with the control arms. Haven't had a chance to drive yet due to the engine not in the truck but happy with the quality and look of them. 5 stars so far
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mike
Verified Purchaser
selmer, Tn.

tublar upper control arms

March 01, 2016
I'm using this item on my s 10 . I am trying to upper grade my drag truck . This item work well for my app. . I really don't have a negative comment .
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Marty
Verified Purchaser
Verified Reviewer
Tx

High quality at a low price.

December 31, 2015
Very nice product for the money, can't wait to install them.
Pros:
  • customer service
  • Availability
  • Fit and finish
  • Cost
Cons:
  • They Don't Make A Lower
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jeronimo
Verified Purchaser
Verified Reviewer
Dayton, ohio

buy now.

October 30, 2015
Worth the money. When I emailed with a question, I got a quick and honest response. Will definitely order more.
Pros:
  • Perfect Fit
  • Fast Shipping
  • Adds Style And Handling
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

derek
Verified Purchaser
Verified Reviewer
galway ny

nice product

August 27, 2015
i used two rights on my s10 and love them
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Gerardo with the rst
Verified Purchaser
Verified Reviewer
Dallas, tx

Must buy

August 23, 2015
I installed this control arms in my 2wd s10 blazer and bolted right up, I like that now I have more acsess over my tire, I like the product, light weight
Pros:
  • Save Space
  • Good price
  • Light Weight
  • Easy Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dcwx2
Verified Purchaser
anderson, ca

Tremendous satisfaction

April 04, 2015
Sturdy and light weight. Easy to install and greasable. I was extremely satisfied and it has a great price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rustyspark
Verified Purchaser
Meridian id

Excellent product , excellent price !

March 28, 2015
This product is simple yet very thought out , the aluminum cross shaft helps cut weight , and the grease zerks are nice on both ends
Pros:
  • Light, Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ORTEGA1010
Verified Purchaser
Texas, USA

horrible product

February 24, 2015
This product bent and welds are breaking. I had to put my stock ones back on.
Cons:
  • weak material
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

This customer was issued a shipping label for a refund/exchange. We apologize for your experience with this cross shaft and are always happy to help in any way that we can .For further assistance or questions, please contact our customer service team at 1.800.979.0122.
Dick50
Verified Purchaser
La Crosse, WI, USA

Worked great on my s10 street rod projec

October 29, 2014
I ordered these control arms as replacements for the original ones that were rusted through and they worked just fine. The tubular design looks great and gave more clearance for exhaust manifold on the left side. They cleared the spring bucket on the chassis just fine and would look great with an open engine concept hot rod. The shafts are fully greasable also.
Pros:
  • look great and greasabe shaft.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

11 questions : 11 answers

1 answers

Will these fit on my 05 Jeep Grand Cherokee with 4" of lift?

Daveswk
October 21, 2014

Will these fit on my 05 Jeep Grand Cherokee with 4" of lift?

Answers

October 22, 2014
EricM
No these will not fit your Jeep. Sorry we do not offer an upper control arm for your application.
1 answers

wondering how they would do on my air bagged s10 and would i need or wanna buy two right arms like some of these guys were saying?

bagged02xtreme
Brazil, IN 47834, USA
October 12, 2014

wondering how they would do on my air bagged s10 and would i need or wanna buy two right arms like some of these guys were saying?

Answers

October 13, 2014
EricM
Yes you would need two right side arms. These are designed for circle track use and do not have any bushings at the pivot point. They can be a little noisy for street use and once pivot is worn they will need replaced.
1 answers

ARE THEY STOCK REPLACEMENT ? Would these control arms be considered "stock" replacement ? The rule says they can be stock replacement in stock location. Thank you.

RustbucketRacing
Massachusetts, USA
December 04, 2013

ARE THEY STOCK REPLACEMENT ? Would these control arms be considered "stock" replacement ? The rule says they can be stock replacement in stock location. Thank you.

Answers

December 04, 2013
EricM
You will need to check with your tech inspector on their interpretation of "stock replacement." These do bolt to the stock upper control arm mounts of a '78 to '88 G body car.
1 answers

Will these fit a 1992 S10 Blazer that has 2" lifted Springs? I would like to make sure before I make a purchase. I seen two other customers purchased 2 Right Upper control arms to balance the camber angle, is there any issue with this or should I stick with getting a Right and Left Control Arm.... THanks!

JBowie
Los Angeles, CA, USA
March 11, 2013

Will these fit a 1992 S10 Blazer that has 2" lifted Springs? I would like to make sure before I make a purchase. I seen two other customers purchased 2 Right Upper control arms to balance the camber angle, is there any issue with this or should I stick with getting a Right and Left Control Arm.... THanks!

Answers

March 12, 2013
Jason
These control arms number 91031133 stem for circle track racing and if used on a street or drag vehicle two rights would be suggested in order to get proper steering alignment and geometry.
1 answers

Are these control arms setup for a certain camber? Since their for oval track. Is it possible to put these on a vehicle that's not going to be racing oval track?

August 07, 2011

Are these control arms setup for a certain camber? Since their for oval track. Is it possible to put these on a vehicle that's not going to be racing oval track?

Answers

August 11, 2011
John
These control arms stem from circle track racing and designed for oval track camber reguirements. The left arm is 8.5” from center of cross shaft to center of ball joint as compared to the right arm being 8” from same points. This allows for greater camber variance from left to right. With enough adjustment correct camber alignment may be obtained but other steering geometry problems may exist. The arms are also not DOT approved. Compare to dimensions of your stock arms before ordering and you also may need the ball joints number 91720045.
1 answers

Will these work on a 1983 Chevy S10 Blazer 2wd with a sbc 350 thats been lowered 5 inches in front with fenderwell headers?

bkrock
Saint Anne Illinois
June 30, 2011

Will these work on a 1983 Chevy S10 Blazer 2wd with a sbc 350 thats been lowered 5 inches in front with fenderwell headers?

Answers

July 06, 2011
Mike
Thanks for looking into our products here, the arms you are looking at are for offroad use only, we use them in circle track racing applications and are not suited for drag or street use as there is no bushings on the control arms its just metal to metal.
1 answers

Wanted to know if fit 84 MonteCarlo

BR, Big Reese
Washington,pa
July 01, 2015

Wanted to know if fit 84 MonteCarlo

Answers

July 02, 2015
Eric
Expert
Yes this control arm will fit an 84 Monte Carlo.
1 answers

Will this product fit on my 1998 chevy s10 blazer 2wd?

Darrel
October 01, 2015

Will this product fit on my 1998 chevy s10 blazer 2wd?

Answers

October 01, 2015
Eric
Expert
Yes this will fit your 2 wheel drive 1997 S10 Blazer.
1 answers

when using these uppers on a G Body car should a tall ball joint be used

mister
ohio
October 10, 2015

when using these uppers on a G Body car should a tall ball joint be used

Answers

October 12, 2015
Eric
Expert
A tall ball joint is not required with these control arms but you can certainly use one if you wish. We offer ball joint 106200322LF which is 1/2" taller than stock and is a bolt on upgrade.
1 answers

I had a set of these with the recommend ball joints installed on a 86 cutlass salon and the alignment shop is unable to align it. The ball joint angles do not seem right and there is only 3 shims on back bolts and 1 on front

Dj
Lima ohio
October 28, 2015

I had a set of these with the recommend ball joints installed on a 86 cutlass salon and the alignment shop is unable to align it. The ball joint angles do not seem right and there is only 3 shims on back bolts and 1 on front

Answers

October 28, 2015
Eric
Expert
We manufacture these with the intention to be used on circle track race cars. They are not intended as a stock replacement or for street use, however some people do use them in that scenario. Alignment could be an issue. The LH version is longer at 8.5" and may require more shims but gives more ability to adjust the alignment. The LH can be used on the right side by flipping it over. We use shorter right sides on circle track cars for the drastically different alignment that we run.
