Chromoly Heim Joint Rod Ends, 3/4-16 RH Male

Specs
Material Type:
Chromoly
Finish:
Chrome
Hole Diameter:
0.7500
Thread Pitch:
3/4"-16
Threads:
RH Male

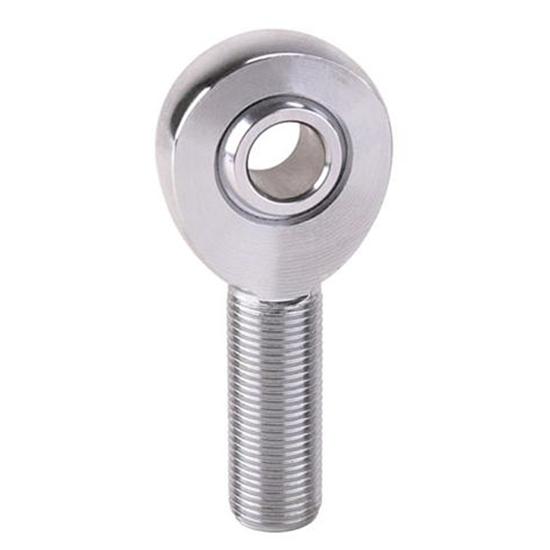

Chromoly Heim Joint Rod Ends, 3/4-16 RH Male
Chromoly Heim Joint Rod Ends, 3/4-16 RH Male

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Heat treated, 4130 chromoly steel body with a hard chrome plated, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.

  • Kevlar/Teflon® race reduces slop & eliminates binding
  • Provides smooth & precise movement of steering & suspension
  • The ultimate in strength & durability

Applications: Steering & suspension for racing & high horsepower applications.

Chromoly Rod End Chart (GIF)

Notes

ASSEMBLY TIP: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

You may also be interested in:

Precision Carbon Steel RH Male Heim Joint Rod Ends, 3/4 Inch
SKU-1750117
                        Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Heim Sizes Chart (GIF)

Aluminum Heim Joint Rod Ends, 3/4-16 RH Male
SKU-1171212


Aluminum rod ends are a close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball, Kevlar race. Self lubricating Teflon liner seals out dirt and debris.

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.

Assembly Tip:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum Rod End Chart (GIF)

Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 RH Male
SKU-1750507


These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

AFCO 10424 Aircraft Quality Heim Rod End, 3/4-16 RH Male
SKU-10610424

  • Designed for high-stress usage
  • Ideal for panhard bar or drag components
  • Ball - 52100 steel, hard chrome plated
  • Race - Heat treated steel alloy, zinc plated
  • Body - Heat treated steel alloy, zinc plated
  • Radial Load - 28,000 lbs.
AFCO 10458 Chromoly Heim Rod End, 3/4-16 RH Male
SKU-10610458

  • Chromoly body - 2 piece design
  • Designed for heavy duty applications
  • Rough conditions steering/offroad
  • Ball - 52100 steel hard chrome plated
  • Race - N/A
  • Body - 4130 chromoly
  • Radial Load - 25,000 lbs.
QA1 PCYMR12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 RH Male
SKU-1750607

  • Heat treated chromoly alloy steel body
  • Functions with up to 64° of misalignment
  • PTFE self-lubricating lining
  • Black oxide coated for corrosion resistance
  • Sold individually
Steel Jam Nuts, 3/4 Inch-16 Right Hand NF Fine Thread, Pack/6
SKU-1756047-RH


If you've got spherical rod ends on your vehicle, you'll probably need jam nuts. You might also need them for tie-rod ends or other types of fittings and connectors. Our jam nuts are made from premium steel (zinc-coated for corrosion prevention), and they're available with either right hand or left hand threads.

These steel fine thread jam nuts are for use with rod ends, heim joints, and clevis.

  • 3/4 Inch-16 NF Fine Thread
  • Sold in bags of six nuts.
  • Choose left or right thread.
Industrial Tap, 3/4-16 SAE-Right Hand RH Thread
SKU-91281038-RH


We supply those hard-to-find industrial taps. 4-flutes. Choose left hand or right hand thread for each tap.

Learn why running a tap or die over new threads is so important prior to assembly in our tech article, Installing New Hardware.

Seals-It WS7500 Heim Joint Rod End Seals, 3/4 Inch Hole, Set/6
SKU-91001505


These rod end seals are a neoprene rubber seal bonded to an aircraft quality washer. Extends the life of your rod ends by keeping the dirt, debris and moisture out of the spherical ball. They fit on both sides of the ball end of the heim joint and are sized to match the hole in the spherical ball.

For use with standard and Pro 1 Series rod end only. Sold in sets of six, which will cover both sides of three rod ends.
