Chrome Tie Rod/Drag Link Kit with 5/8 Heim Rod Ends

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Chrome
Diameter:
.88
Thread Length:
1.59
Thread Pitch:
5/8"-18 RH
Bushing Length:
.75
Bushing Diameter:
.63
Thread Pitch (2):
5/8"-18 LH
Garage Sale:
No
Chrome Tie Rod/Drag Link Kit with 5/8 Heim Rod Ends

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

These tie rod/drag link kits are pre-cut and tapped lengths of chrome plated 7/8" O.D. tubing available in multiple lengths. Each kit comes complete with 5/8" heim joint rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.

Select your length based on the center-to-center of the heim rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/4" shorter to 1/2" longer.

Normally used with '49-'54 Chevy style spindles and flat steel steering arms. Can be used with stock type Ford arms if drilled out to 5/8".

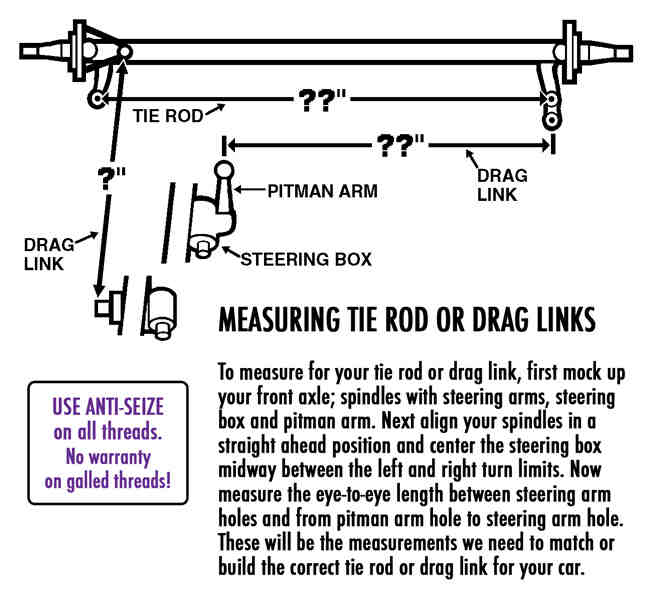

Measuring Tie Rod or Drag Links (GIF)

Flat Steering Arm Illustration (GIF)

Note: Always use anti-seize to prevent galling the treads during final installation. Learn why running a tap or die over new threads is so important prior to assembly in our tech article, Installing New Hardware.

Item Details

w/ 5/8" Heims

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

ABlert
Verified Purchaser
Sachse, TX, USA
Product Rating

These work well and look good

February 02, 2015
These tie rods/drag links look very good with the chrome plated tubing and hex nuts. However it is very easy to scratch the chrome tube when tightening the jam nuts if adequate precautions are not taken. A pair of wrench flats somewhere on the tube would be helpful. Use soft jawed pliers or rubber cushioning to hold the tube while tightening the jam nuts.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

drum
Colville,WA
Product Rating

Drag link.

September 19, 2013
I ordered this product and it was just what the DR. ordered for my rod.Great service and fastest shipping in town.Thanks.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DEWMAN
Verified Purchaser
COLOR4ADO SPRINGS COLORADO
Product Rating

it was great!!!!!!!!!!!!!!!!!!!!!!!!!!!!

June 16, 2012
it fit right on no problems!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Pros:
  • Great Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91632502

Product Q&A

1 questions : 2 answers

2 answers

Does this set come with chrome heims? If not can I order it with chrome ones?

May 24, 2011

Does this set come with chrome heims? If not can I order it with chrome ones?

Answers

September 20, 2013
drum
Yes,They will sell you what you ask for.
May 24, 2011
Jason
No, hiems are plated but can be switched out if needed
Page 1 of 1
