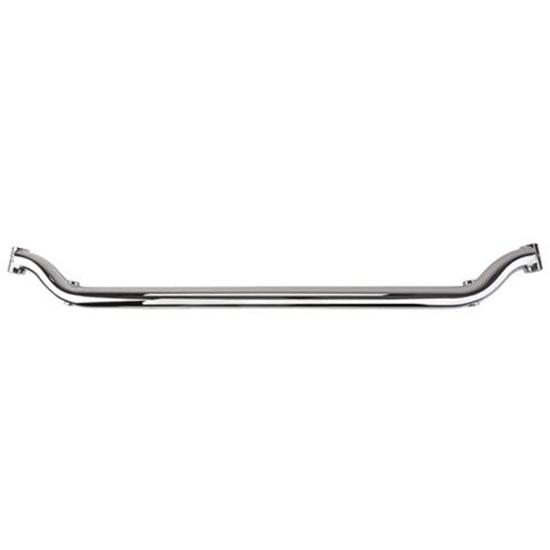

Chrome Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Diameter:
2.00
Drop:
3
Material Thickness:
.250
King Pin Centers:
48.00
Spindle Type:
Ford
Chrome Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedways 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1937-48 Ford style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"

Item Details

48" king pin centers, 37" perch centers

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Duane1603
Ames, Iowa
Product Rating

Engineering and assembly are excellent

September 30, 2013
I purchased the package that included this dropped axle. I have had excellent results in assembling the package. The success is due to the instructions that were included and the information and tips that are available on-line form Speedway.
Pros:
  • technical help is professional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

question about bearing spacer when using this tube axle and stock 1940 spindles I can only get the bearing between the spindle and axle, do I need the dust shields and felt washers, there is no room for them. Thanks Jeff

1 answers
jp21
Denver, CO, USA
January 14, 2015

question about bearing spacer when using this tube axle and stock 1940 spindles I can only get the bearing between the spindle and axle, do I need the dust shields and felt washers, there is no room for them. Thanks Jeff

Answers

January 15, 2015
EricM
The dust shield should come on the bearing and the open side goes down. If you can’t get this in there then you will need to clearance the axle or spindle or both. The cup washer and felt washer goes under the top head of the kingpin.

Is this a bolt-in replacement for a 1941 Ford Coupe?

1 answers
DaveR
Williamsburg VA
April 28, 2014

Is this a bolt-in replacement for a 1941 Ford Coupe?

Answers

April 29, 2014
EricM
Your 40 Ford likely has a 48" kingpin to kingpin centerline but you would need to measure to make sure. Next the 37-41 years ran 38 ½" perch centers and the axle in question number 91035118 has 36 3/8" perch centers pulling the wishbones together at the front and also decreasing the distance for the spring hangers. This would then require a shorter spring. Therefore we apologize that it is not a direct bolt in. Sorry we do not offer a direct bolt in chrome axle for your '41 Ford Coupe.
