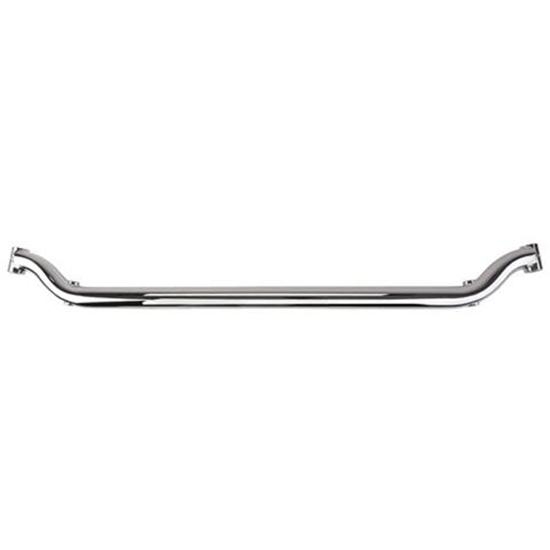

Chrome Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle
Chrome Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1949-1954 Chevy-style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"

Item Details

48" king pin centers, 37" perch centers
