Chrome Deck Lid Hinges

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Overall Height:
.50
Overall Width:
1.19
Overall Length:
5.50
Sold in Quantity:
Set
Finish:
Chrome
Stud Length:
.80
Stud Diameter:
.19
Arm Length:
3.00
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

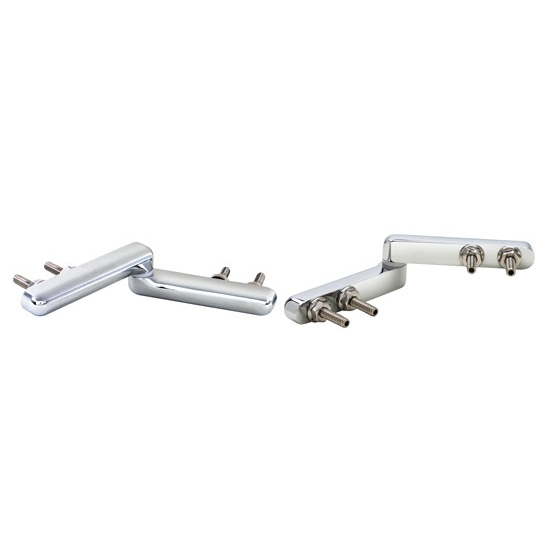

The compact design of these chrome deck lid hinges allow easy installation of all types of trunk lids and access panels.

  • Each half is 3" long
  • Each half is .496" wide and .496" tall
  • Two attachment studs per half 3/4" center to center
  • First attachment stud is 1/2" from end
  • Studs are 3/4" long and come with nuts and washers
  • 5.50" Overall Length
  • 1.1875" Width at Hinge
