Quick Time RM-6010 Chevy Steel Trans Bellhousing, Hydraulic Linkage

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Weight:
21.00
Sold in Quantity:
Each
Finish:
Powder Coated
Inside Diameter:
4.69
Depth:
6.29
Hardware Included:
No
SFI Rated:
No
MFG. Part #:
RM-6010
Garage Sale:
No

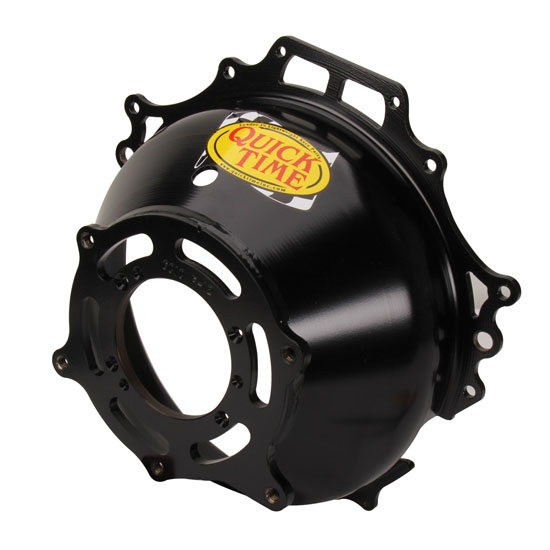

Quick Time RM-6010 Chevy Steel Trans Bellhousing, Hydraulic Linkage
Quick Time RM-6010 Chevy Steel Trans Bellhousing, Hydraulic Linkage

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These strong, lightwieght steel bellhousings from Quick Time are just the ticket for installing a manual transmission behind your Small Block or Big Block Chevy V-8. The compact design allows the bellhousings to fit in tight quarters while still accommodating a 10-1/2" clutch. Must be used with a hyraulic throwout clutch release bearing and a mini starter.

  • Lightest steel bellhousing available anywhere
  • Cone is spun (not rolled or stamped) for extreme dimensional stability
  • High grade steel — work hardens to over 80,000 PSI strength
  • Over 2 times the strength of any other steel bellhousing
  • Engine = Small Block Chevy, Big Block Chevy, LT1
  • Trans. = Muncie, Richmond, Saginaw, Falcon, Bert, Jerico 4-5 Speed, Brinn, Chevy TKO 500/600, BW-T10
  • Max Clutch Diameter = 10.5"
  • Flywheel = 153 tooth
  • Drilled for most major throwout bearings
  • Passed SFI testing
  • Engine plate and grade 8 bolts included
  • Must use mini starter

Fits common GM transmisson bolt pattern. Includes lower flywheel cover and grade 8 bolts. Only 21 lbs.

Application

  • Engine = Small Block Chevy, Big Block Chevy, LT1
  • Trans. = Muncie, Richmond, Saginaw, Falcon, Bert, Jerico 4-5 Speed, Brinn, Chevy TKO 500/600, BW-T10

Specs

  • Height = 6.290
  • Trans. Bore Diameter = 4.685
  • Engine = Small Block Chevy, Big Block Chevy, LT1
  • Trans. = Muncie, Richmond, Saginaw, Falcon, Bert, Jerico 4-5 Speed, Brinn, Chevy TKO 500/600, BW-T10
  • Max Clutch Diameter = 10.5"
  • Flywheel = 153 tooth
  • Weight = 21 lbs
  • Drilled for most major throwout bearings
  • Passed SFI testing
  • Engine plate and grade 8 bolts included
  • Must use mini starter

Item Details

Hydraulic release bearing
