Chevy Spindles - 4-Bar Spring-Behind Front End, Plain

SAME DAY SHIPPING! Order within the next 1 hour 21 minutes and receive same day shipping

Chevy Spindles - 4-Bar Spring-Behind Front End, Plain
Product Video
Chevy Spindles - 4-Bar Spring-Behind Front End, Plain

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Tube axle works with 1949-1954 early Chevy passenger car spindles. Works great for T's and lightweight, fenderless vehicles (maximum car weight 2500 lbs.).

Kit includes:

  • Two 1-3/4" spring shackles w/ nylon bushings
  • Two spring pivots
  • 26" 4 leaf cross spring w/ nylon buttons
  • Tube axle, 48" eye-to-eye, 4" drop
  • Four brackets welded to axle
  • Four radius rods
  • Four 4-bar ends
  • Four jam nuts
  • Panhard bar assembly
  • Spring U-bolts sold separately

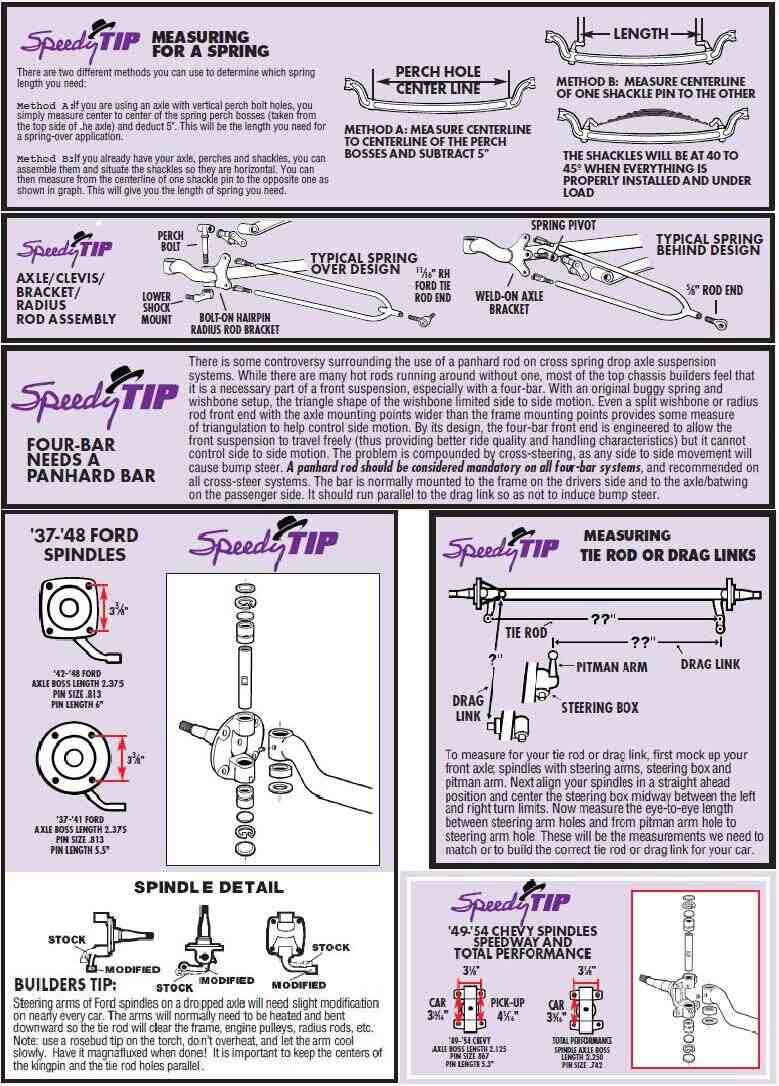

Front Axle/Suspension Tech Tips (GIF)

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

collins23
Verified Purchaser
Product Rating

tube axle fit

September 13, 2013
used to muscle car parts that bolt right up. was suprised at little mods that needed to be made. Kingpin area had to be durred some to fit. Also tube axle used set screw to hold kingpin. Kingpin set is universal for regular axle or tube, so notch in kingpin doesn't line up in the set screw application, had to grind up to make a flat area.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

Do you offer a front end kit like this for coilovers? Want to use coil over spring-shock units to allow for best ride handling balance in a lightweight narrow vehicle.

1 answers
carcrazy
January 14, 2015

Do you offer a front end kit like this for coilovers? Want to use coil over spring-shock units to allow for best ride handling balance in a lightweight narrow vehicle.

Answers

January 15, 2015
EricM
We apologize but do not offer a coil over front axle kit similar to this. To build something similar you would order the axle and four bar components along with coil over mount supports number 91636011, coil overs of choice, and depending on frame width a longer panhard bar such as number 91049801. It would take some fabrication and modifications to make it all work together but for now that is the only way to get it done.

which is better for a t, chevy or ford axle and spindles building a t

1 answers
buggar
December 03, 2014

which is better for a t, chevy or ford axle and spindles building a t

Answers

December 03, 2014
EricM
The biggest difference is the brake kits for the spindles. With the Chevy spindles we offer a small 9 1/4" brake rotor where the Ford spindle brake kits use an 11" rotor. Some people prefer the smaller rotor and brake system for a car with an exposed front end such as a T bucket. For larger, heavier cars the 11" rotor with the Ford spindles give better braking performance.

Distance between 4-bars Hi, Please tell me the measurement between the 2 hole centres (centre to centre) on the bat wings. I need this to determine the measurement between the 4 bar tube centres when they are parallel. Thank you.

1 answers
arat
Australia
November 16, 2014

Distance between 4-bars Hi, Please tell me the measurement between the 2 hole centres (centre to centre) on the bat wings. I need this to determine the measurement between the 4 bar tube centres when they are parallel. Thank you.

Answers

November 17, 2014
EricM
The four bar bracket that is welded to this axle is 5" from center to center of the four bar mounting holes.

What is size are the 4 bar rods and ends?

1 answers
arat
Australia
November 10, 2014

What is size are the 4 bar rods and ends?

Answers

November 10, 2014
EricM
The 4 bars in this kit are adjustable from 32 5/8" to 33 5/8" center to center. The ends are 1 3/8" wide and have 1/2" ID for mounting to the frame side. The other end of the bars are 3/8" ID to match the axle.

I just purchased this axle kit. When installing it should the mounting holes for the radius rods on the axle be at a perfect 90 degrees to the frame and ground? If so, does this give the proper caster? How far into the radius rods should the ends be threa

1 answers
lou
pa
January 02, 2012

I just purchased this axle kit. When installing it should the mounting holes for the radius rods on the axle be at a perfect 90 degrees to the frame and ground? If so, does this give the proper caster? How far into the radius rods should the ends be threa

Answers

January 05, 2012
John
Part number 91339024 The axle needs to have 5-7 degrees positive castor which is lean back at the top of the kingpin boss. With the ends threaded at least halfway into the tubes mock up the front end with 5-7 degrees, keeping the four bar tubes parallel with the ground at ride height, locate the rear mounts in the appropriate location. We like to see ¾ of the threads into the tubes if possible. You need to compensate for rake angle on the frame and spring compression when mocking up the front end.
Page 1 of 1
