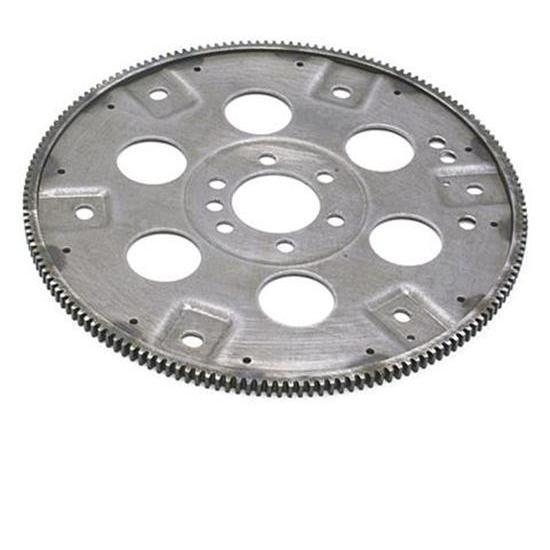

Chevy Flexplate for 2-Piece Rear Main, 400 Small Block, 168 Tooth

SAME DAY SHIPPING! Order within the next 13 hours 17 minutes and receive same day shipping

Specs
Torque Converter Bolt Circle:
10.75 and 11.5
Chevy Flexplate for 2-Piece Rear Main, 400 Small Block, 168 Tooth

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These non-SFI rated S/B Chevy automatic transmission flexplates are suggested whenever installing a new engine or transmission. These flexplates are for two-piece rear main seal engines ONLY.

  • (External balance, 168-tooth)
    • Dual bolt patterns, 10-3/4" and 11-1/2"
    • Flexplate O.D. 14-1/4"

Make sure you choose the correct flywheel for your application by reading our tech article. Small Block Chevy - How to Choose a Flexplate.

Customer Reviews

Rated 3 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Racer7r
Verified Purchaser
Ky.

Good flexplate!

April 24, 2012
All fit well until we attached the torque converter. On of the bolt holes had to be stepped as it was drilled too small in relation to the others. For the price it is still a value.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

chevy 383. 2 piece rear seal. How many teeth should be on my flexplate? 168 or 153?

383fergy
February 19, 2015

chevy 383. 2 piece rear seal. How many teeth should be on my flexplate? 168 or 153?

Answers

February 20, 2015
EricM
It will depend upon the starter you are using. The starter and flexplate must both be for the same tooth count. A 153 tooth starter can not be used with a 168 tooth flexplate and vice versa.
1 answers

what flywheel do I need for my sbc 400 153t or 168t Im putting together a 400 sbc and noticed there are 2 flywheels thats external, 153t and 168t. Need to know which one is the right one to use

impala
June 13, 2014

what flywheel do I need for my sbc 400 153t or 168t Im putting together a 400 sbc and noticed there are 2 flywheels thats external, 153t and 168t. Need to know which one is the right one to use

Answers

June 13, 2014
EricM
All stock 400 engines used a 168 tooth flex palate with an external balance weight welded on it. Part number 91048360 would be the flex plate for your 400 engine.
1 answers

Do I need a internal or external balanced flexplate for 78 350 engine.

iceman
metairie, La.
April 13, 2011

Do I need a internal or external balanced flexplate for 78 350 engine.

Answers

April 15, 2011
Jason
For a stock GM crank you will want a internaly balanced part
Page 1 of 1
